85MM 4 IN 1 Gauge Fuel Level Oil Pressure BAR Water Temp ?? Volt With Sensor
Product Description
Specification
Product Name | 85MM 4 IN 1 Gauge Fuel Level Oil Pressure BAR Water Temp ?? Volt With Sensor |
Size | 85mm |
Backlight | Red |
Application | Boat Marine Car RV Truck |
Voltage | 12V/24V |
Application | Universal |
Warranty | 1 year |
Protection Range | IP67 |
Feature | Excellent water-proof design |

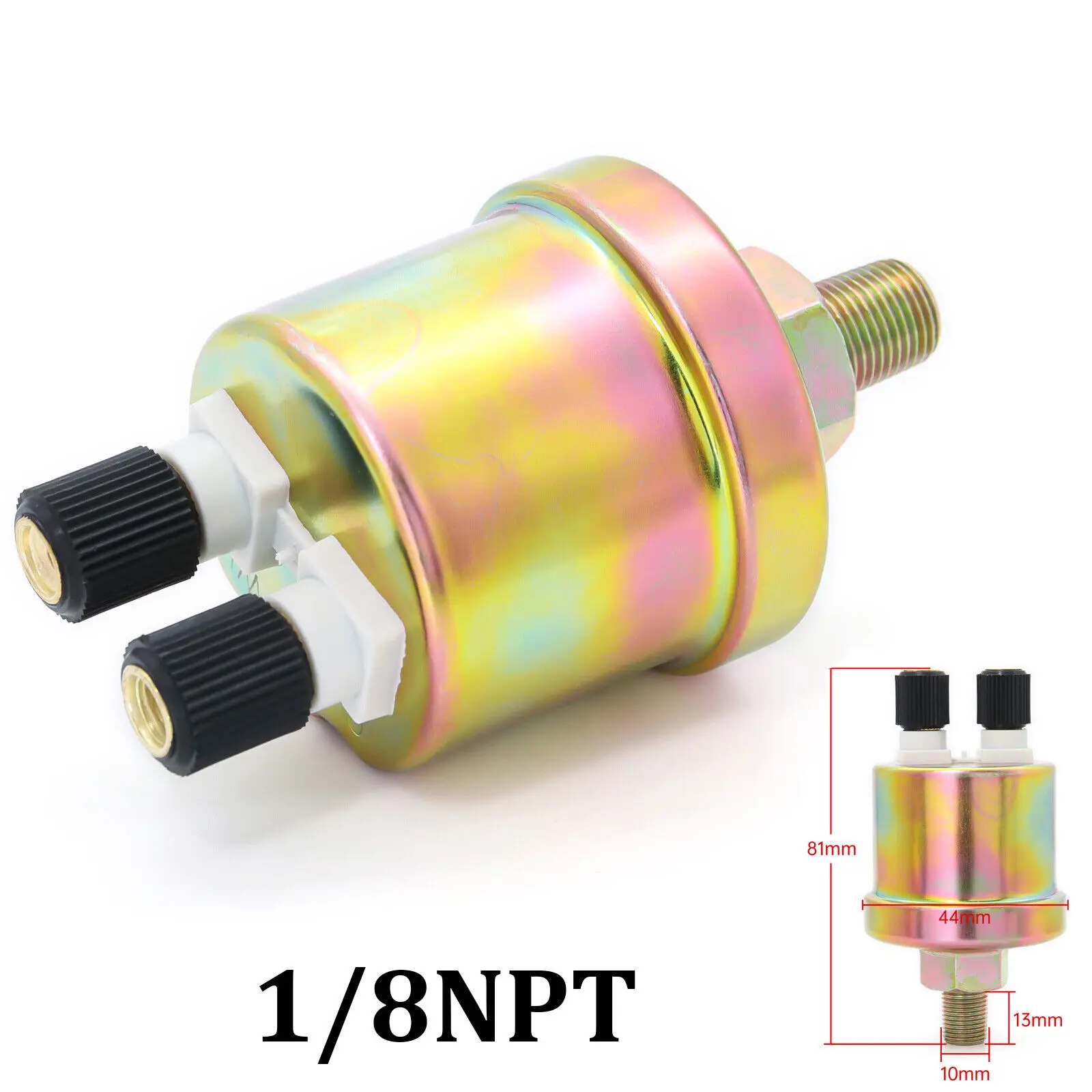

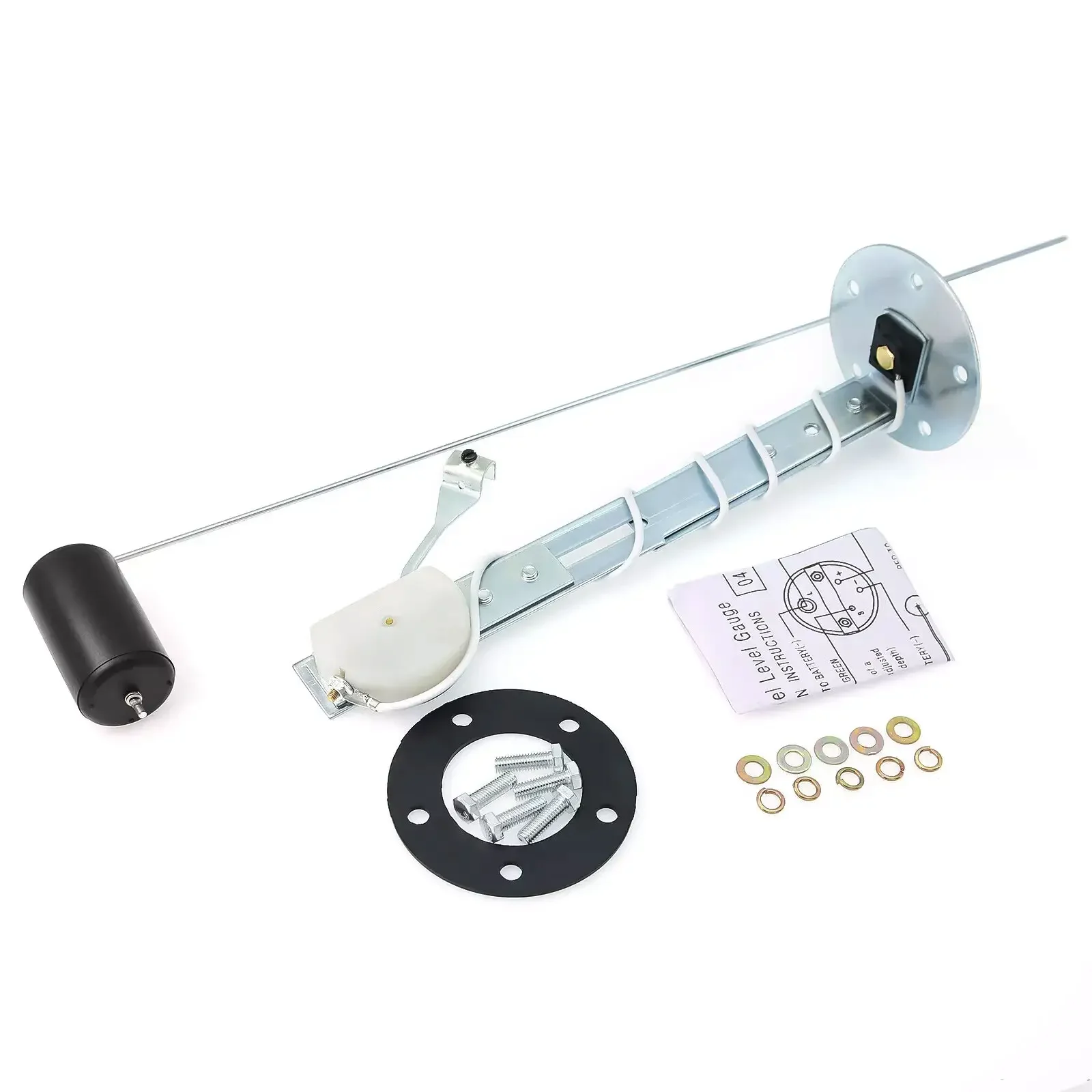

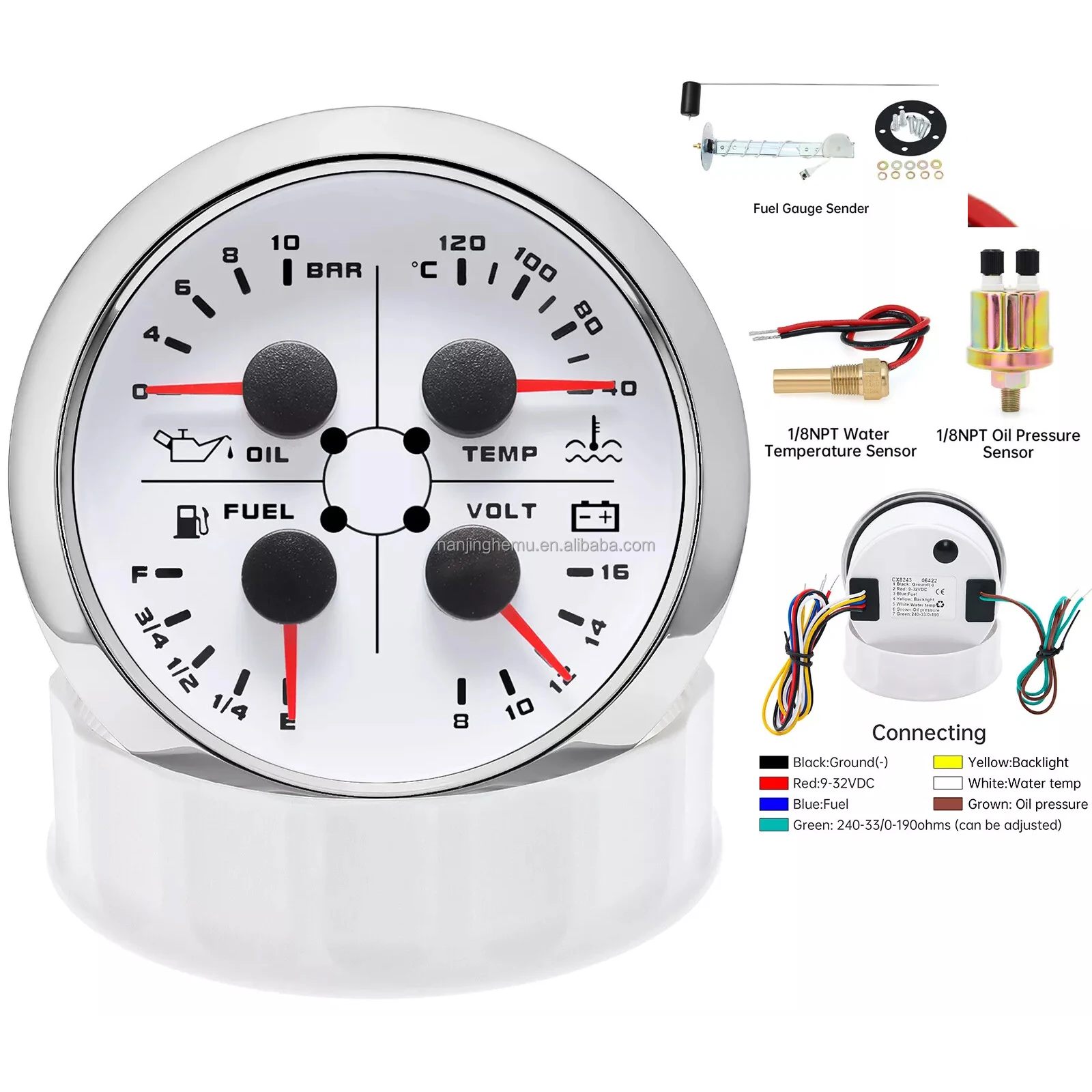

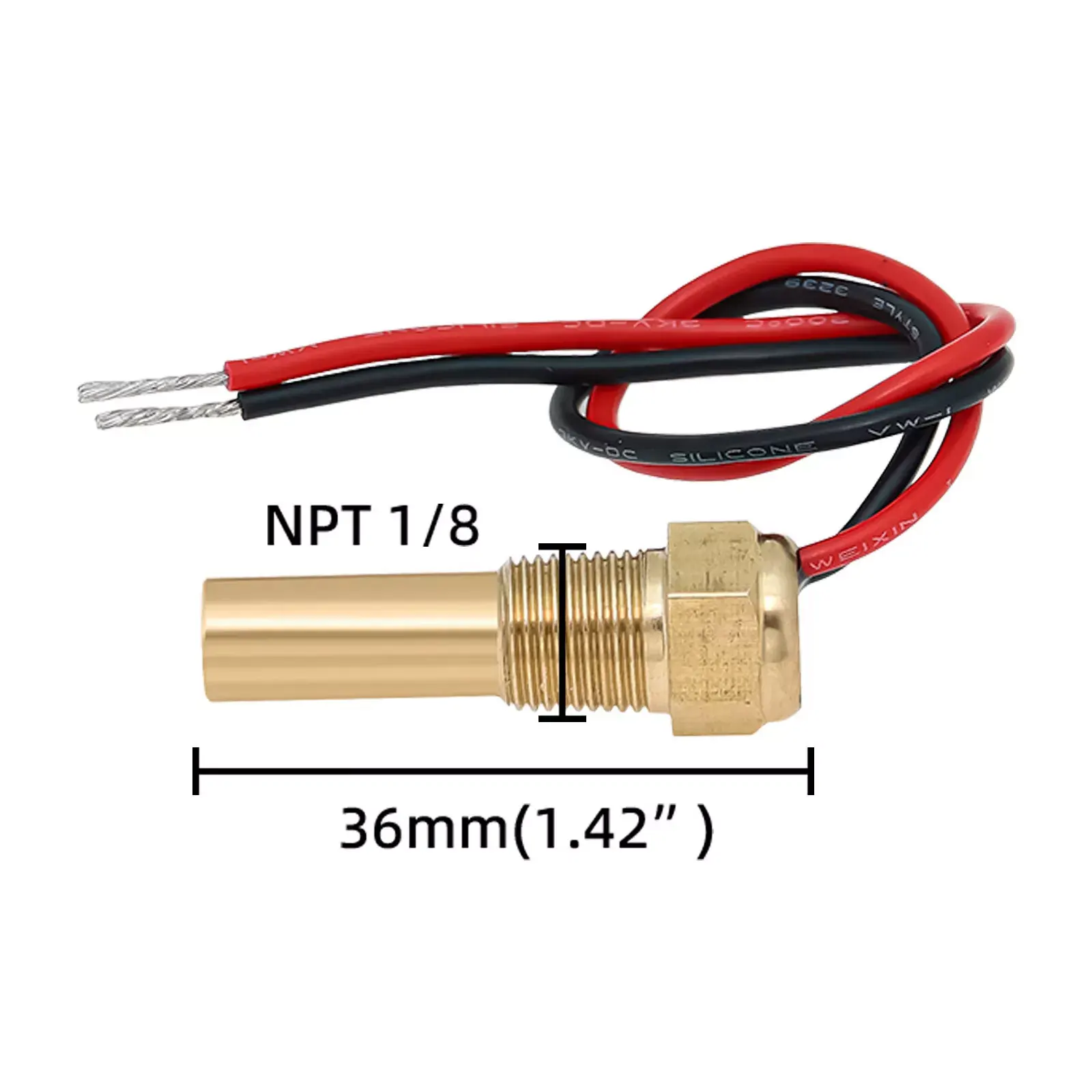

4 In 1 Gauge ConnectionBlack:Ground(-)Red: 9-32VDC(+)Blue:FuelYellow:BacklightWhite:Water tempGrown:Oil pressureGreen:Signal parameters(Can be adjusted 240-33ohms or 0-190ohms)Default input signal is 0~190ohm.when 7-Green connect to Ground.input signal change to 240~33ohm;Features:The world's newest 4 in 1 multifunction gauge.Convenient Installation by multi-plug socket connecting way.The gauge has the advantages of high precision. quick location confirmation and short start up time.Most importantly. the gauge is easy to setup. and can be used in all vehicles. boats and off-road vehiclesTechnical Data:Fixing dimension: 85mVolt GaugeMeasuring Range: 8 – 16 (VFuel Level GaugeMeasuring Range: Empty – FullResistance:240-33ohms. empty-full; (The signal can be adjusted)With Fuel SendeWater Temperature GaugeMeasuring Range: 40-120 ?? With Water Temperature Sensor 1/8NPOil Pressure GaugeMeasuring Range: 0-10Bar With Oil Pressure Sensor 1/8NPT Input Signal:10-184ohms for 0-10Bar oil pressure meter;0-190ohms for fuel level meter;(Default 240-33ohms. can adjust to 0-190ohms)8-16V voltage meter;Input Signal 320-22ohms for water temperature meterRed backlightProtection grade is IP67. the whole body is completely waterproof;Excellent antifogging function;316 Stainless steel bezel with curved glass;Convenient Installation by multi-plug socket connecting way;Accessories: matched with connectors. Installation Instruction Package Included:1 x 85mm 4 in 1 Multifunctional Gauge1 x Fuel level sending units1 x Water Temperature Sensor (Thread Size: 1/8 NPT)1 x Oil Pressure Sensor (Thread Size: 1/8 NPT)1 x Wire Cable1 x Installation Instruction
