Description

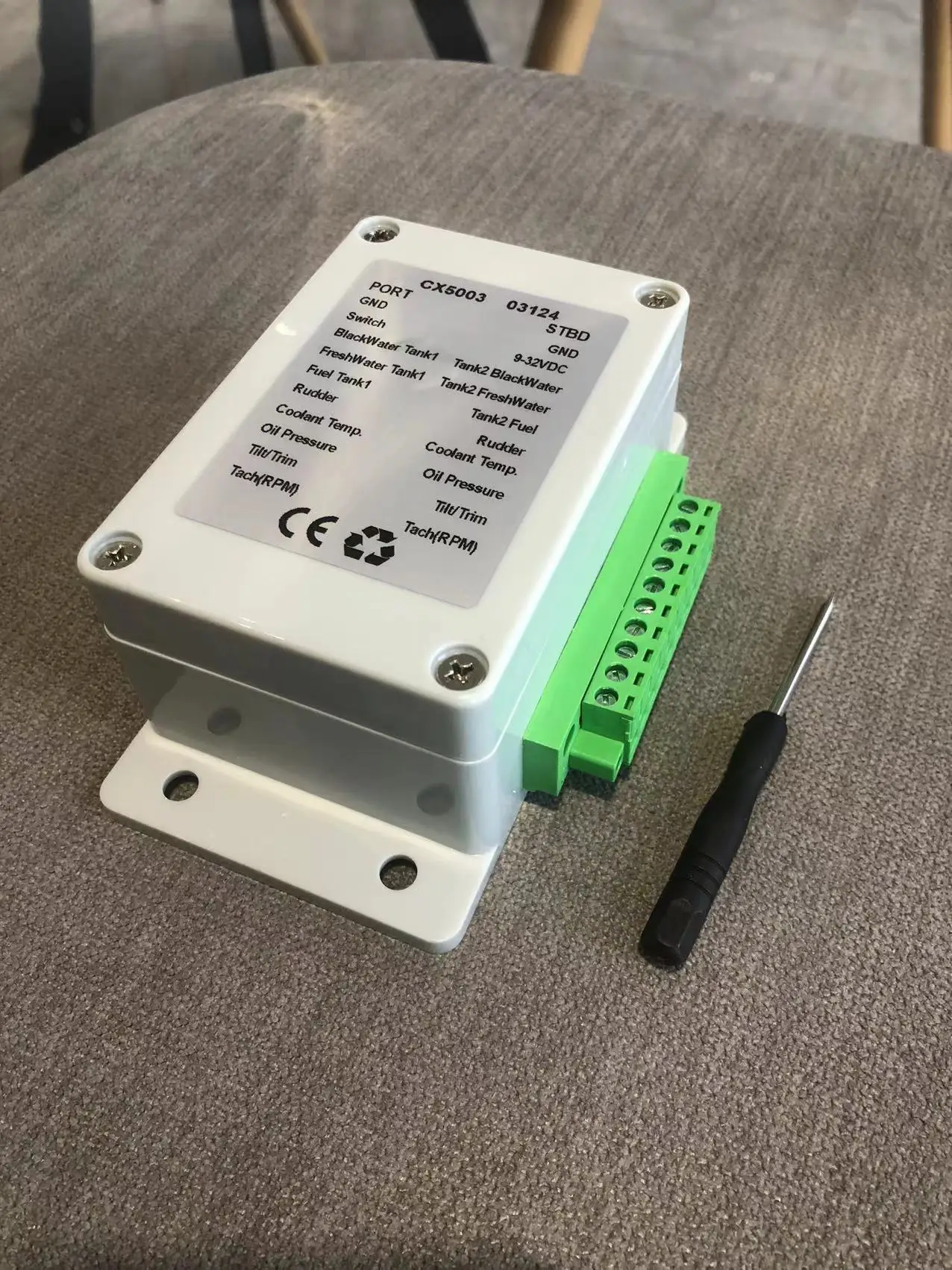

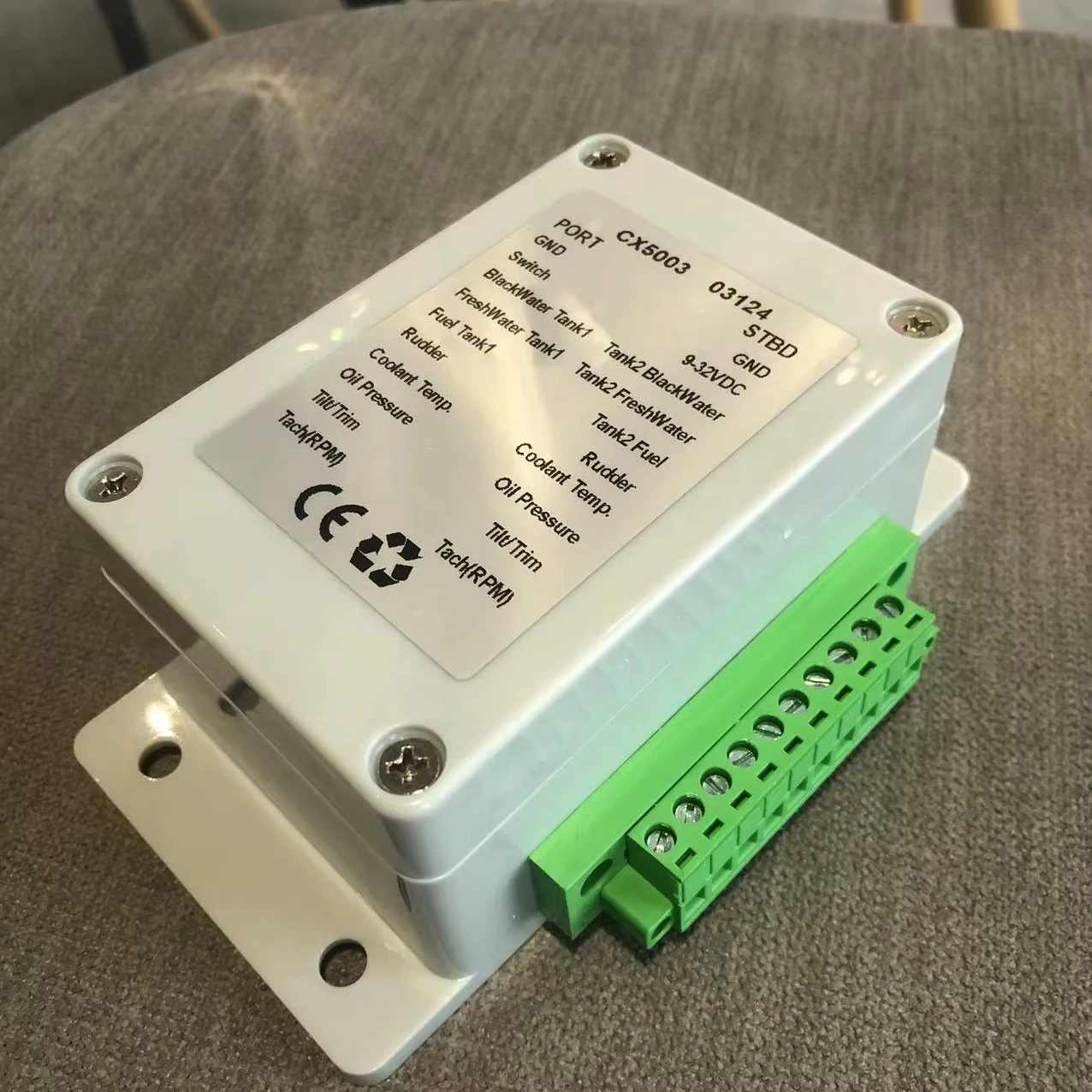

Dual Channel NMEA2000 Converter /N2K Converter 0-190 Ohm to 18 Sensors W/ Cable
Product Description
Specification
item | Dual Channel NMEA2000 Converter /N2K Converter 0-190 Ohm to 18 Sensors W/ Cable |
OE NO. | 85mmoil pressure gauges |
Used To | Car. Boat. Yacht. Motorcycle |
Voltage | 9-32V |
Protection Range | IP67 |
Warranty | 1 YEAR |

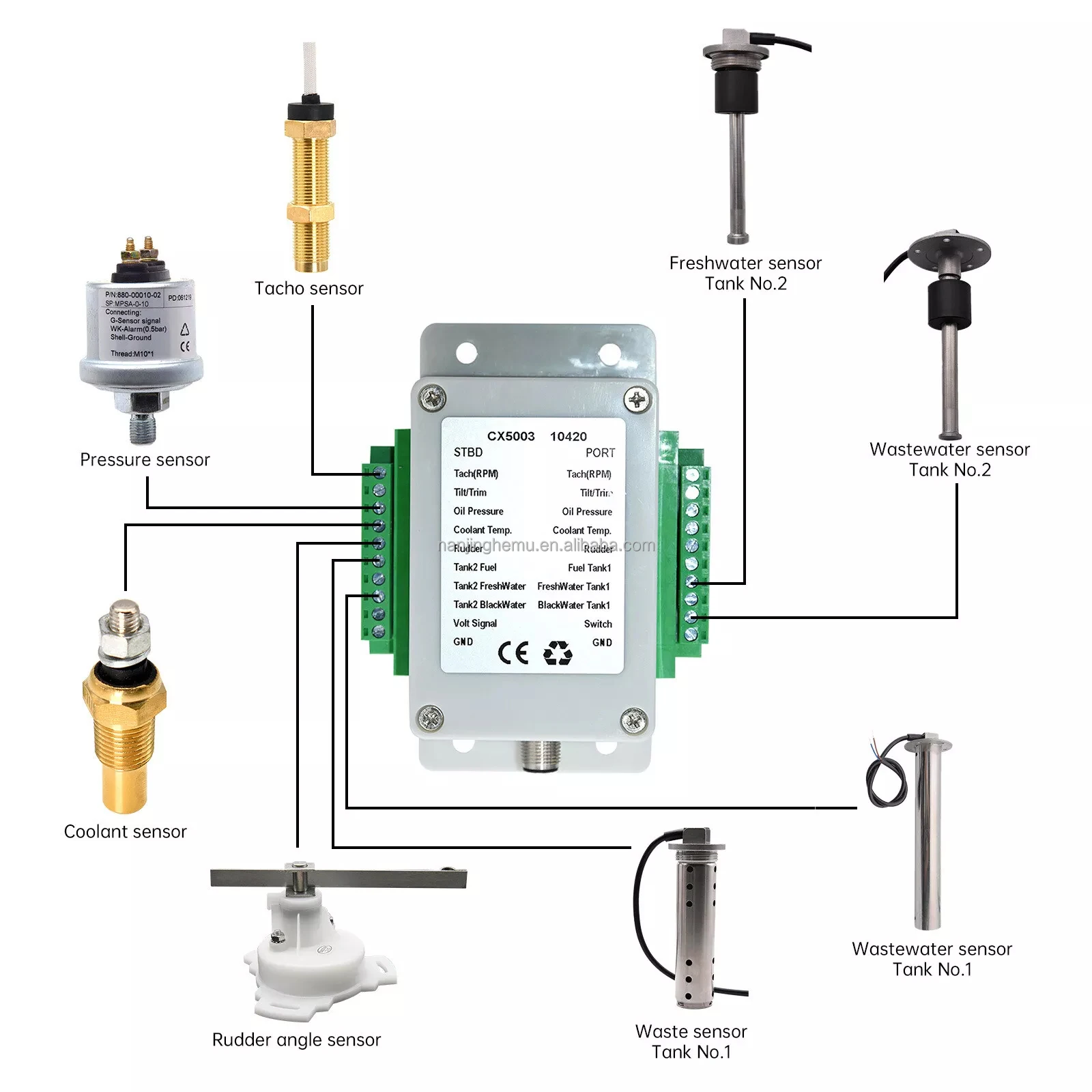

Features:Acquisition of sensor parameters and convert to NME A2000 parametersUp to 18 sensors can be collectedThis unit turns your engine sensors into a NMEA2000 input device.The unit will work with single or twin engines.The unit will work with Euro or US standard Ohms inputs and converts them into standard NMEA sentences for each sensor.The unit will work with a single sensor or with a full set of sensors or any number between.The wiring from your sensors connects to the converter and the converter outputs to the NMEA networrk in standard NMEA format.The unit is highly water resistant and can be mounted in a sheltered position close to the engine or close to your helm.The unit has a single output so only needs a single drop cable to connect it to your NMEA backbone – no wiring loom. On many boats it will be cheaper to install one of these units than to fit a new wiring harness.The data from the unit can be used by NMEA data screens or NMEA gauges (see our other listings).There is no pre-installation work to do. take the wiring from your standard sensors run it to the unit and connect up. Take a drop cable from the unit to the backbone – job done.There is no software set up required (it is not possible to interact with the software in the unit).Balance between Tacho input and the device output is done through dim switches and is a one off adjustment.Tachometer input can be any flat pulse provider ( alternator.hall efect sensor.or other)The unit can be USA or Euro standard but can not cope with a mixture of inputs.The unit will need a single 12V input from your boat's system to display voltage. As with all NMEA systems it is 12V only. If your boat is 24V you will need traditional outputs to display voltage.The unit will consume about 400 miliamps from your NMEA system. The unit consumption is constant and consistant regardless of engine number or sensor input number.Sensor Parameter(customizable)Speed ratio adjustable range is 1~200Engine tilt/trim 0~1 90ohmOil pressure 10~184ohm(0~10bar)Temperature 301~22ohm(40~ 120'C)Rudder 0~1 90ohmFuel level 0~ 190ohmFreshwater level 0~1 90ohmWastewater level 0~ 1 90ohmEnvironmentalOperating Voltage 9 to 32 Volts(DC)Power Consumption <120mAOperating Temperature -30~75degreesStorage Temperature -40~ 85degreesDegree of Protection Ip67Connection1 . Connect to“Micro-C" NMEA 2000 interface .2 . Connect the corresponding interface- according to the functional requirementsPackage Included: (as the picture shows)1 x converter1 x connector1 x 4m cable
Shipping
Package: Using standard export neutral packaging.Shipping : 1. By Couriers: DHL. UPS. FEDEX. TNT. EMS etc.2. By Air: Delivery from the Shanghai airport to customers’ destination city airport3. By Sea: Delivery from the Shanghai sea port
FAQ

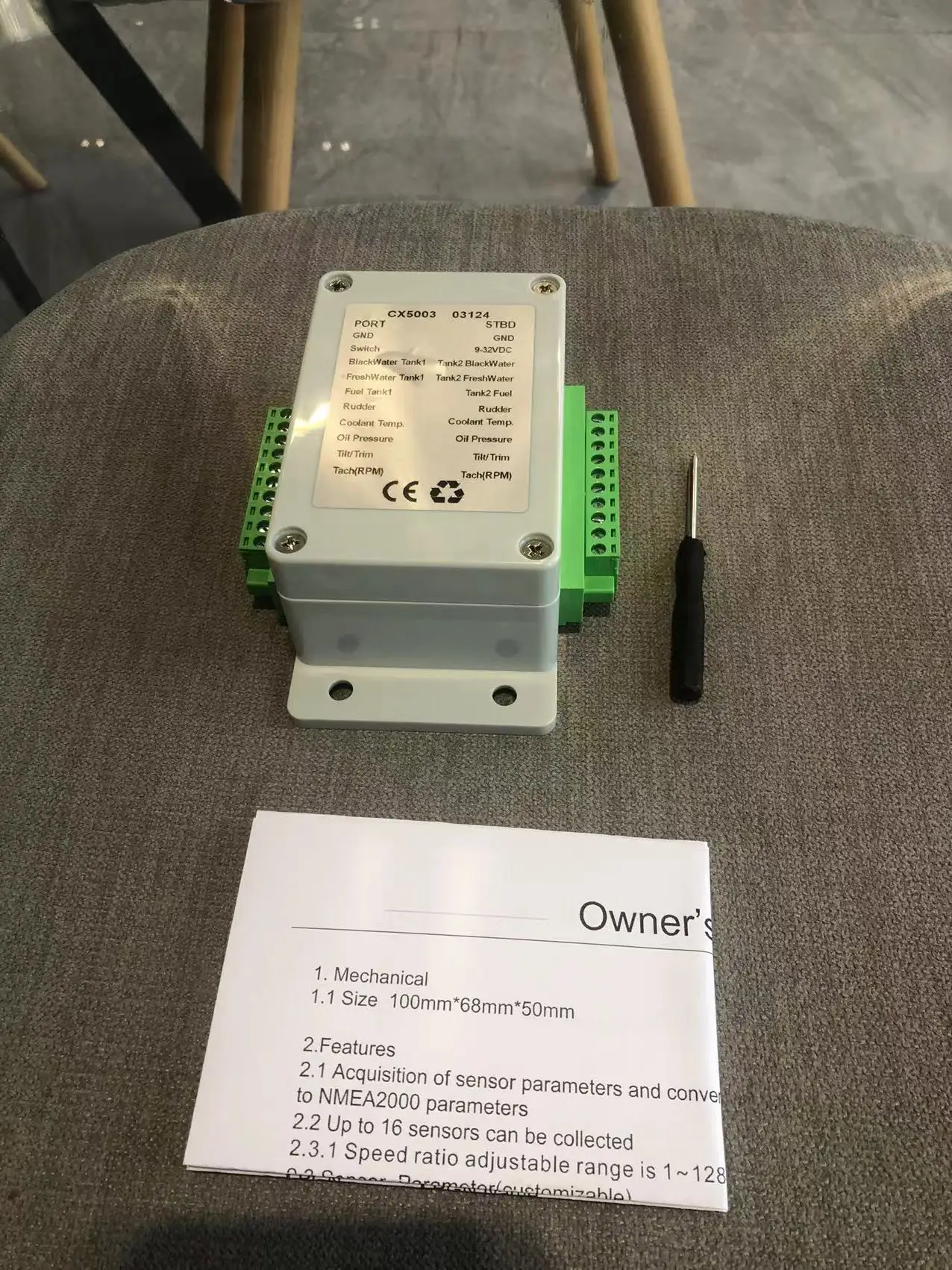

Q:1. Can I have a sample order?A: Yes. we welcome sample order to test and check the quality. Mixed samples are acceptable.Q:2. What about the lead time?A: 3-5 days for samples.Q:3. How do you ship the goods and how long does it take arrive?A: we often will ship by FEDEX. DHL.EMS.TNT and UPS etc. approximately 3-5 days. and will be different according to the destination. Airline and sea shipping is also optional.Q:4.How to proceed an order?A:Initially. let us know your requirements or application. Besides. We quote according to your requirements or our suggestions.Thirdly. customers confirms the samples and places deposit for formal order. Finally. We arrange the production.Q:5. How can I pay for the orders?A: Regard to payment.we can accept T/T.Western Union. Alipay.Q:6. Do you offer guarantee for the products?A: Yes. we offer 12 months for our products.Q:7.Do you test all your goods before delivery? A:Yes. we have 100% test before delivery.Q:8.Is there instruction installation?A: Yes. each gauge comes with instruction installation in the package.Q:9. How to contact us?A:Send your inquiry details in the below and click the "send"now.
If you have more questions. just contact us soon
