Description

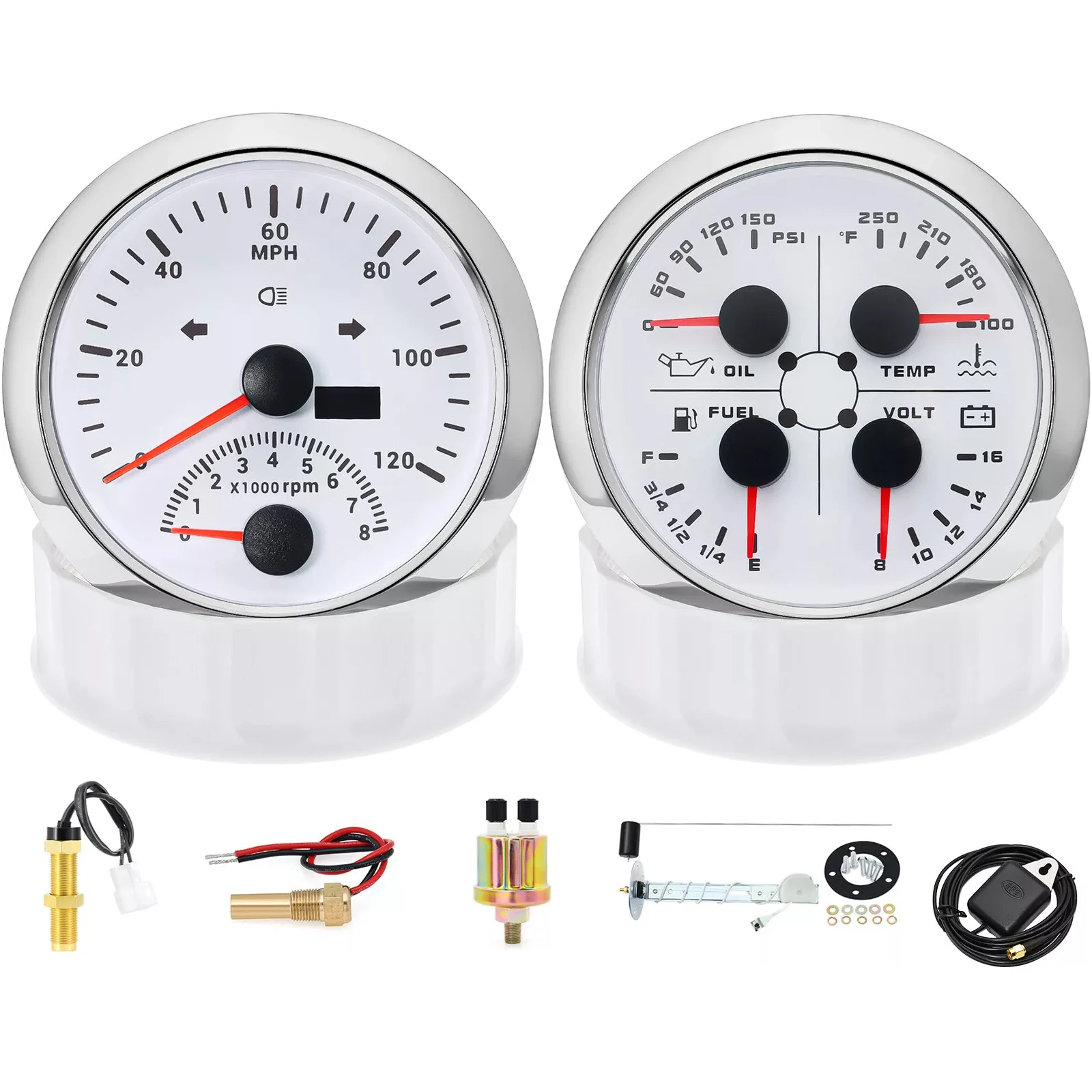

2 Gauge Set 85mm White GPS Speedometer With Tachometer 8000rpm & 85mm 4 In 1 Gauge Water Temp Fuel Level Oil Pressure Voltage
Product Description
Specification
Product Name | 2 Gauge Set 85mm White GPS Speedometer With Tachometer 8000rpm & 85mm 4 In 1 Gauge Water Temp Fuel Level Oil Pressure Voltage |
Size | 85mm |
Backlight | Red |
Application | Boat Marine Car RV Truck |
Voltage | 12V/24V |
Application | Universal |
Warranty | 1 year |
Protection Range | IP67 |
Feature | Excellent water-proof design |

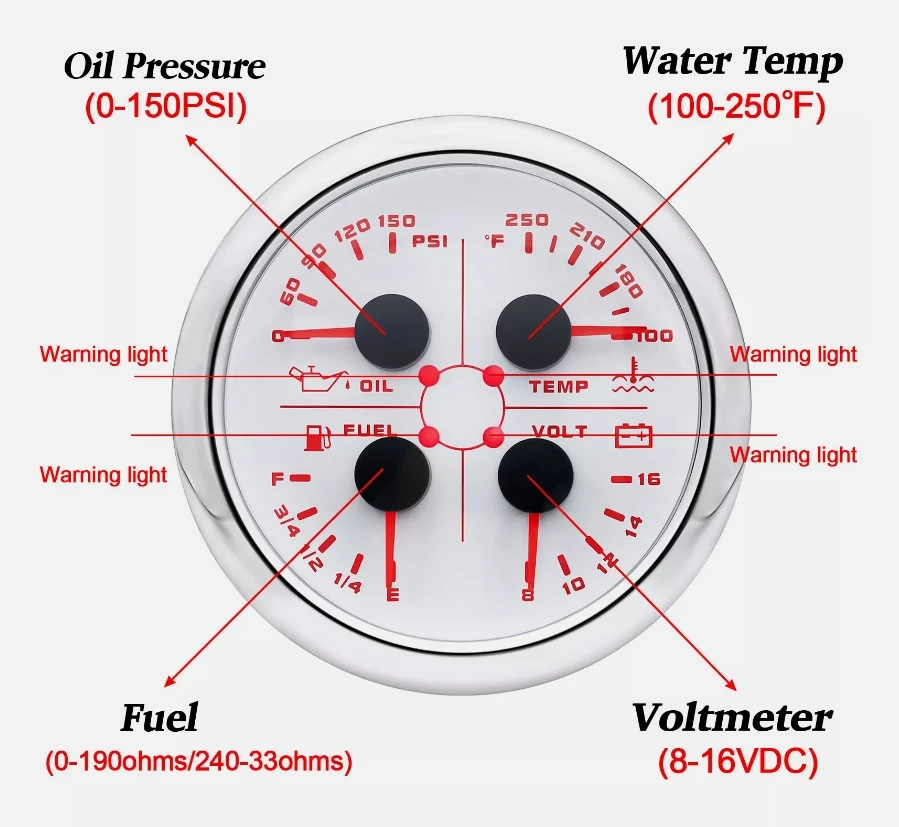

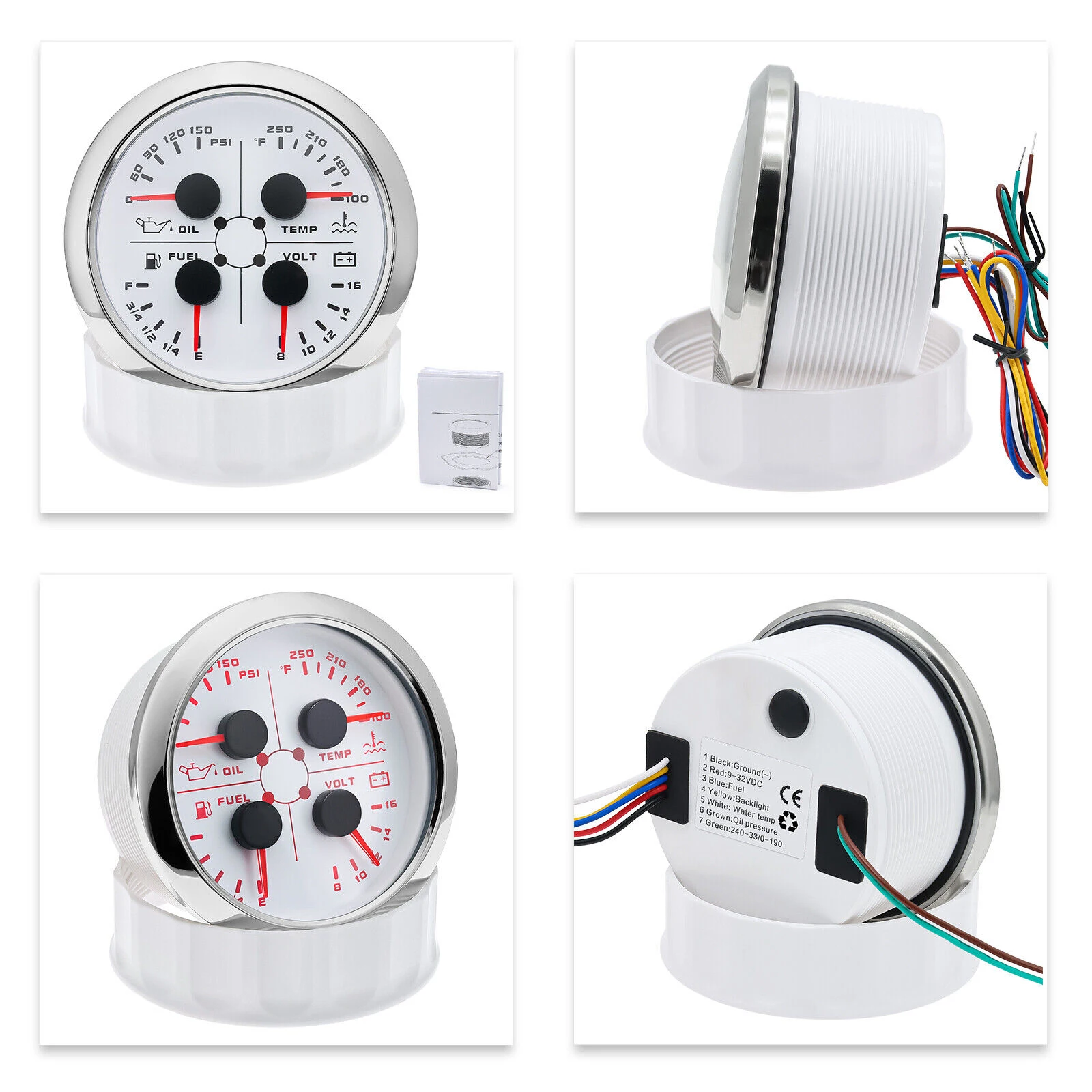

Features:The world's newest 4 in 1 multifunction gauge.Convenient Installation by multi-plug socket connecting way.The gauge has the advantages of high precision. quick location confirmation and short start up time.Most importantly. the gauge is easy to setup. and can be used in all vehicles. boats and off-road vehicles.GPS Speedometer Specifications:Application: Universal fit for Motorcycle/ Boat/Truck/Bus/CarElectronic Speedometer (stepper motor)No Mechanic Sensor. get speed signal from GPSSpeed ≠0 and show accurate speed in tunnel with the help of accelerometerTotal Mileage AdjustableGPS Blind Area Odometer CompensationOverSpeed Buzzer Alarm (Value Adjustable)Indication Light (Left. Right and High BeamInstallation Diameter: 85mm (3 3/8")Speed Range:0~120MPHRPM Range:0~8000RPMMileage Range:0-99999.9milesWorking Voltage:12V/24VWorking temperatures:- 40 to 85°CProtection rank:IP67 WaterproofReverse polarity protection and anti-fogging performanceMulfifunctional gauge Technical Data:Fixing dimension:85mmIndicating Range:Oil press. meter: 0-150psi;Water temp. meter: 100-250° FFuel level meter: 240-33ohms. empty-full; (The signal can be adjusted)Voltmeter:8-16VWorking Voltage: 12VBacklight: Red Input Signal:10-184ohms for 0-150PSI oil pressure meter;240-33ohms for fuel level meter;(Default 240-33ohms. can adjust to 0-190ohms)8-16V voltage meter;Input Signal 287.4-22.4ohms for water temperature meterRed backlightProtection grade is IP67. the whole body is completely waterproof;Excellent antifogging function;316 Stainless steel bezel with curved glass;Convenient Installation by multi-plug socket connecting way;Accessories: matched with connectors. Installation Instruction Tacho Sensor Specification:Please confirm your sensor size before buying.[1].Name: Tachometer Gauge Sensor[2] Use for Gear Rotation Speed Measurement[3] Combining The Advantages of Stable Signal. Wide Range of Operating Temperature. Small Size. Simple Assembly. Etc[5] Output Signal: Sine Wave[6] Operating Temperature:-40 to 85??[7] Inductance Distance: Less Than 1mm[8] Tooth Module: 2~6[9] Connecting Way: Two Wires Connecting[10] Protection Rank:Waterproof IP67Sensor size:M18: 80mm*18mm(L*W) Package Included:1 x 85mm 4 in 1 Multifunctional Gauge1 x 85mm GPS Speedometer1 x M16 Tachometer1 x 1/8NPT Temp sensor1 x 1/8NPT Pressure sensor1 x Cable1 x Installation Instruction
Shipping
Package: Using standard export neutral packaging.Shipping : 1. By Couriers: DHL. UPS. FEDEX. TNT. EMS etc.2. By Air: Delivery from the Shanghai airport to customers’ destination city airport3. By Sea: Delivery from the Shanghai sea port
FAQ
Q:1. Can I have a sample order?A: Yes. we welcome sample order to test and check the quality. Mixed samples are acceptable.Q:2. What about the lead time?A: 3-5 days for samples.Q:3. How do you ship the goods and how long does it take arrive?A: we often will ship by FEDEX. DHL.EMS.TNT and UPS etc. approximately 3-5 days. and will be different according to the destination. Airline and sea shipping is also optional.Q:4.How to proceed an order?A:Initially. let us know your requirements or application. Besides. We quote according to your requirements or our suggestions.Thirdly. customers confirms the samples and places deposit for formal order. Finally. We arrange the production.Q:5. How can I pay for the orders?A: Regard to payment.we can accept T/T.Western Union. Alipay.Q:6. Do you offer guarantee for the products?A: Yes. we offer 12 months for our products.Q:7.Do you test all your goods before delivery? A:Yes. we have 100% test before delivery.Q:8.Is there instruction installation?A: Yes. each gauge comes with instruction installation in the package.Q:9. How to contact us?A:Send your inquiry details in the below and click the "send"now.
