85mm 6In 1 Multi-function Gauge Car Marine GPS Speedometer Tacho Oil Temp Press

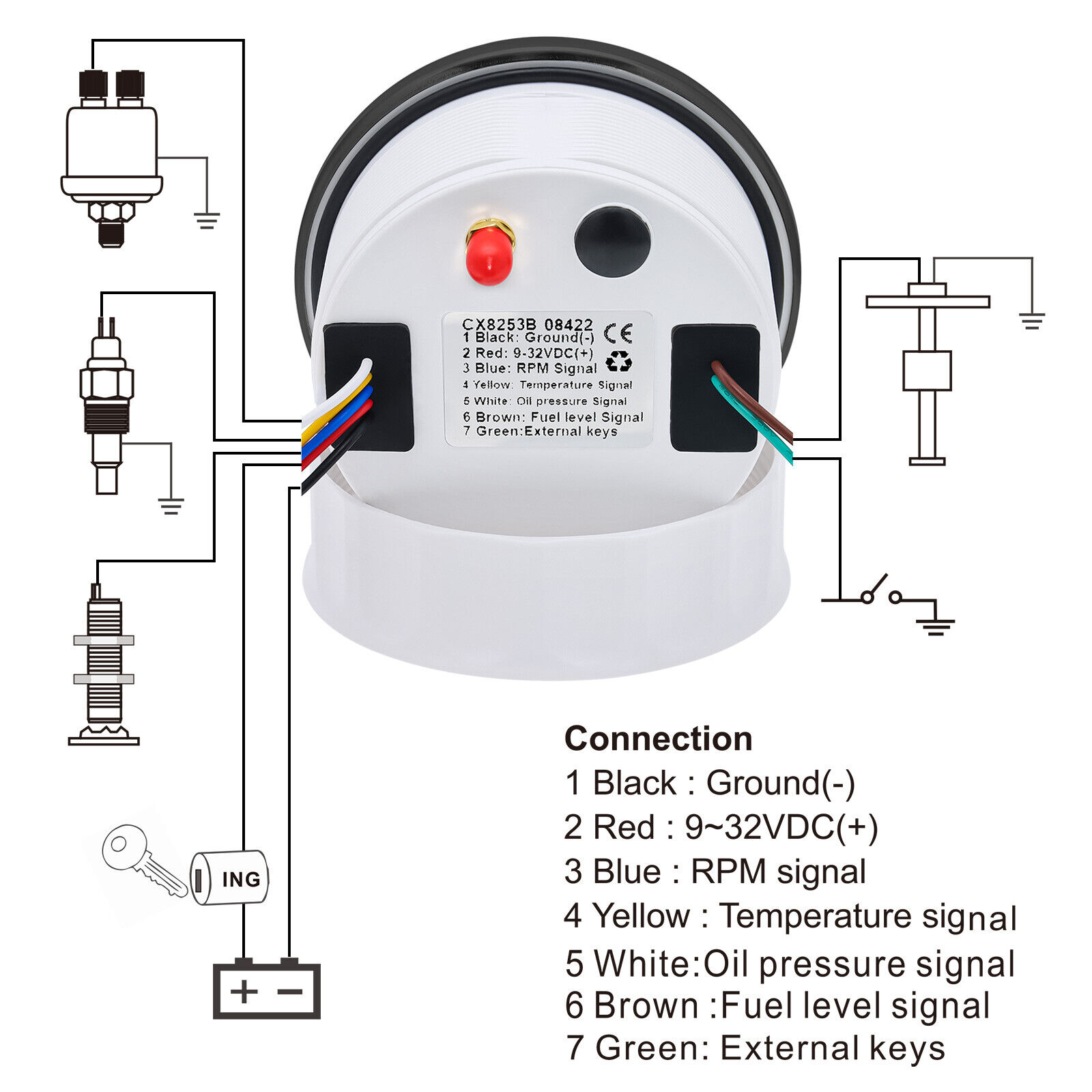

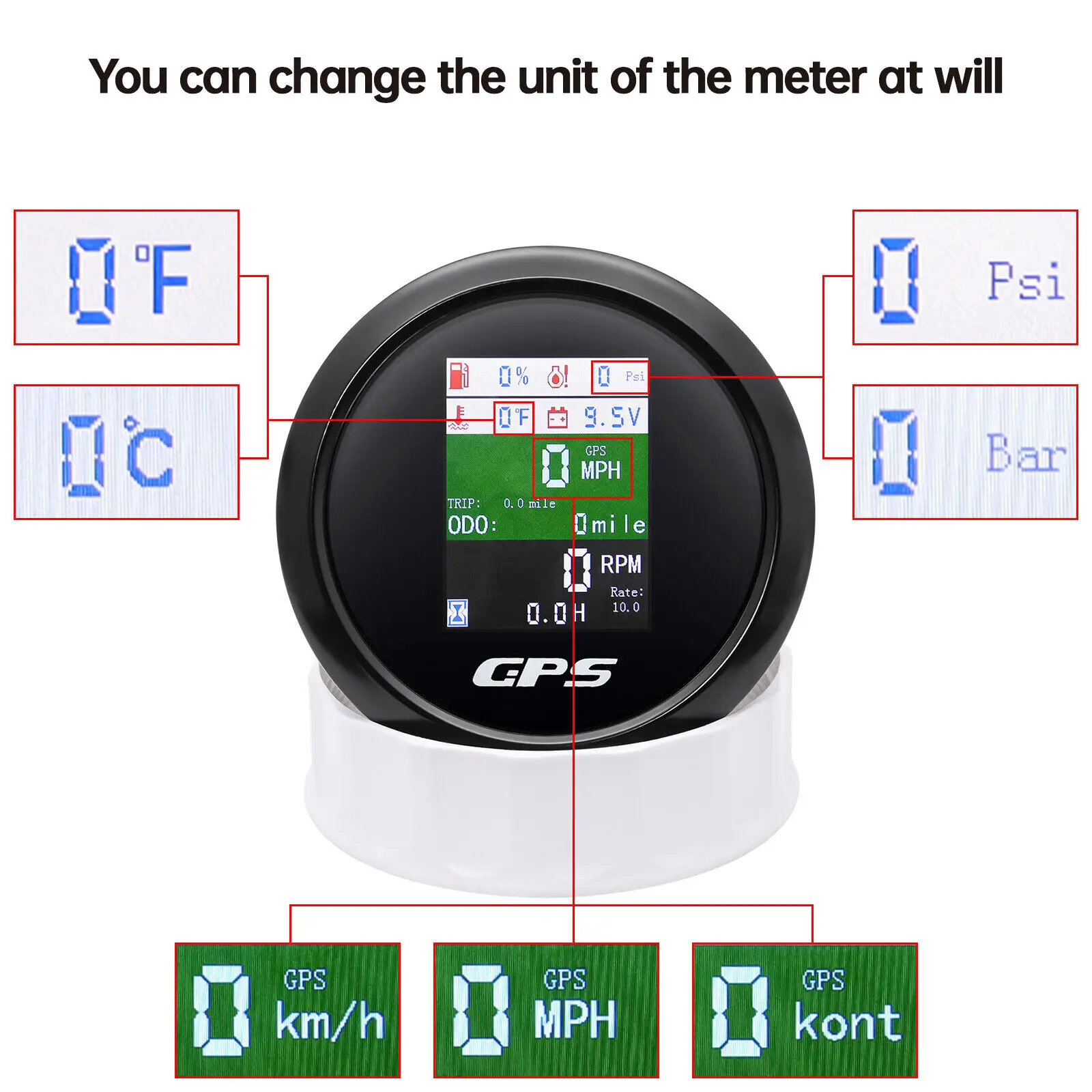

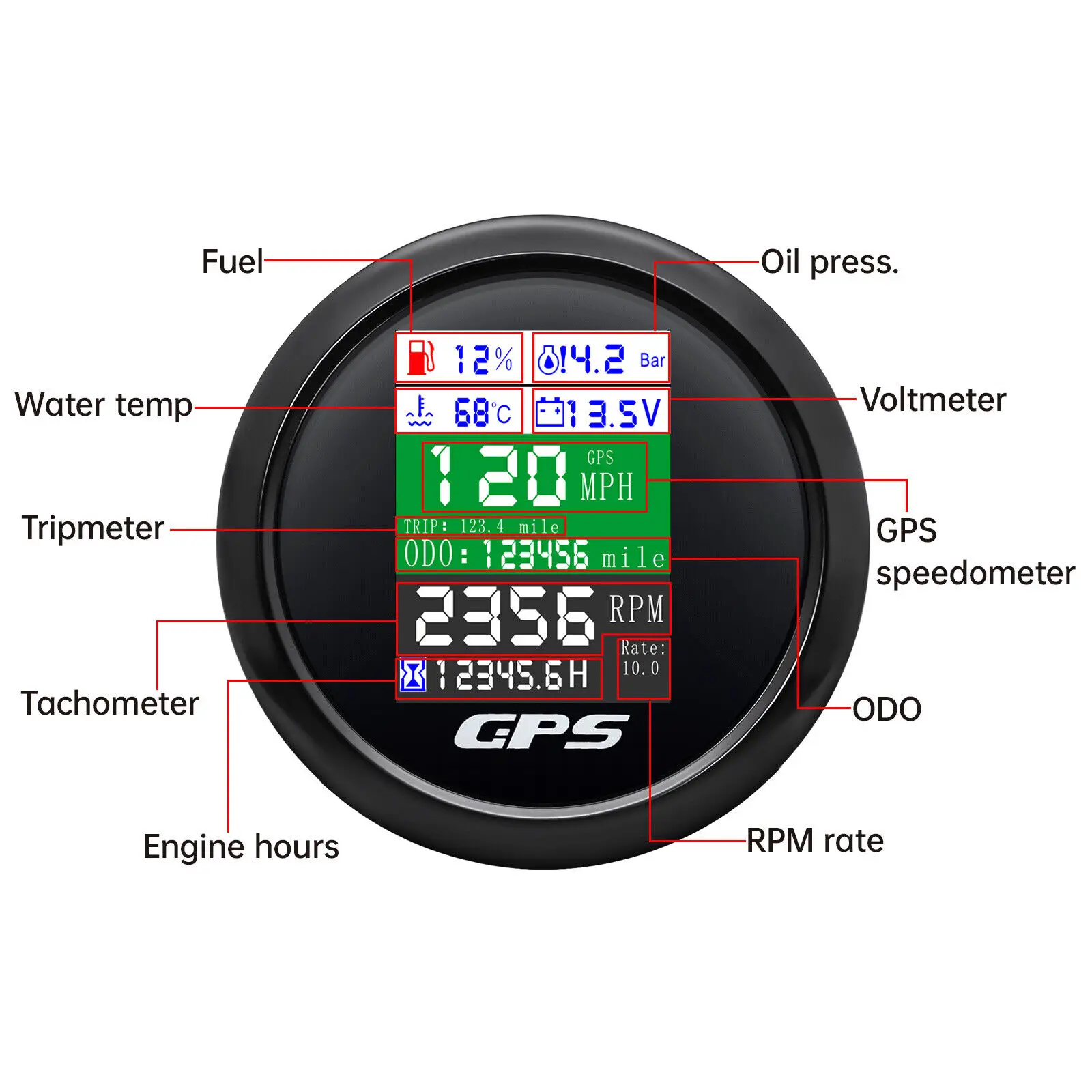

Features:- GPS SOG: Speed Over Ground: 0-600km/h- ODO: odometer: 0-999999km (can be adjusted by the back button.)- TRIP: 0-999.9km (Return Zero When off electricity)- COG: Course Over Ground- Tachometer: 0-9999RPM- Speed Ratio: 1.0-360.0; Step Value: 0.1- Oil Pressure: 0-10 bar/0-145psi (Pressure sensor: 10-184ohm)(After power on. press the back button to adjust unit. if the oil pressure unit is "psi". the temperature unit will be "?H".)- Water Temperature: 40-120??/100-250?H (Temperature sensor: 301-22ohm)(The water temperature is displayed by default. If you need oil temperature. please contact us to customize.)- Voltmeter: 9-32V- Fuel Level: 0-100% (Press the back button to adjust the level signal: 0-190Ω/240-33Ω available.)- Total Engine Hours: 0.0-99999.9H(Press the back button to adjust.)- Sensor Fault Alarm(Chinese and English can be switched)- Degree of Protection: IP67- Backlight: TFT Screen* Sensor are not provided with this gauge.* Plz. order the sensor separately if you need it. Setting:- Keep on pressing the back button for 3 seconds. and then enter into setting mode. leaving button more than 3 seconds. it will be out of setting mode.- The value will increase when you press the button. When you leave the button and then press it again. the value will decrease. The minimum step value is 0.1 and the adjustable range is 1.0-360.0.(tachometer setting)- When you get the required speed ratio value after adjustment. please leave the button. The tachometers will autoclave your setup after 3 seconds. If the setup doesn't meet your demand. please re-setup.- Must press the button first and power up. can select English or Chinese. Dimensions:- 85mm diameter (3-3/8")- 55mm Depth (2-3/4") Package Included(as picture):- 1X 6 in 1 Gauge- 1X Multi-plug socket- 1X GPS antenna- 1X Instruction Note:- Please make sure you can Installation.if you need help you can contact your local car repair workshop.Thank you!- Please allow a voltage error of 0.2V. thank you Wholesale and Drop shipping- For wholesale. we will offer the discount or free express shipping which only takes 3-7 days to arrive.- For drop shipping. We could send the goods to your customers directly and won't leave information about us if youd like to.
Product Description
Specification
item | 85MM GPS Speedometer Tachometer Voltage 9-32V Water Temp Fuel Level Oil Pressure 0-10Bar 6 in 1 Multi-functional Digital Gauge with alarm |
Used To | Car. Boat. Yacht. Motorcycle |
Voltage | 9-32V |
Protection Range | IP67 |
Warranty | 1 YEAR |
Shipping
Package: Using standard export neutral packaging.Shipping : 1. By Couriers: DHL. UPS. FEDEX. TNT. EMS etc.2. By Air: Delivery from the Shanghai airport to customers’ destination city airport3. By Sea: Delivery from the Shanghai sea port
FAQ
Q:1. Can I have a sample order?A: Yes. we welcome sample order to test and check the quality. Mixed samples are acceptable.Q:2. What about the lead time?A: 3-5 days for samples.Q:3. How do you ship the goods and how long does it take arrive?A: we often will ship by FEDEX. DHL.EMS.TNT and UPS etc. approximately 3-5 days. and will be different according to the destination. Airline and sea shipping is also optional.Q:4.How to proceed an order?A:Initially. let us know your requirements or application. Besides. We quote according to your requirements or our suggestions.Thirdly. customers confirms the samples and places deposit for formal order. Finally. We arrange the production.Q:5. How can I pay for the orders?A: Regard to payment.we can accept T/T.Western Union. Alipay.Q:6. Do you offer guarantee for the products?A: Yes. we offer 12 months for our products.Q:7.Do you test all your goods before delivery? A:Yes. we have 100% test before delivery.Q:8.Is there instruction installation?A: Yes. each gauge comes with instruction installation in the package.Q:9. How to contact us?A:Send your inquiry details in the below and click the "send"now.
If you have more questions. just contact us soon
