85mm 52mm 6 Gauge Kits Speedometer Tachometer Fuel Level Oil Pressure Water Temp Volt Gauge
Product Description

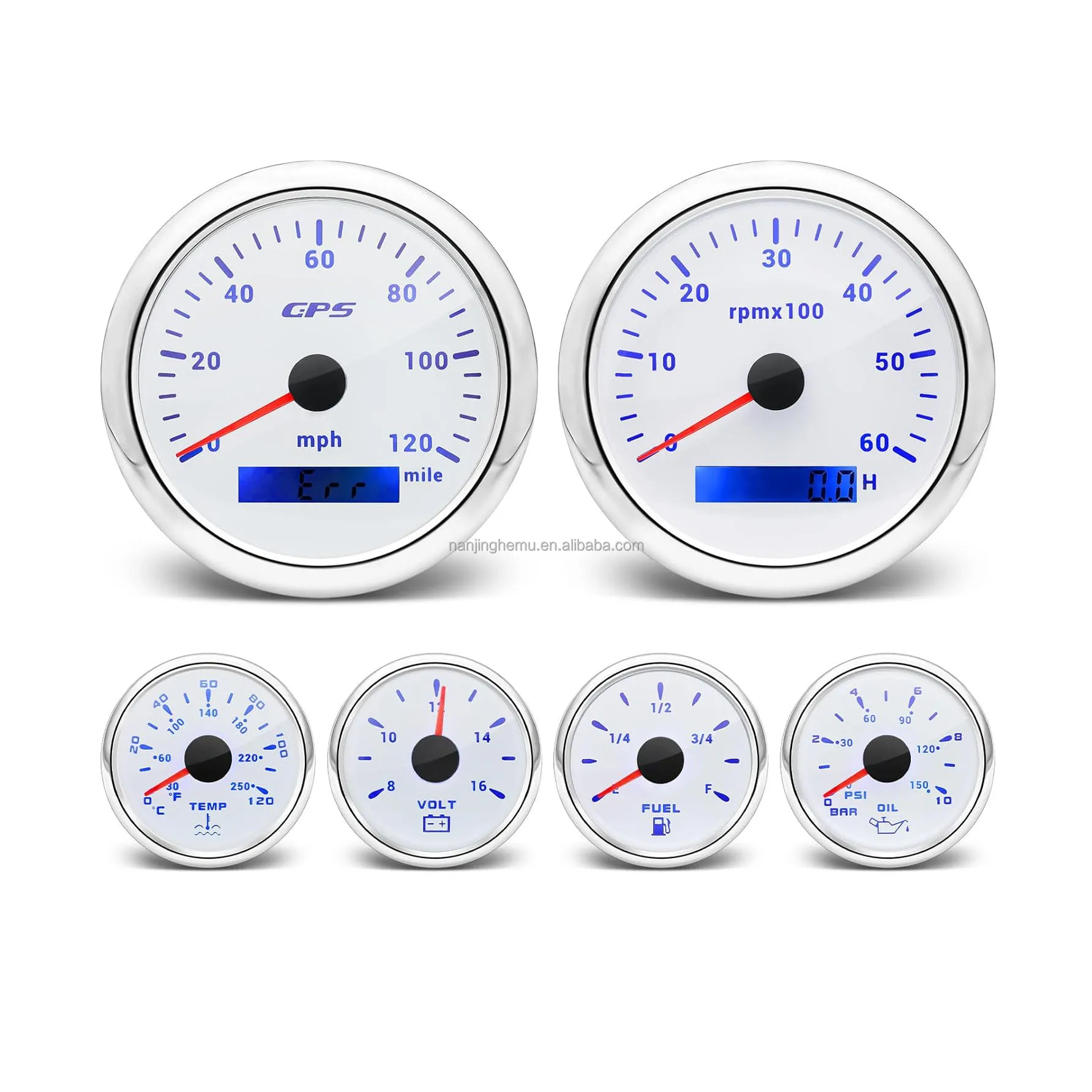

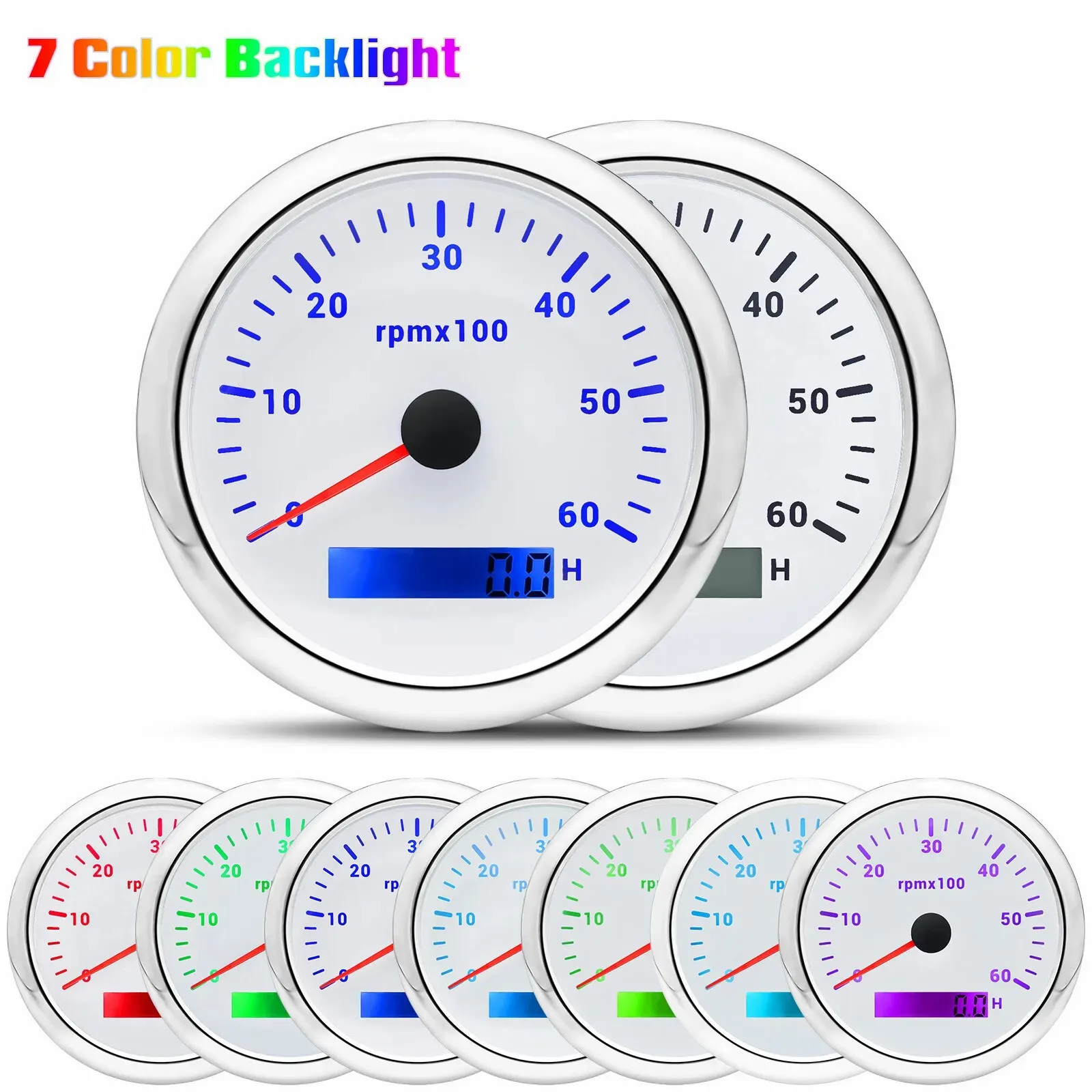

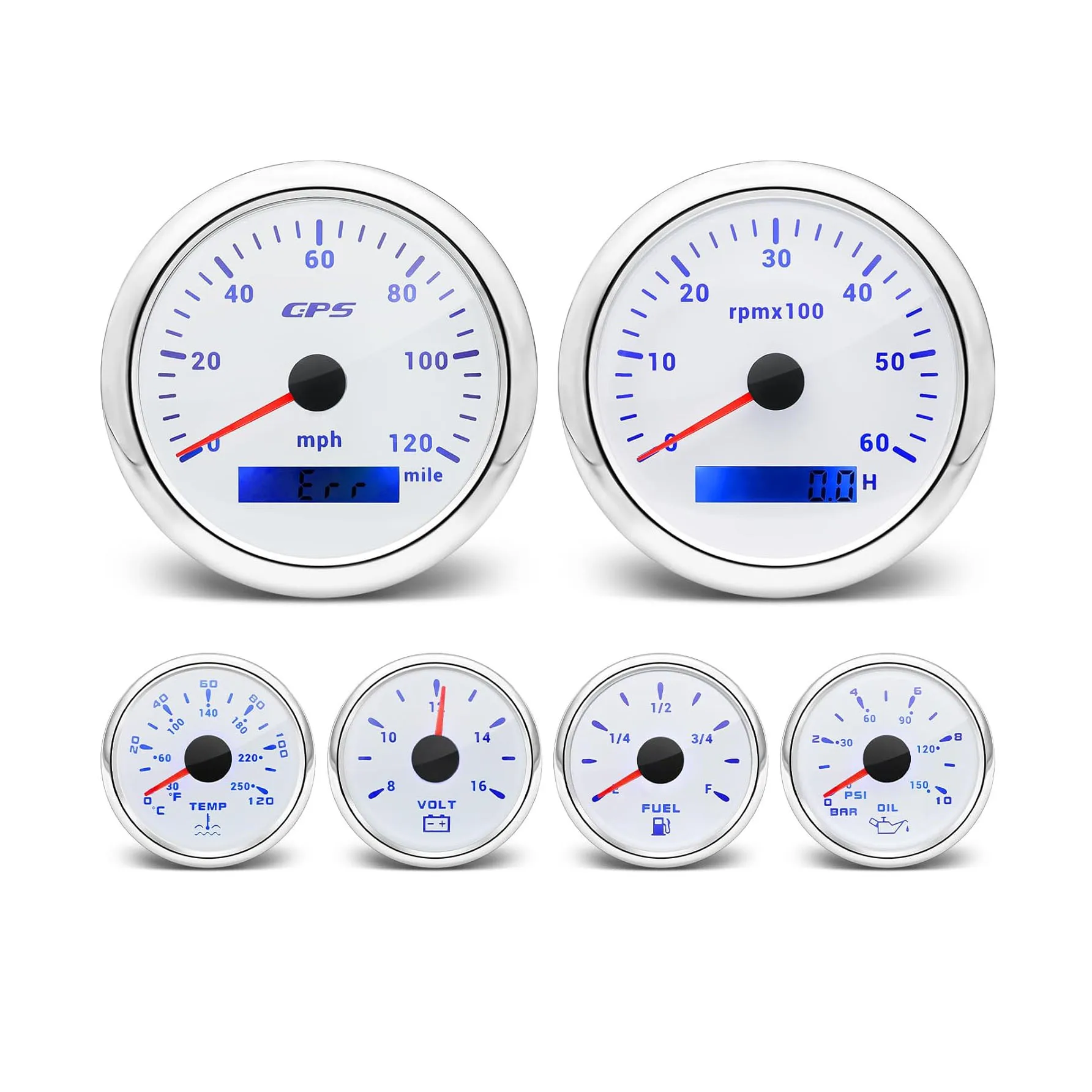

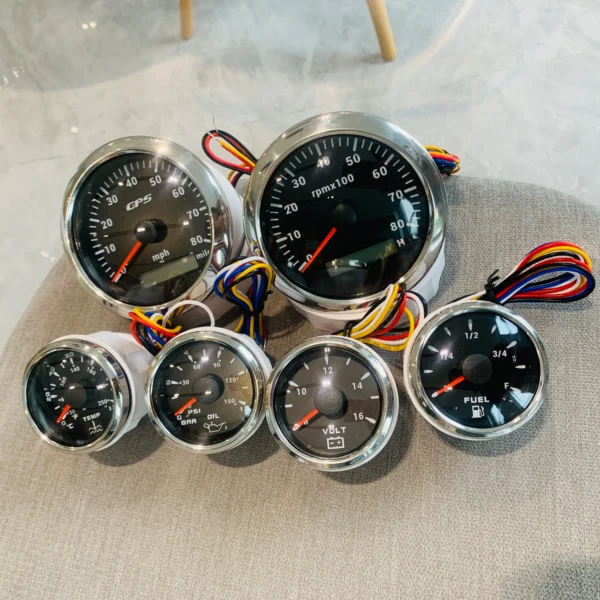

About this item6 Gauge Set- Includes GPS Speedometer. Tachometer. Fuel Gauge. Water Temperature. Volt and Oil Pressure Gauge. 7 color backlight : red??green??blue??yellow??olivine??orange??purple

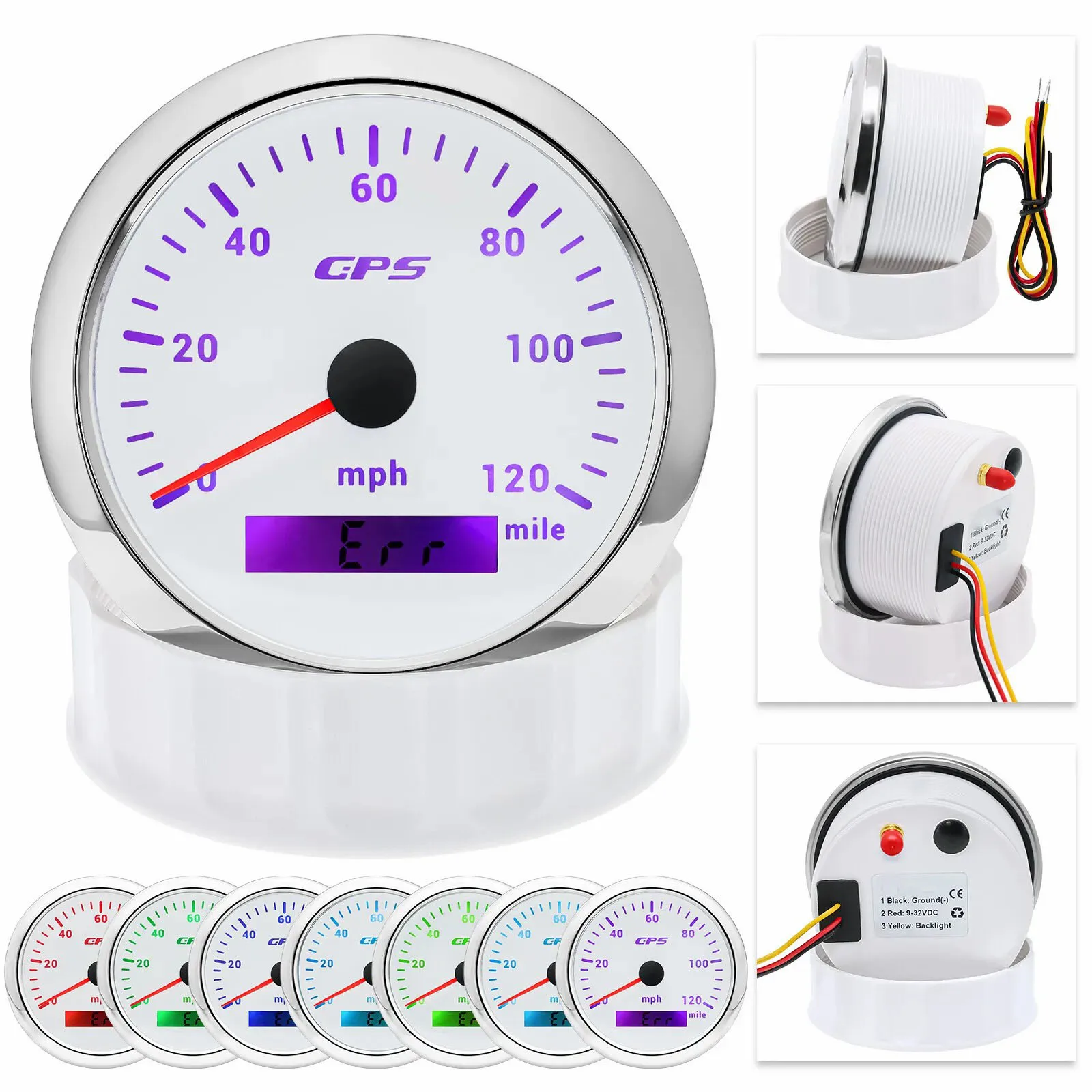

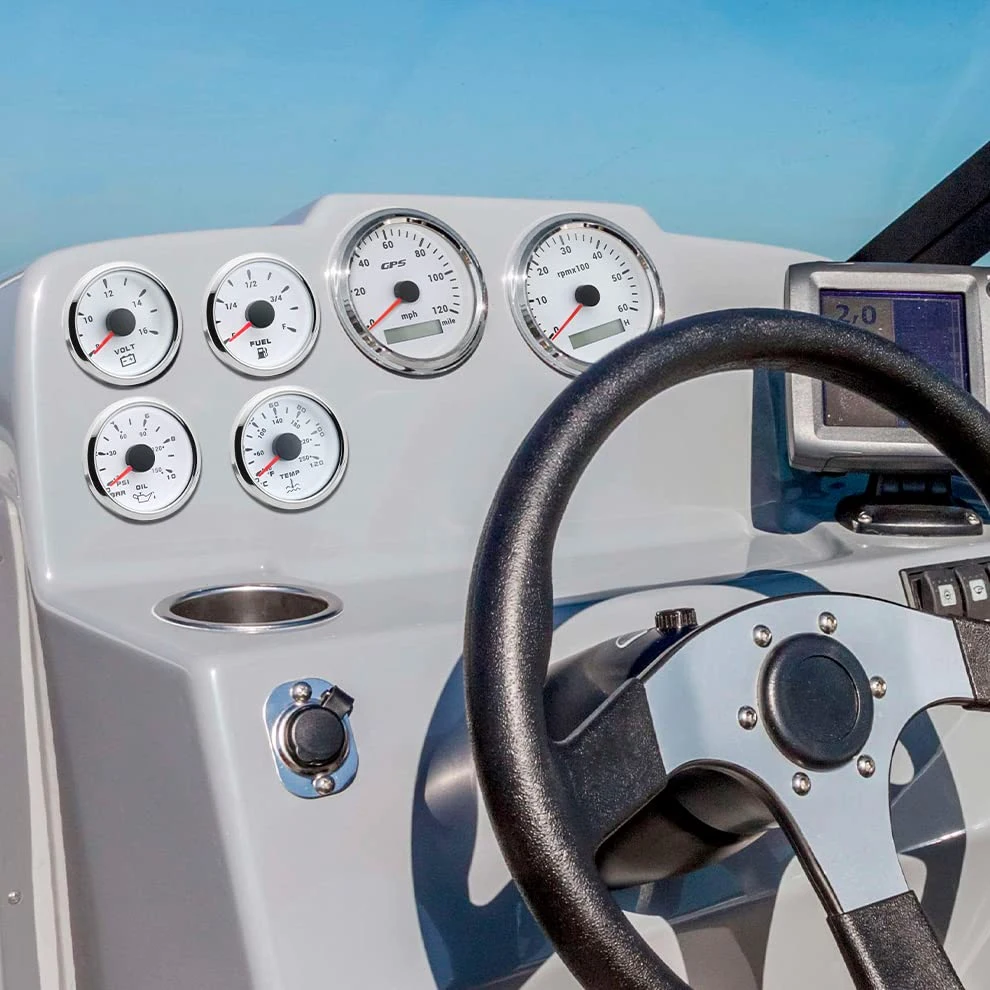

[ Boat Gauges Set]: GPS Speedometer gauge indicating Range: 0 – 120 MPH. Tachometer indicating Range: 0 – 6000 RPM. Volt gauge indicating Range: 8 – 16V. Fuel Level gauge indicating Range: E – F & Resistance 0-190 ohms. Water Temperature gauge indicating Range: 30 – 250°F (0 – 120°C). Oil Pressure gauge indicating Range: 0 – 150 PSI (0 -10 BAR)

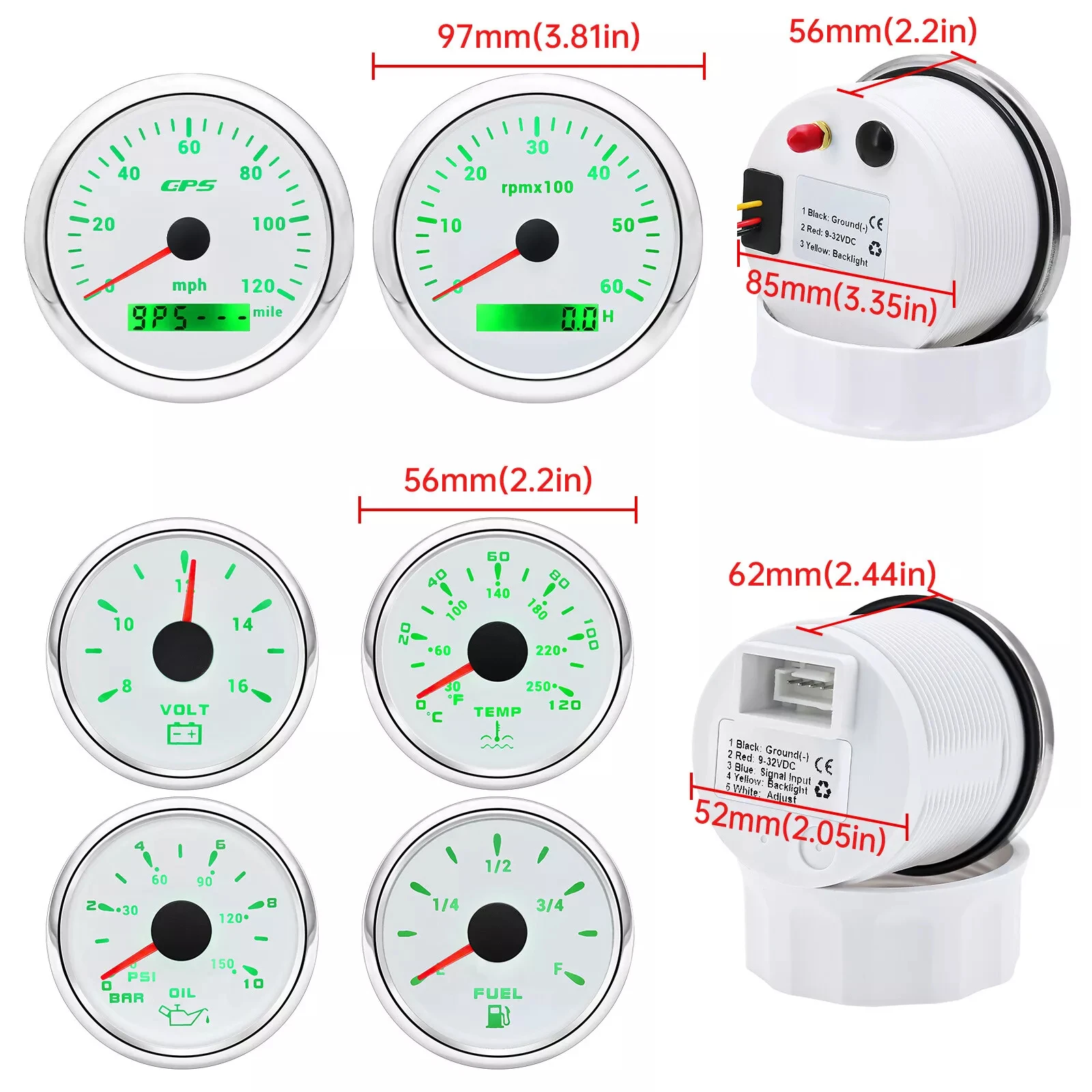

GPS Speedometer and Tachometer: Standard 85mm (3 3/8") hole in the panel (II) and allow a clearance of 55mm (2 3/16") behind the panel to fit the gauge. The Fuel Gauge. Water Temperature. Volt and Oil Pressure Gauge diameter is 2-1/16 inch (52mm)
??Material??The boat gauge set are made of 316L Metal. Rubber and Plastic. Scratch resistant curved glass lenses. IP67 waterproof and dustproof grade
Warmly tips: If any problem after buying. such as some when you install or the parcel received or un-received. please do not open a case and do not hesitate to contact us. We would do our best to give you the best solution. Thank you so muchFeature:High-brightness LED backlight.316 stainless steel for long-term use even in acid-base. humid environment.IP67 waterproof and dust-proof grade.With curved glass( with anti-fog function).Suitable for all kinds of vehicle modification.Using stepper motor drive pointer. accurate display of the engine speed. and with the LCD display clear display mileage.Gauges have many kinds backlight color (red.yellow.orange.green.blue.purple.white).customers can adjust any color that you like Product Detail Speedometer GaugeInstall Diameter: Φ85mm or 3-3/8"Signal: GPSWorking Voltage: 9~32V DCSize: 12x8x12cm / 4.72×3.1×4.75 inchIndication Range: 0-120MPHBacklight:7 Colors BackligtTachometer Engine hours: 0.0-99999.9HBacklight :7 Color backlightIndicating Range: 0~6000 RPMSignal : PulseFor Tachometer. you can substitute for different unit. please contact us before / after purchase or note on the order.Tachometer: 0-3000rpm/0-4000RPM/6000RPM/7000RPM/8000RPMVolt GaugeSizes: 52 mm (2-1/16")Measuring Range: 8 – 16 (V)Backlight: 7 Colors Fuel Level GaugeSizes: 52 mm (2-1/16")Measuring Range: Empty – FullResistance: 240- 33ohms / 0-190ohmBacklight: 7 Colors Water Temperature GaugeInstall diameter: Φ52mmIndication range: 0~120/30-250Input signal: 287.4~22.4 ohmStorage temperature: -40~+85Backlight: 7 Colors Oil Pressure GaugeInstall diameter:Φ52mm or 2-1/16"Indication range:0~10bar / 0-150 PSIOperating temperature:-30~+75??Storage temperature:-40~+85?? Backlight: 7 Colors Package Includes:1X 85MM GPS Speedometer Gauge1X GPS Antenna1x 85MM Tachometer1X 52MM Voltmeter1x 52MM Fuel level gauge1X 52MM Water temp gauge1X 52MM Oil pressure gauge Installation Instruction
Specification
item | 6 Gauge Set 85MM GPS Speedometer Tacho 7000rpm & 52mm Fuel Gauge Temp Oil Pressure Volt |
OE NO. | 6 gauge set |
Used To | Car. Boat. Yacht. Motorcycle |
Voltage | 9-32V |
Protection Range | IP67 |
Warranty | 1 YEAR |
Shipping
Package: Using standard export neutral packaging.Shipping : 1. By Couriers: DHL. UPS. FEDEX. TNT. EMS etc.2. By Air: Delivery from the Shanghai airport to customers’ destination city airport3. By Sea: Delivery from the Shanghai sea port
FAQ
Q:1. Can I have a sample order?A: Yes. we welcome sample order to test and check the quality. Mixed samples are acceptable.Q:2. What about the lead time?A: 3-5 days for samples.Q:3. How do you ship the goods and how long does it take arrive?A: we often will ship by FEDEX. DHL.EMS.TNT and UPS etc. approximately 3-5 days. and will be different according to the destination. Airline and sea shipping is also optional.Q:4.How to proceed an order?A:Initially. let us know your requirements or application. Besides. We quote according to your requirements or our suggestions.Thirdly. customers confirms the samples and places deposit for formal order. Finally. We arrange the production.Q:5. How can I pay for the orders?A: Regard to payment.we can accept T/T.Western Union. Alipay.Q:6. Do you offer guarantee for the products?A: Yes. we offer 12 months for our products.Q:7.Do you test all your goods before delivery? A:Yes. we have 100% test before delivery.Q:8.Is there instruction installation?A: Yes. each gauge comes with instruction installation in the package.Q:9. How to contact us?A:Send your inquiry details in the below and click the "send"now.
If you have more questions. just contact us soon
