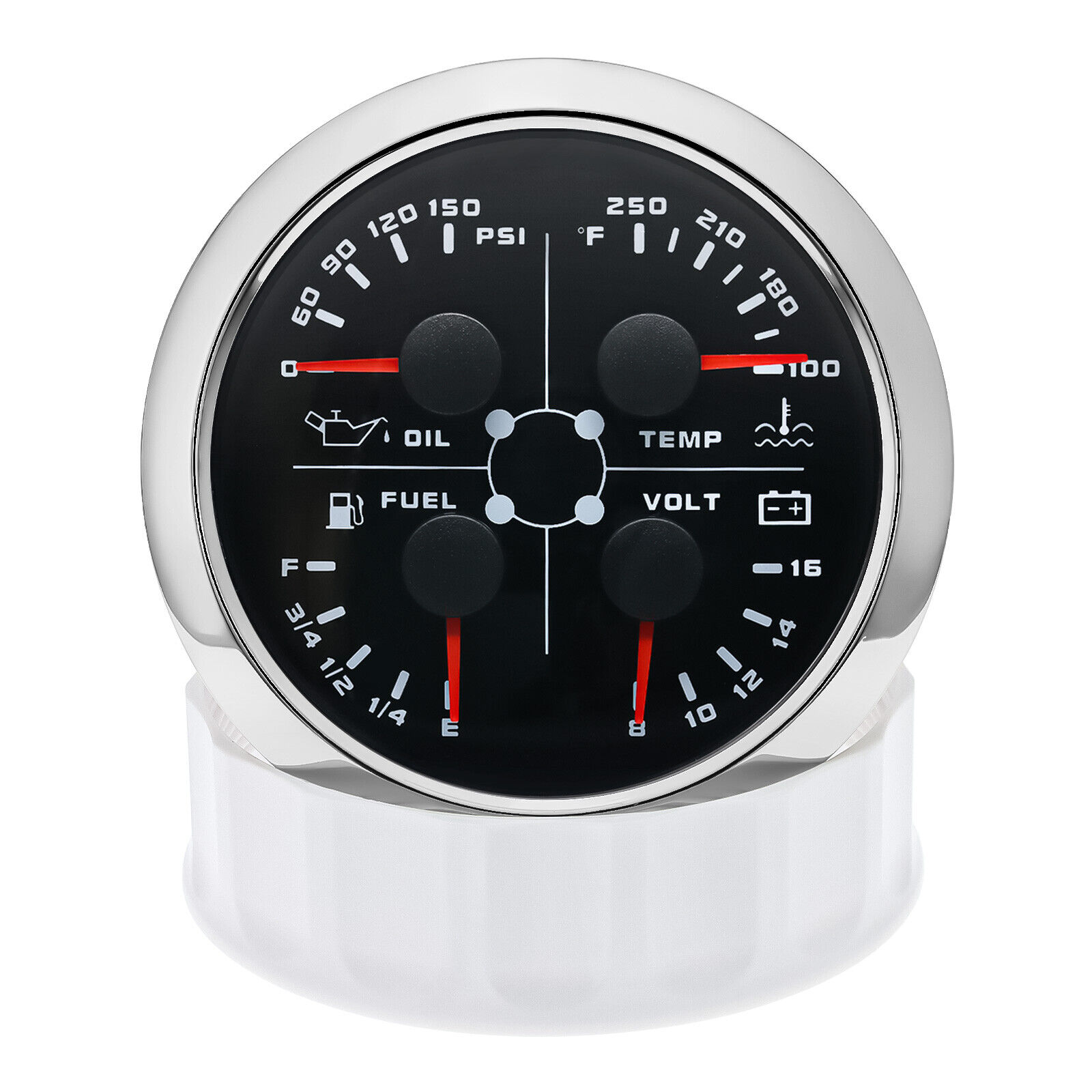

85mm 4 In1 Gauge Fuel Level Gauge Water Temp Oil Pressure Voltmeter Waterproof
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$38.00
12
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
85mm 4 in1 Gauge Fuel Level Gauge Water Temp Oil Pressure Voltmeter Waterproof

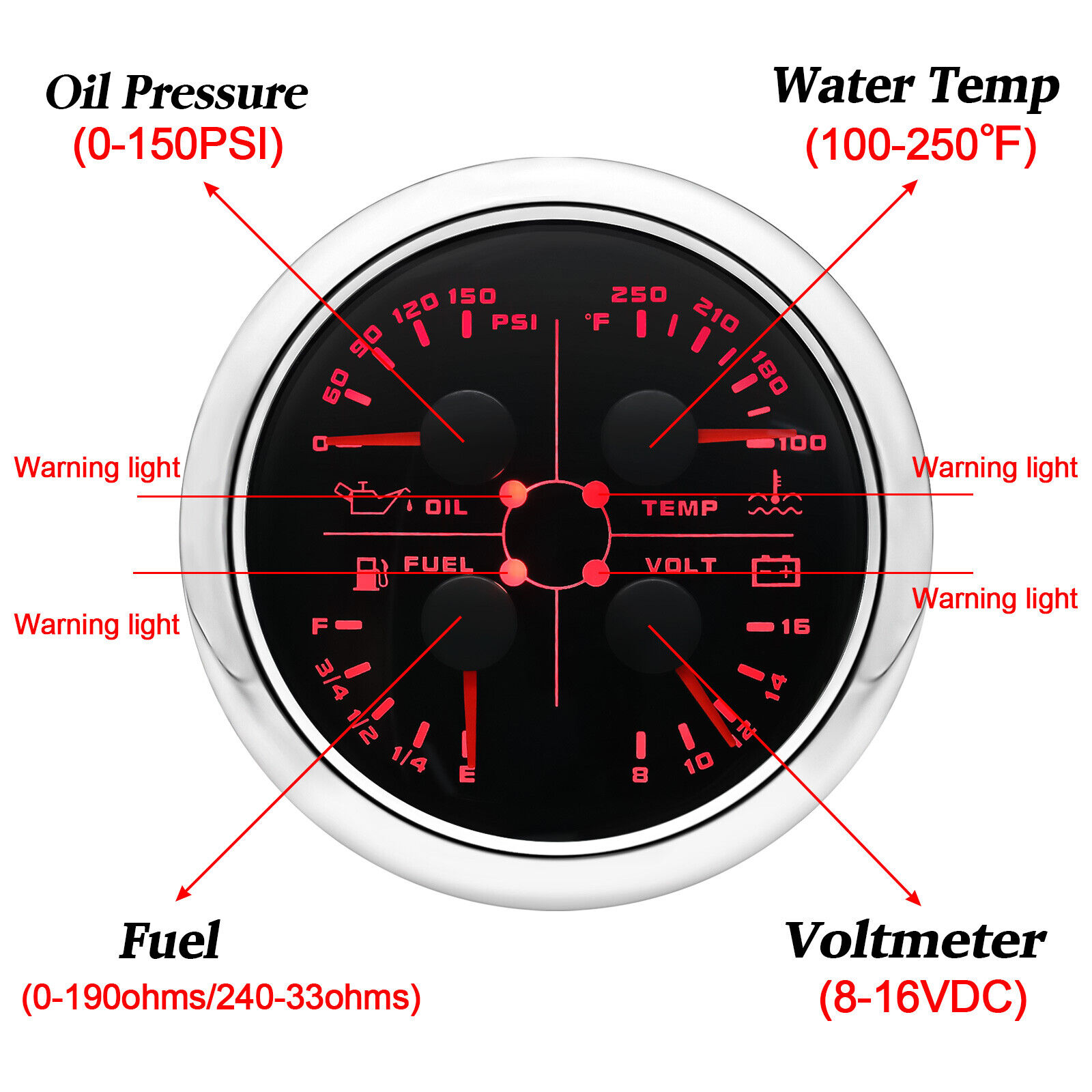

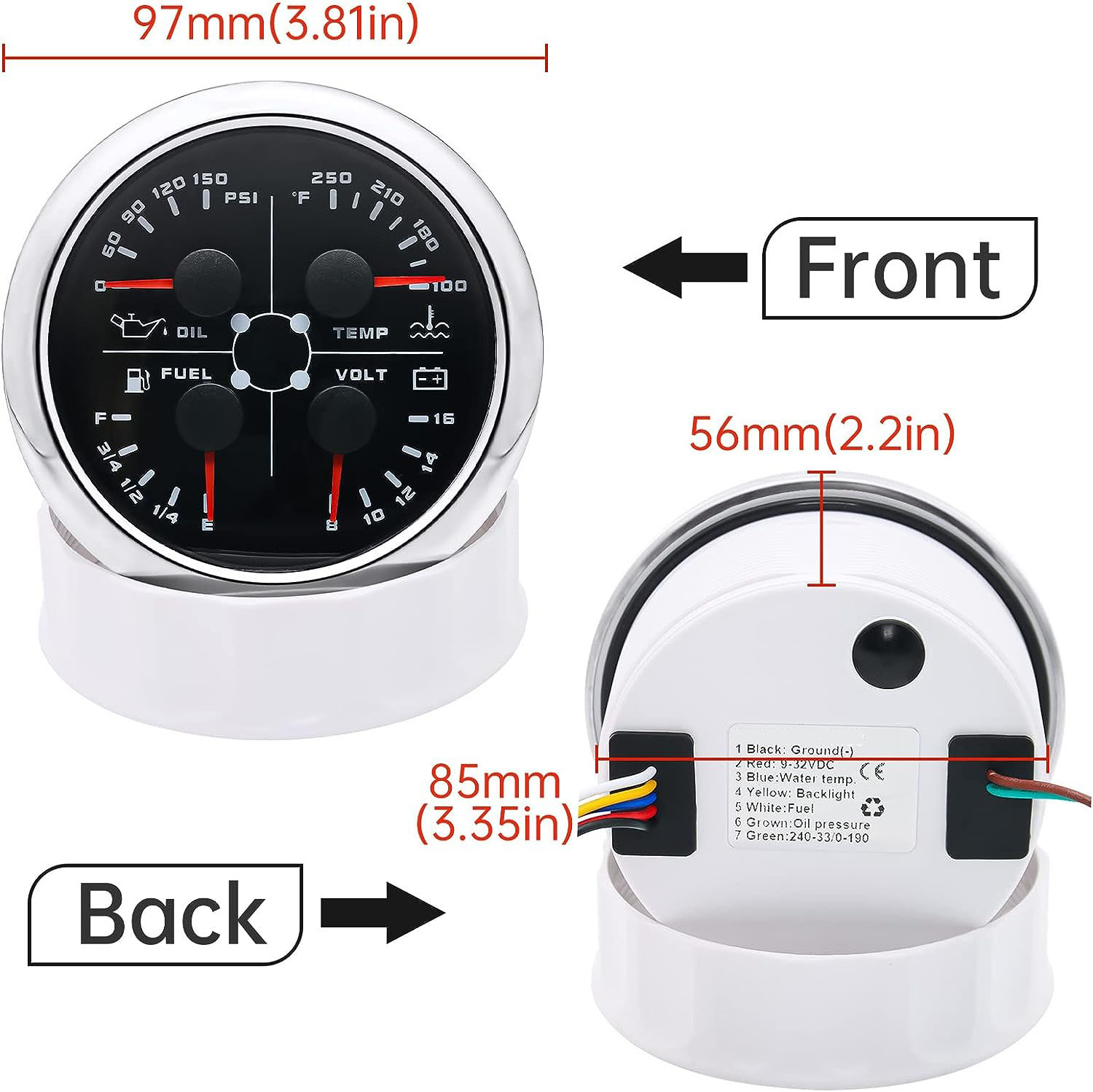

??Multi-function ??The gauge display voltmeter. oil pressure. Fuel Level. water temperature gauge. it constantly monitors the value changes of oil and water temperature to ensure driving safety. Applicable to most car. boats. truck. and off-road vehicles.??Range??Indicating Range: Engine oil pressure: 0~150PSI. Engine temperature: 100-250°F. Battery voltage: 8-16V. Fuel level: 0~ 100%. 0-190ohms for fuel level meter;(Default 0-190ohms. can adjust to 240-33ohms)??Alarm message??Alarm message. 1.Fuel<13% alarm. 2.Oil pressure<0.8bar alarm. 3.Water temp. >95?? alarm. 4.Voltage <11.5V alarm. Input parameter(The sensor will be not included). Oil pressure sensor: 10~184ohms. Temperature sensor: 301~22ohms. Fuel level sensor: 0~190ohm or 240~33ohms.??Material?? Protection grade is IP67. the whole body is completely waterproof.Features:The world's newest 4 in 1 multifunction gauge.Convenient Installation by multi-plug socket connecting way.The gauge has the advantages of high precision. quick location confirmation and short start up time.Most importantly. the gauge is easy to setup. and can be used in all vehicles. boats and off-road vehicles.Technical Data:Fixing dimension: 85mmIndicating Range: Oil press. meter: 0-150psi;Water temp. meter: 100-250° FFuel level meter: 0-190ohms/240-33ohms. empty-full; (The signal can be adjusted)Voltmeter: 8-16VWorking Voltage: 12VBacklight: RedConnectionBlack: Ground(-)Red: 9-32VDC(+)Blue:FuelYellow: BacklightWhite: Water tempGrown: Oil pressureGreen??Signal parameters(Can be adjusted 240-33ohms or 0-190ohms)Input Signal:10-184ohms for 0-150PSI oil pressure meter;0-190ohms for fuel level meter;(Default 0-190ohms. can adjust to 240-33ohms)8-16V voltage meter;Input Signal 287.4-22.4ohms for water temperature meterRed backlightExcellent antifogging function;316 Stainless steel bezel with curved glass;Convenient Installation by multi-plug socket connecting way;Accessories: matched with connectors. Installation InstructionPackage Included:1 x 85mm 4 in 1 Multifunctional Gauge1 x Cable1 x Installation Instruction
Product Description
Specification
item | 85mm 4in 1 Gauge Fuel Level Gauge 240-33 ohms Water Temp Oil Pressure Voltmeter |
Used To | Car. Boat. Yacht. Motorcycle |
Voltage | 9-32V |
Protection Range | IP67 |
Warranty | 1 YEAR |
Shipping
Package: Using standard export neutral packaging.Shipping : 1. By Couriers: DHL. UPS. FEDEX. TNT. EMS etc.2. By Air: Delivery from the Shanghai airport to customers’ destination city airport3. By Sea: Delivery from the Shanghai sea port
FAQ
Q:1. Can I have a sample order?A: Yes. we welcome sample order to test and check the quality. Mixed samples are acceptable.Q:2. What about the lead time?A: 3-5 days for samples.Q:3. How do you ship the goods and how long does it take arrive?A: we often will ship by FEDEX. DHL.EMS.TNT and UPS etc. approximately 3-5 days. and will be different according to the destination. Airline and sea shipping is also optional.Q:4.How to proceed an order?A:Initially. let us know your requirements or application. Besides. We quote according to your requirements or our suggestions.Thirdly. customers confirms the samples and places deposit for formal order. Finally. We arrange the production.Q:5. How can I pay for the orders?A: Regard to payment.we can accept T/T.Western Union. Alipay.Q:6. Do you offer guarantee for the products?A: Yes. we offer 12 months for our products.Q:7.Do you test all your goods before delivery? A:Yes. we have 100% test before delivery.Q:8.Is there instruction installation?A: Yes. each gauge comes with instruction installation in the package.Q:9. How to contact us?A:Send your inquiry details in the below and click the "send"now.
If you have more questions. just contact us soon
