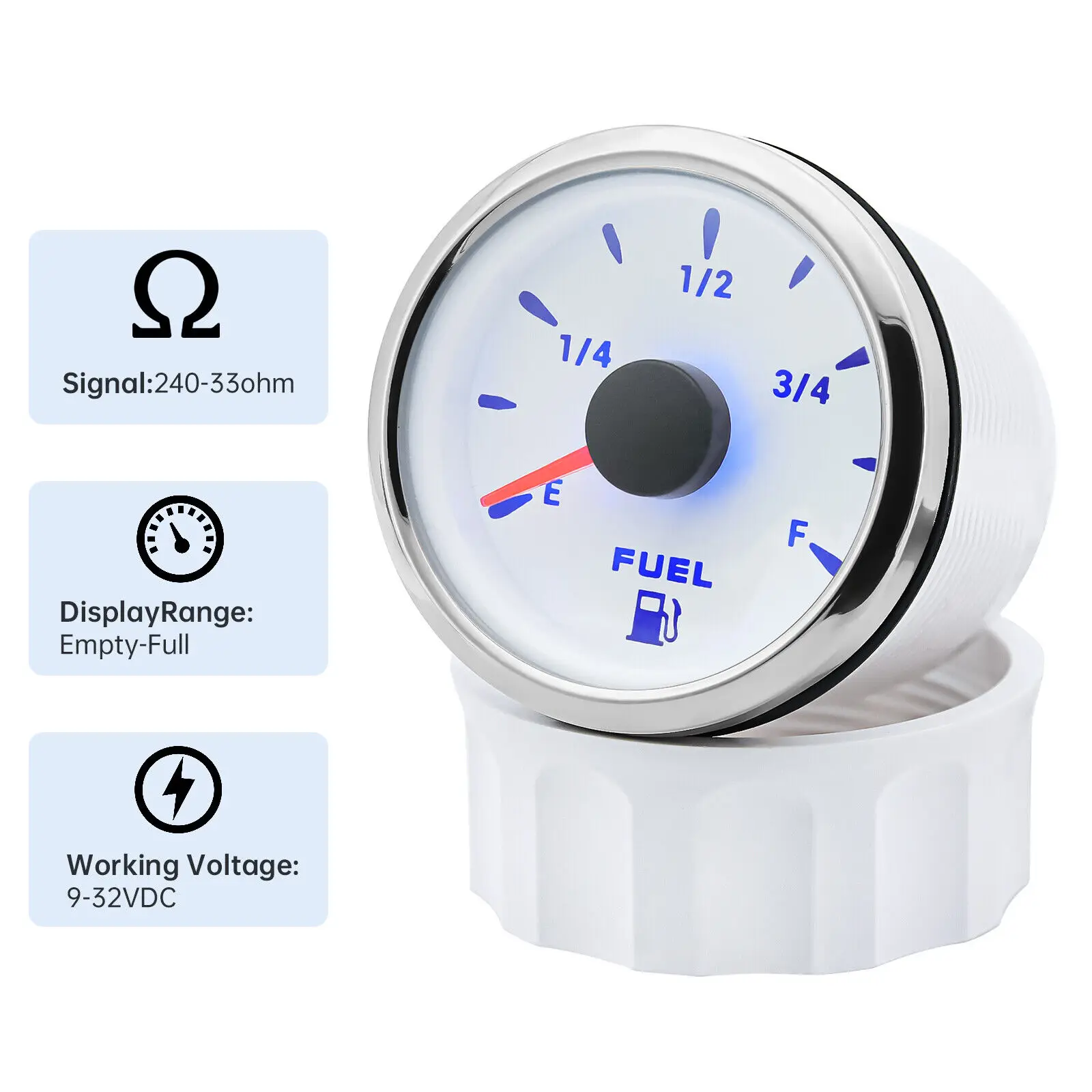

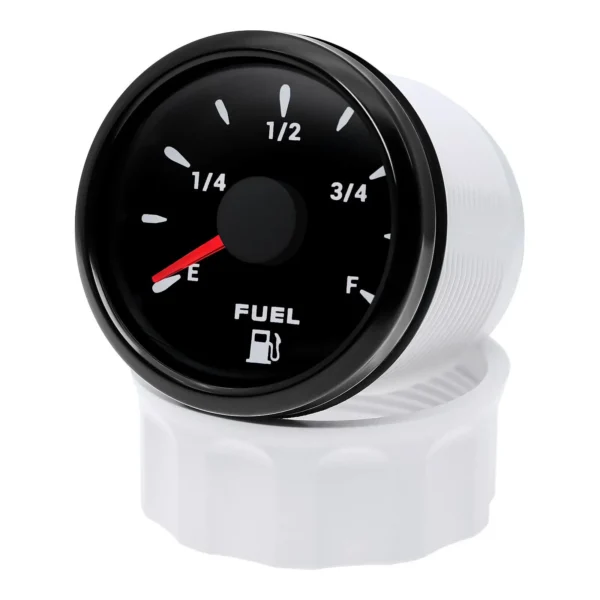

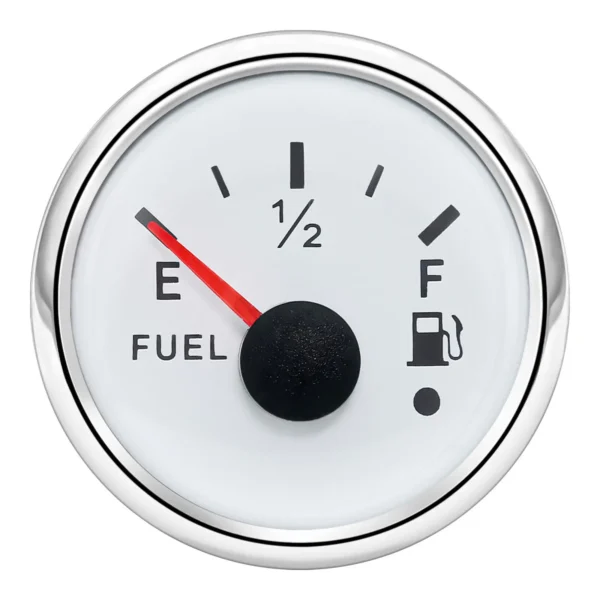

52MM Marine Car Truck Boat Fuel Tank Level Indicator Gauge 0-190ohms 240-30ohms 7 Color

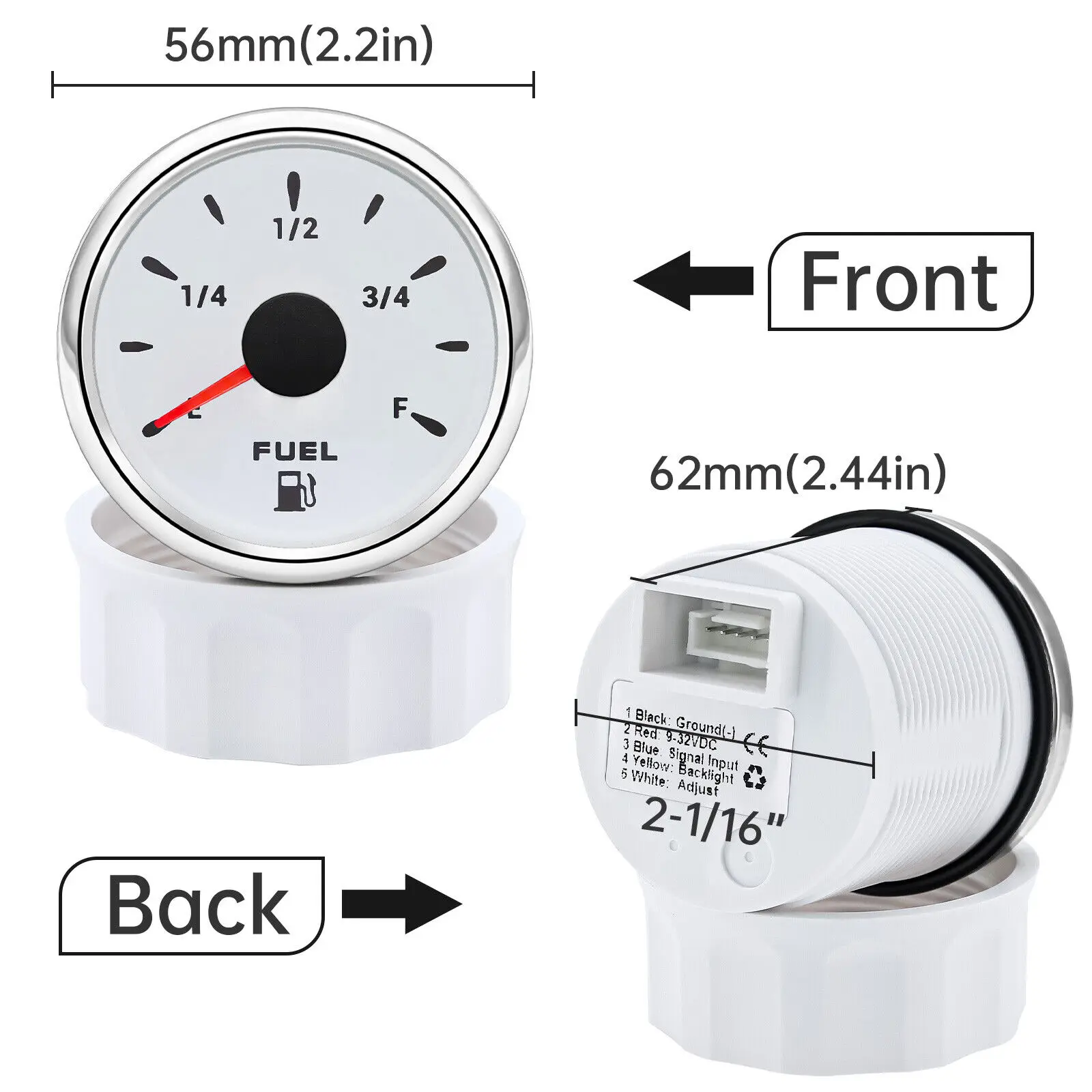

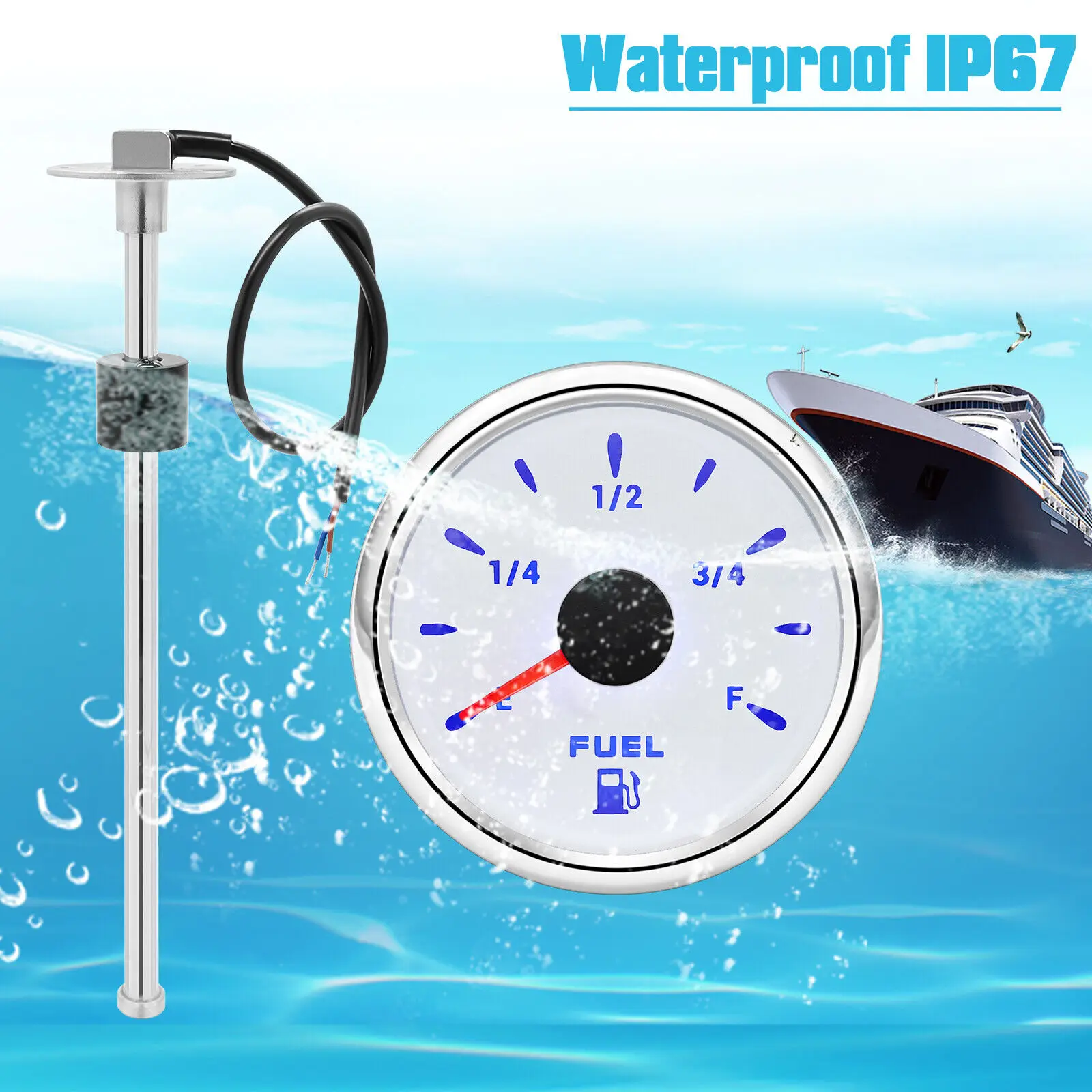

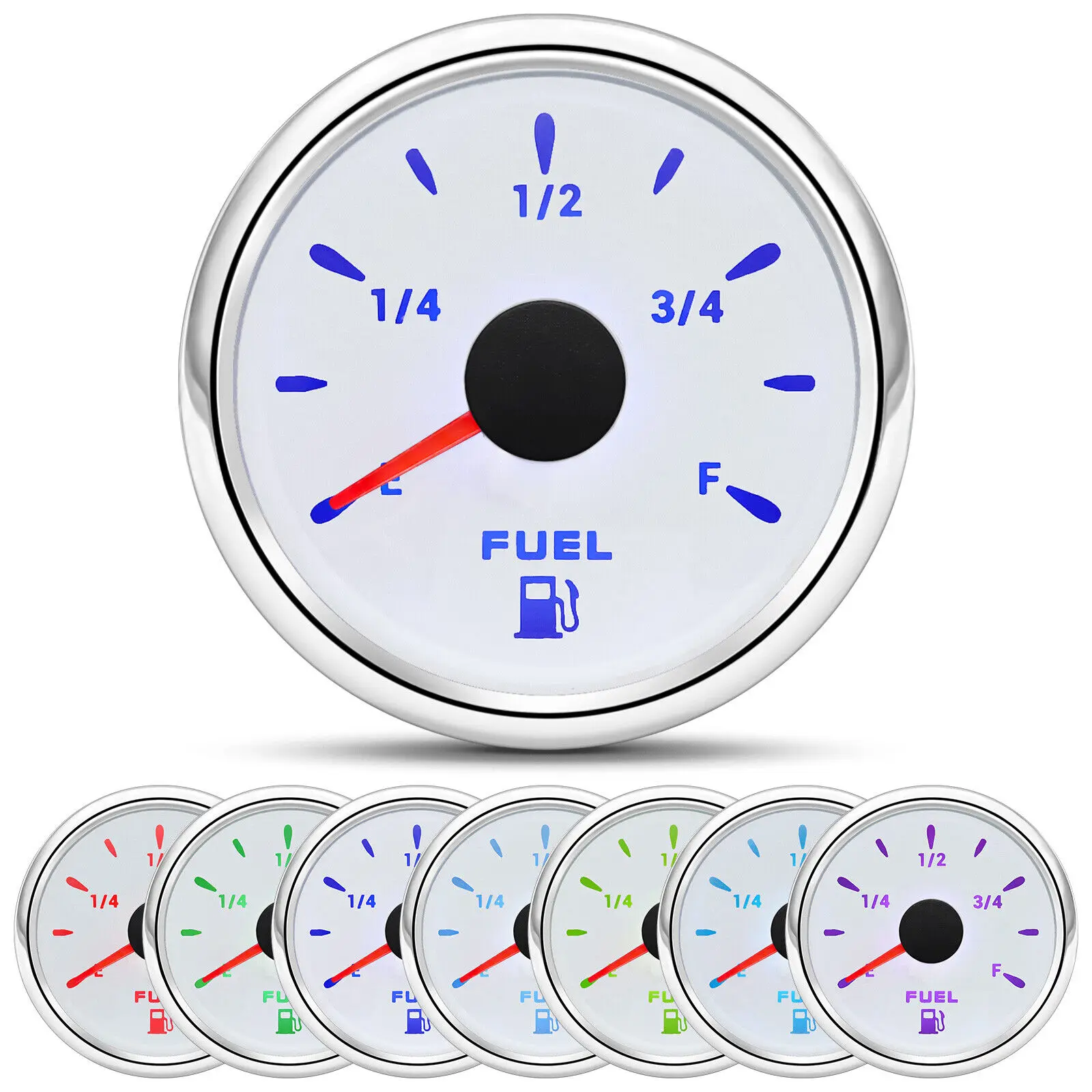

FeaturesThis gauge have 7 backlight color : red??green??blue??yellow??olivine??orange??purple. totally 7kinds different backlight color. it will change automatically every 1 minute.Fantastic waterproof Function: Can work in the water.You can fix only one color you like by pressing the gauge back "set" buttonGauges front cover use stainless steel 316L for long-term use even in acid-base and humid environmentIP67 waterproof and dustproof gradeStepper motors used for full range of stepping gauges.great feature with its less power consumption.longer life.higher precision etc.With curved glass (with anti-fog function)With ultra-wide working voltage design (long-term operating voltage:9-32v.maximum up to:36v)There is a snap together with the harness connector.for best and firmly connected.in order that the gauges could work even in strongviberation.products can be used for the engines/generating units.ships.construction machinery.agricultural machinery.automotive modification etc. Specifications:Material:stainless steel 316L+anti-fog glassInstall diameter:Φ52mm or 2-1/16"Indication range:E-FBacklight color:red.yellow.orange.green.blue.purple.yellow green. You can choose what you need color that press the gauge back buttonWorking voltage:9-32VDCInput signal:240-33ohmWorking current:≤60mAOperating temperature:-30??~+75??Storage temperature:-40??~+85??Grade of protection:IP67 Sensor Specification:Please attention we have 20 models Level Sensor Length Range for choice:100mm.125mm.150mm. 200mm.225mm. 250mm. 300mm. 350mm….Material: 316 Stainless SteelProtection Rank: IP67Resistance output signal: 240-33ohmsOperational Temperature: -40°F ~ +185°F (-40?? ~ +85??)Screw size: M5*16Level Sensor Support Water Level Gauge and Fuel Level Gauge INSTRUCTIONSBlue – GroundBrown- connect to instrument signal lineThe sensor can not be connected to the power supply. can not be connected to the positive electrode. does not need to be connected to the powersupply. it is connected with the gauge signal directlyEmpty oil level 240 ohmFull oil level 33ohm Package included1 x Fuel level gauge1 x Wiring harness1 x Instruction manual
