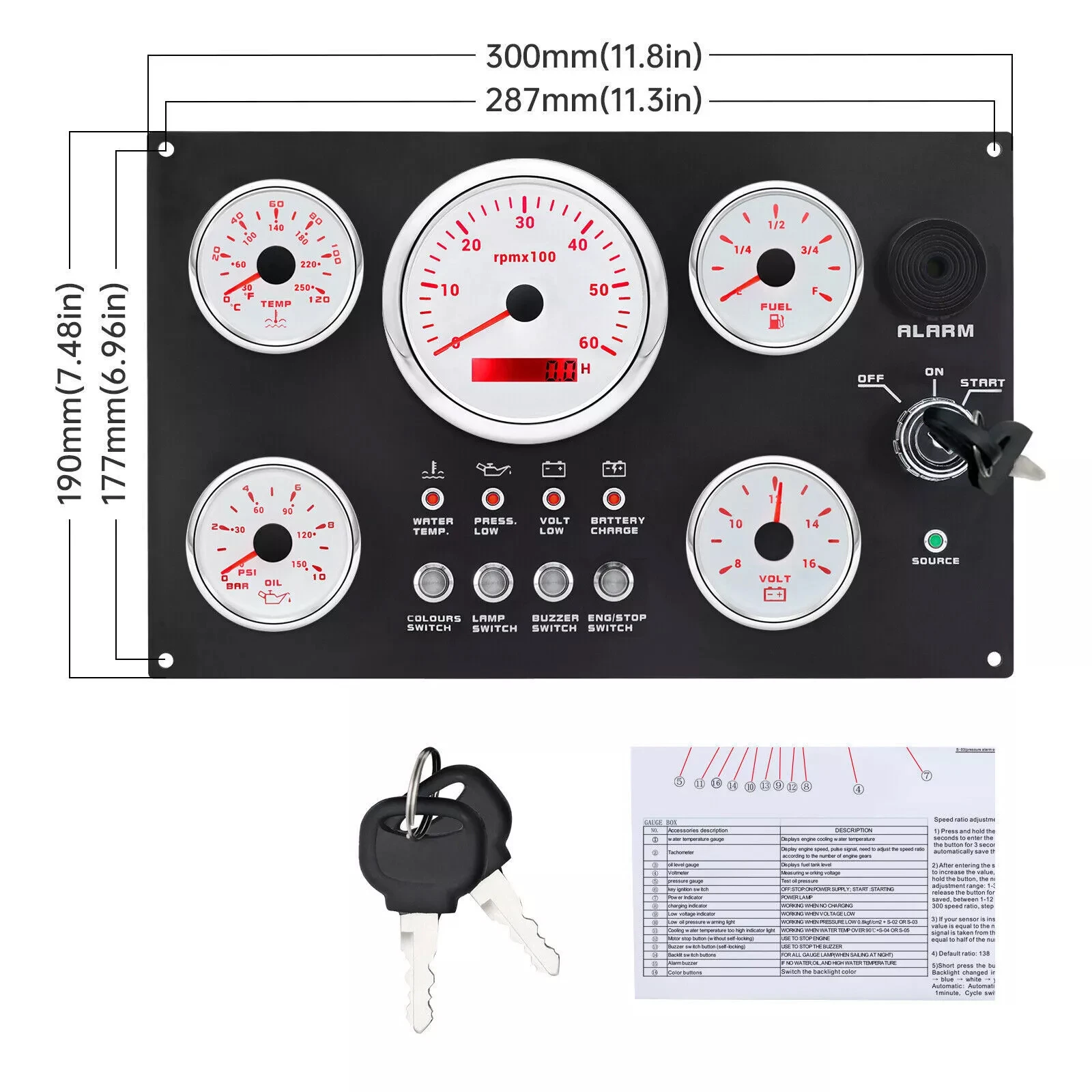

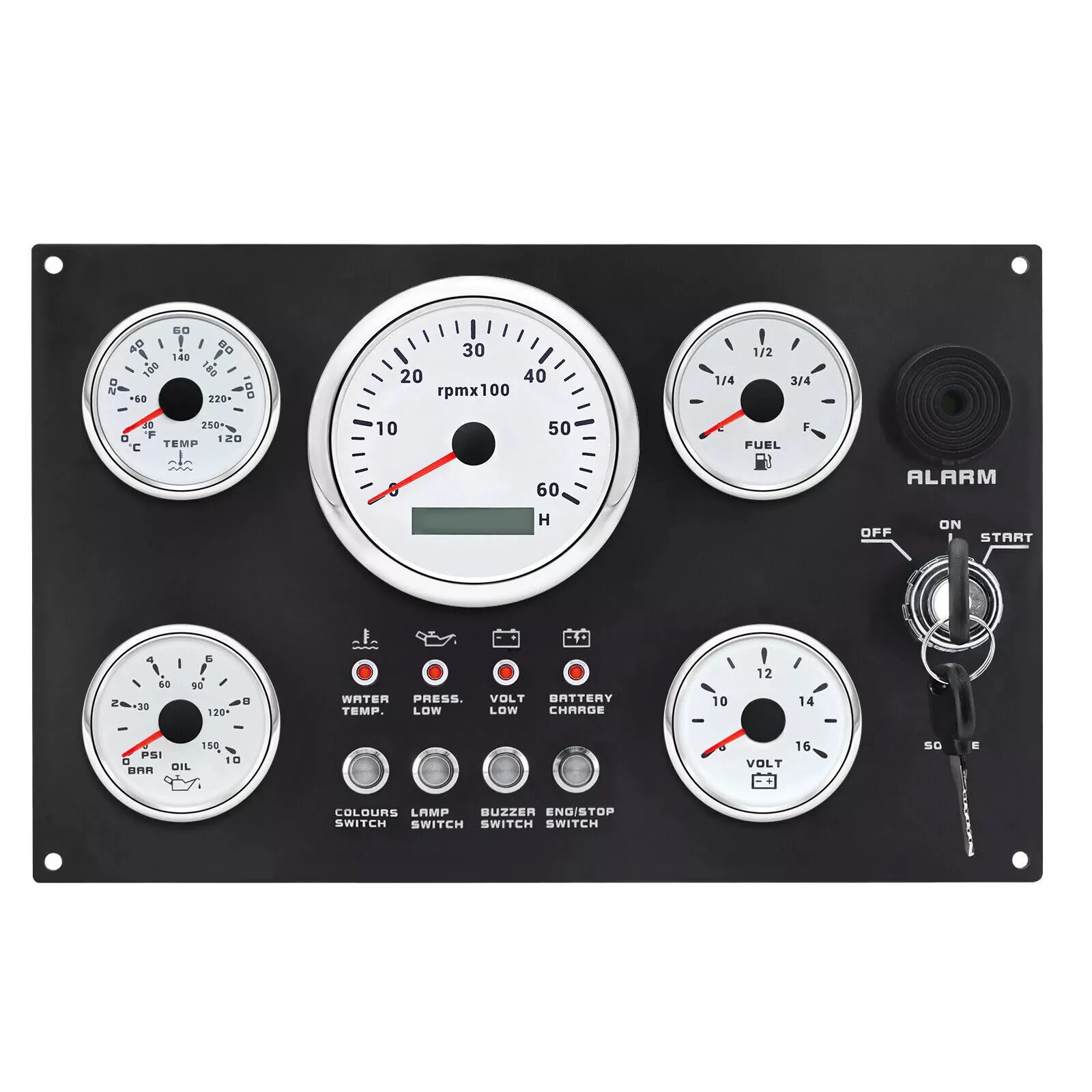

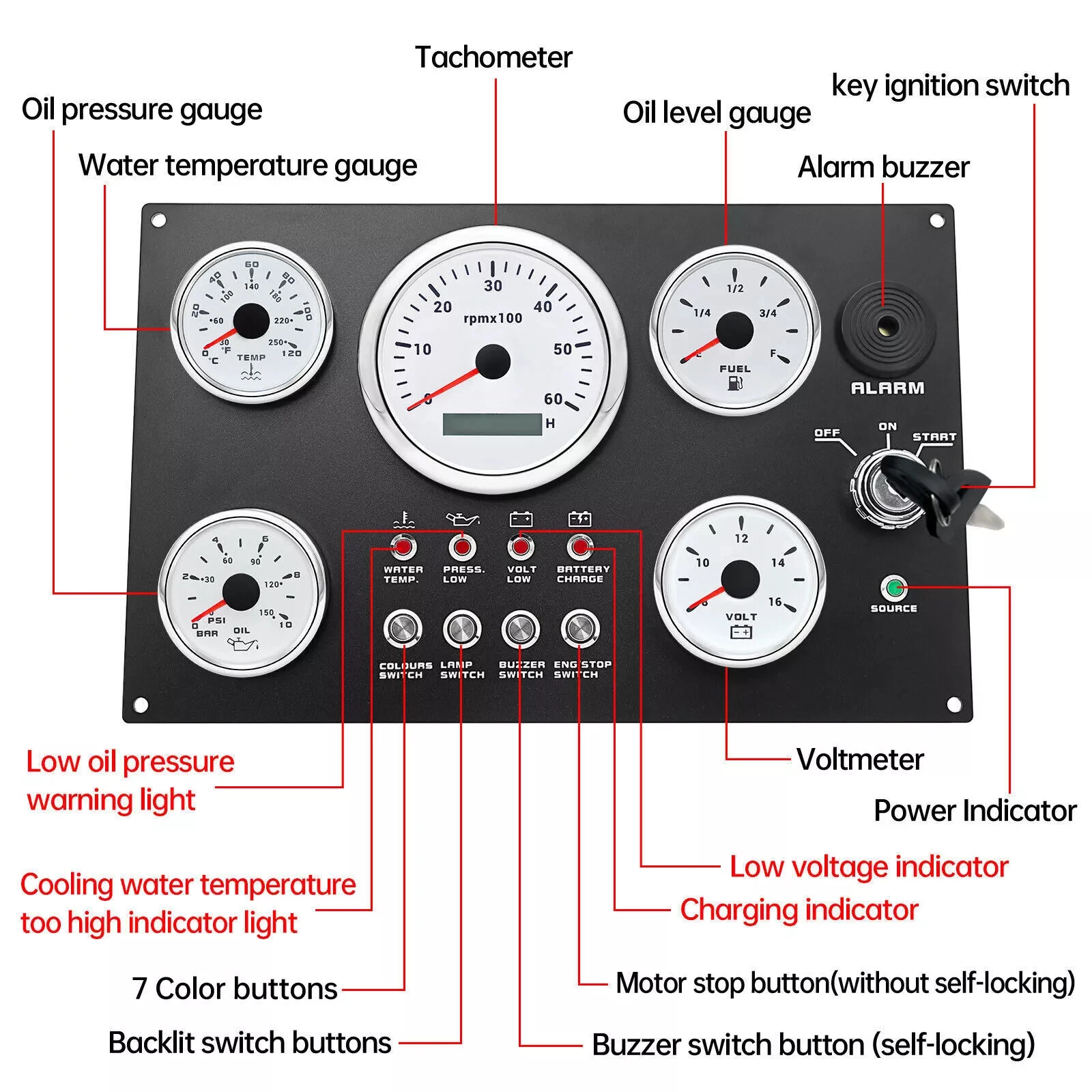

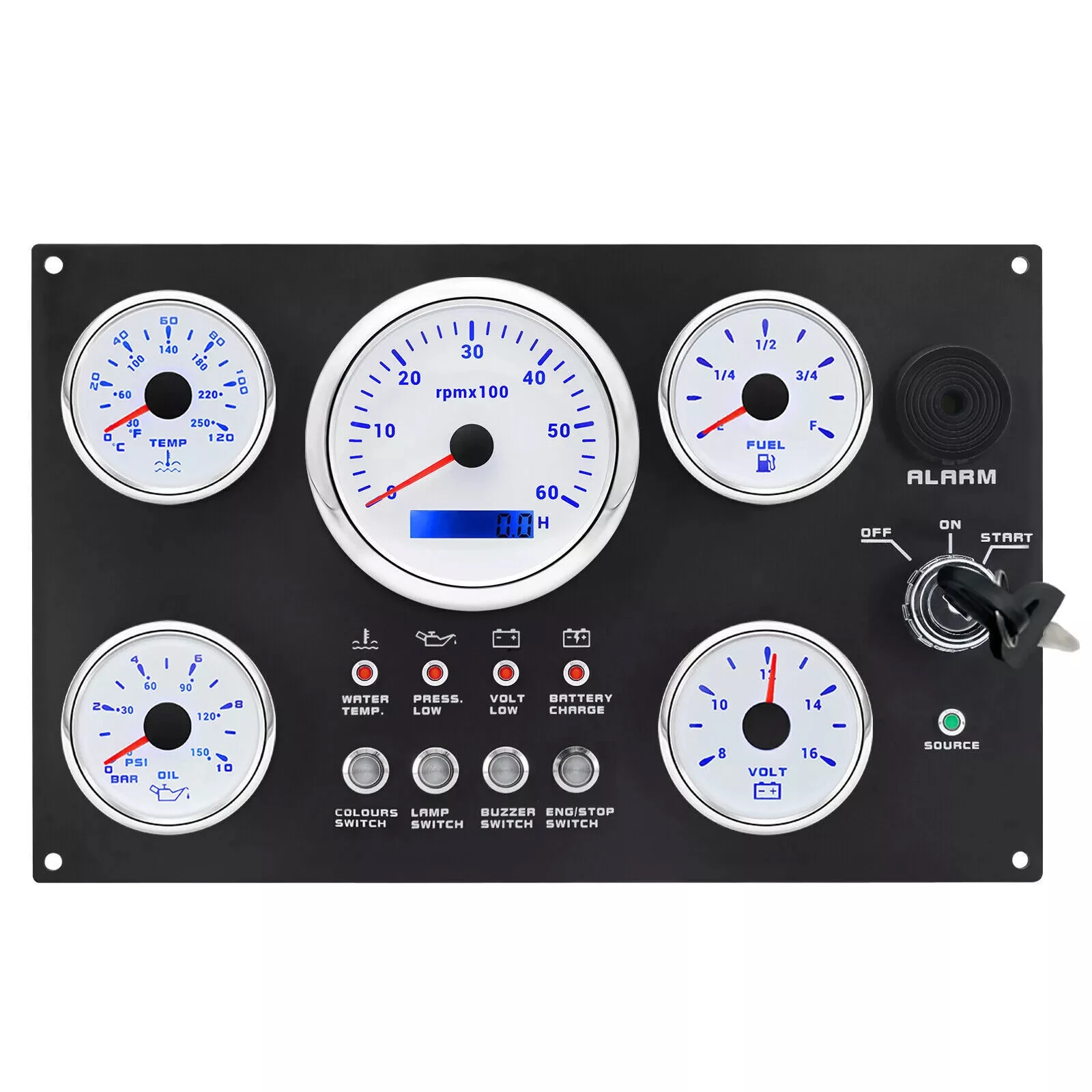

5 Gauges Set with Instrument Panel Tachometer 6000RPM 7 Color LED For Boat Yacht
Specification
Feature:
* Analog Display Tachometer & Digital Display Hour Meter.
* Clear Lens. 316 Stainless Steel Bezel with ABS Plastic Housing.
* Black Faceplate. Red Needle with 7 colors LED Illumination.
* With IP67 Waterproof. Rustproof. Anti-Fog & UV-Resistant.
* Hour Meter Records to 99999.9 Hours & Automatic Roll Over Resolution 0.1 Hour.
* Volt Gauge. Fuel Level Gauge. Water Temperature Gauge & Oil Pressure Gauge with Warning Function.
* Gauge Set (Except Volt Gauge) Requires 12 / 24 Volt Negative Ground Systems.
* Volt Gauge Requires 12 Volt Negative Ground Systems.
* One Year Limited Warranty for Non-Human Factor Damage & Free Lifetime Technical Support.
Tachometer
* Install Diameter: Φ85mm or 3-3/8"
* Engine hours: 0.0-99999.9H
* Backlight :7 Color backlight
* Indicating Range: 0~3000RPM
* Signal: Pulse
* For Tachometer. you can substitute for different unit. please contact us before / after purchase or note on the order.
* Tachometer: 0-4000rpm/0-6000RPM/7000RPM/8000RPM
Fuel Level Gauge
* Sizes: 52 mm (2-1/16")
* Measuring Range: Empty – Full
* Resistance: 0 (E) – 190(F) ohms
* Backlight: 7 Colors
Water Temperature Gauge
* Install diameter: Φ52mm
* Indication range: 0~120??/30-250?H
* Input signal: 287.4~22.4 ohms
* Storage temperature: -40~+85??
* Backlight: 7 Colors
Oil Pressure Gauge
* Install diameter:Φ52mm or 2-1/16"
* Indication range:0~10bar / 0-150 PSI
* Operating temperature:-30~+75??
* Storage temperature:-40~+85??
* Backlight: 7 Colors
Volt Gauge
* Sizes: 52 mm (2-1/16")
* Measuring Range: 8 – 16 (V)
* Backlight: 7 Colors
PACKAGED
* 1x Tachometer
* 1x Water Temperature Gauge
* 1x Oil Pressure Gauge
* 1x Fuel Level Gauge
* 1x Voltmeter
* 5x Wire Harness
* 1x Instrument Panel
* 1xInstallation Manual
* Analog Display Tachometer & Digital Display Hour Meter.
* Clear Lens. 316 Stainless Steel Bezel with ABS Plastic Housing.
* Black Faceplate. Red Needle with 7 colors LED Illumination.
* With IP67 Waterproof. Rustproof. Anti-Fog & UV-Resistant.
* Hour Meter Records to 99999.9 Hours & Automatic Roll Over Resolution 0.1 Hour.
* Volt Gauge. Fuel Level Gauge. Water Temperature Gauge & Oil Pressure Gauge with Warning Function.
* Gauge Set (Except Volt Gauge) Requires 12 / 24 Volt Negative Ground Systems.
* Volt Gauge Requires 12 Volt Negative Ground Systems.
* One Year Limited Warranty for Non-Human Factor Damage & Free Lifetime Technical Support.
Tachometer
* Install Diameter: Φ85mm or 3-3/8"
* Engine hours: 0.0-99999.9H
* Backlight :7 Color backlight
* Indicating Range: 0~3000RPM
* Signal: Pulse
* For Tachometer. you can substitute for different unit. please contact us before / after purchase or note on the order.
* Tachometer: 0-4000rpm/0-6000RPM/7000RPM/8000RPM
Fuel Level Gauge
* Sizes: 52 mm (2-1/16")
* Measuring Range: Empty – Full
* Resistance: 0 (E) – 190(F) ohms
* Backlight: 7 Colors
Water Temperature Gauge
* Install diameter: Φ52mm
* Indication range: 0~120??/30-250?H
* Input signal: 287.4~22.4 ohms
* Storage temperature: -40~+85??
* Backlight: 7 Colors
Oil Pressure Gauge
* Install diameter:Φ52mm or 2-1/16"
* Indication range:0~10bar / 0-150 PSI
* Operating temperature:-30~+75??
* Storage temperature:-40~+85??
* Backlight: 7 Colors
Volt Gauge
* Sizes: 52 mm (2-1/16")
* Measuring Range: 8 – 16 (V)
* Backlight: 7 Colors
PACKAGED
* 1x Tachometer
* 1x Water Temperature Gauge
* 1x Oil Pressure Gauge
* 1x Fuel Level Gauge
* 1x Voltmeter
* 5x Wire Harness
* 1x Instrument Panel
* 1xInstallation Manual
* 3*sensor
Item | 5 Gauges Set with Instrument Panel 0-8000RPM 7 Colors LED For Marine Boat White |
