Description

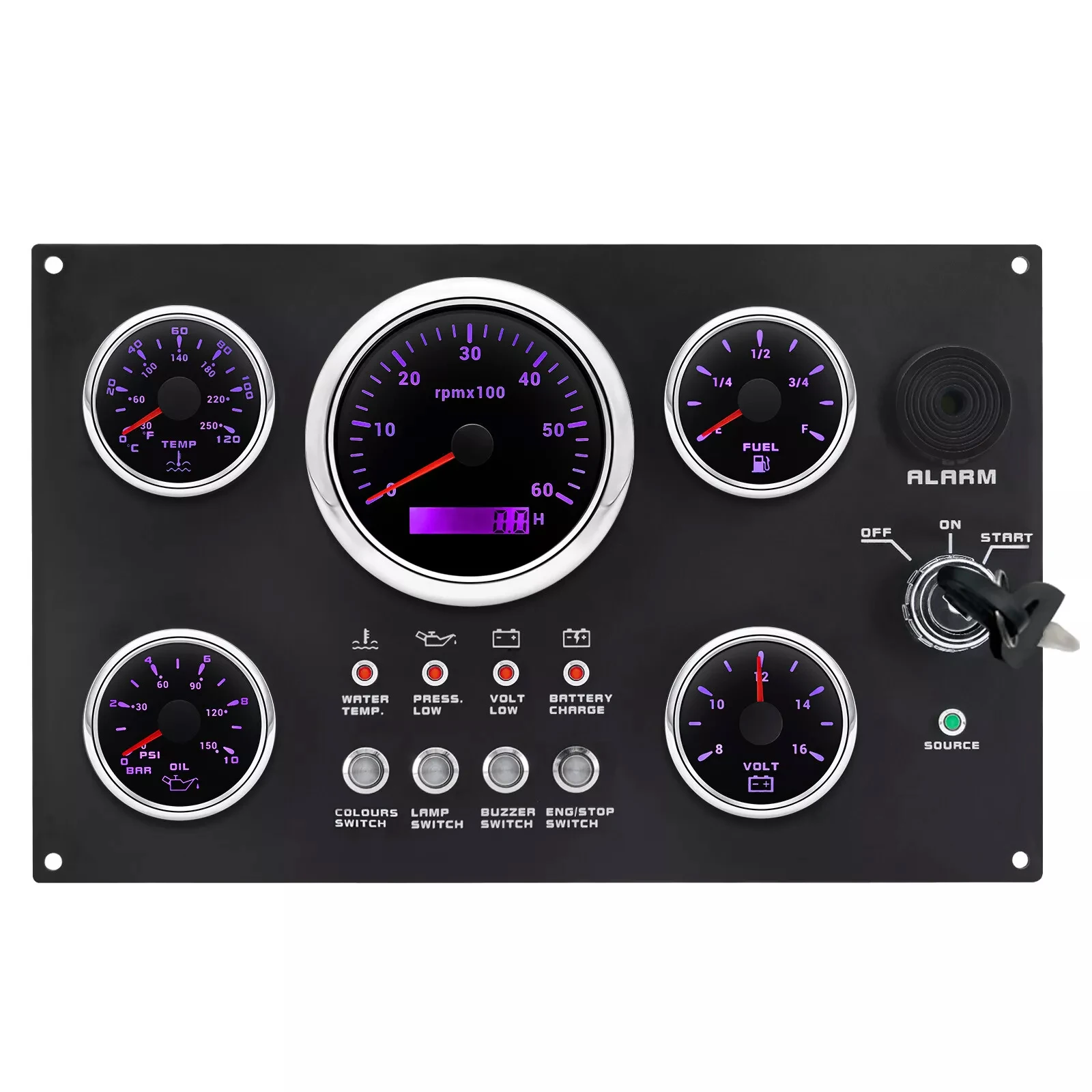

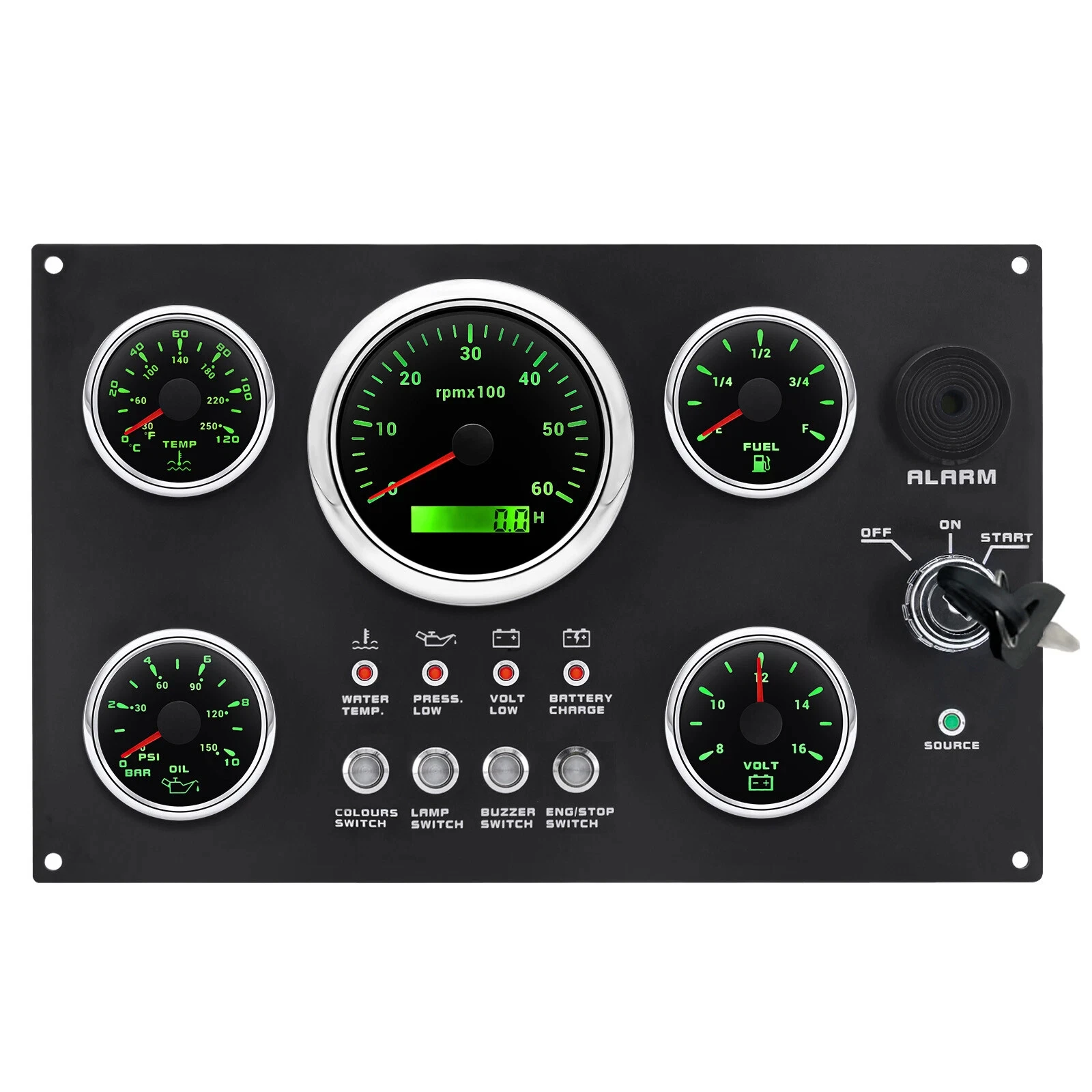

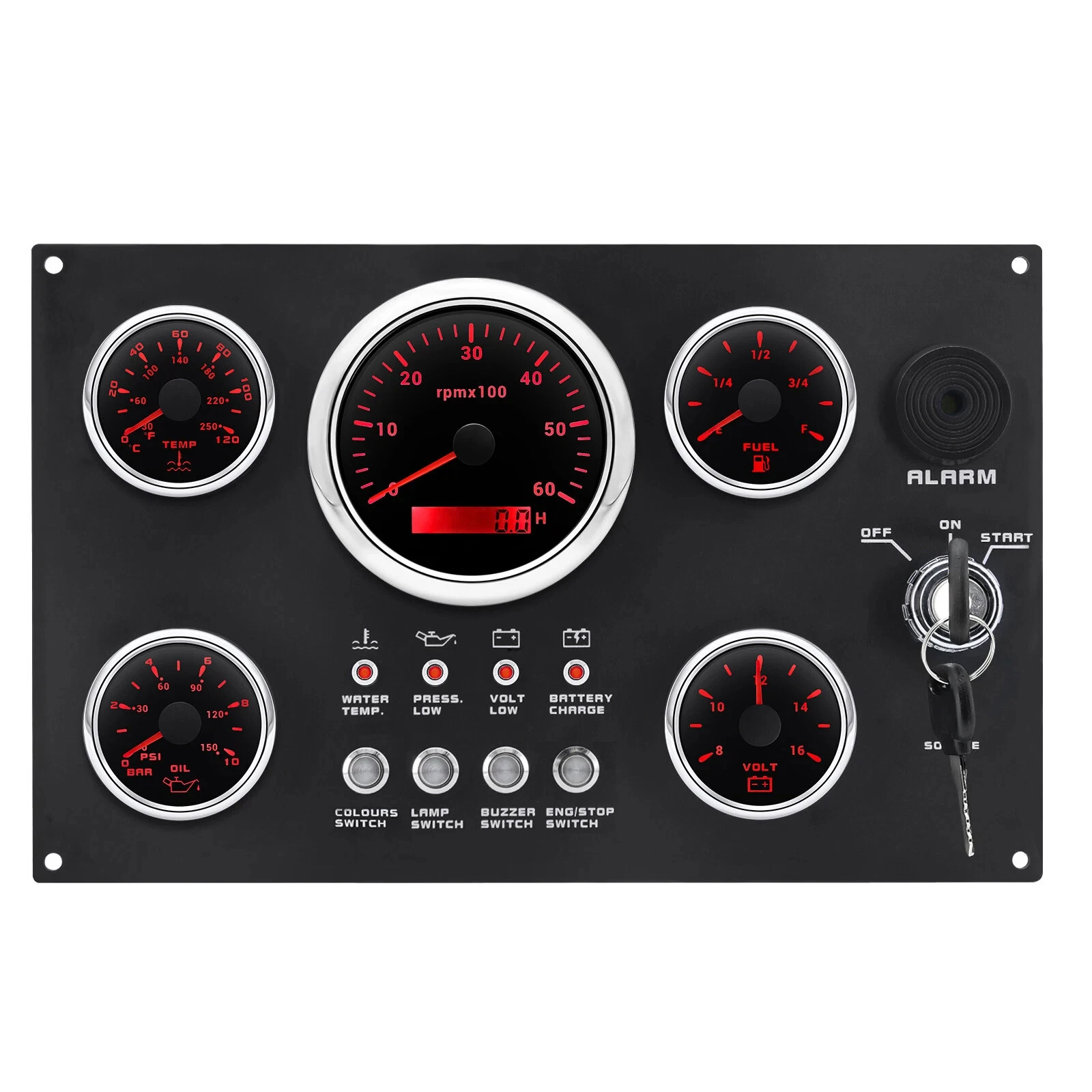

5 Gauge Set With Instrument Panel Tachometer 6000RPM 7 Colors Fit Marine Boat
Specification
Product Name | 5 Gauge Set With Instrument Panel Tachometer 6000RPM 7 Colors Fit Marine Boat |
Material | Stainless Steel |
Water Temperature gauge | 40-120 degree |
Input | DC 24V |
Oil Pressure gauge | 0-5bar/0-10bar |
Fuel Level gauge | 0-190ohm/240-330hm |
Item Color | Black |
Protection Rank | IP 67 |
Sensor | Yes |
Application | Car/Boat/Truck/Marine etc. |

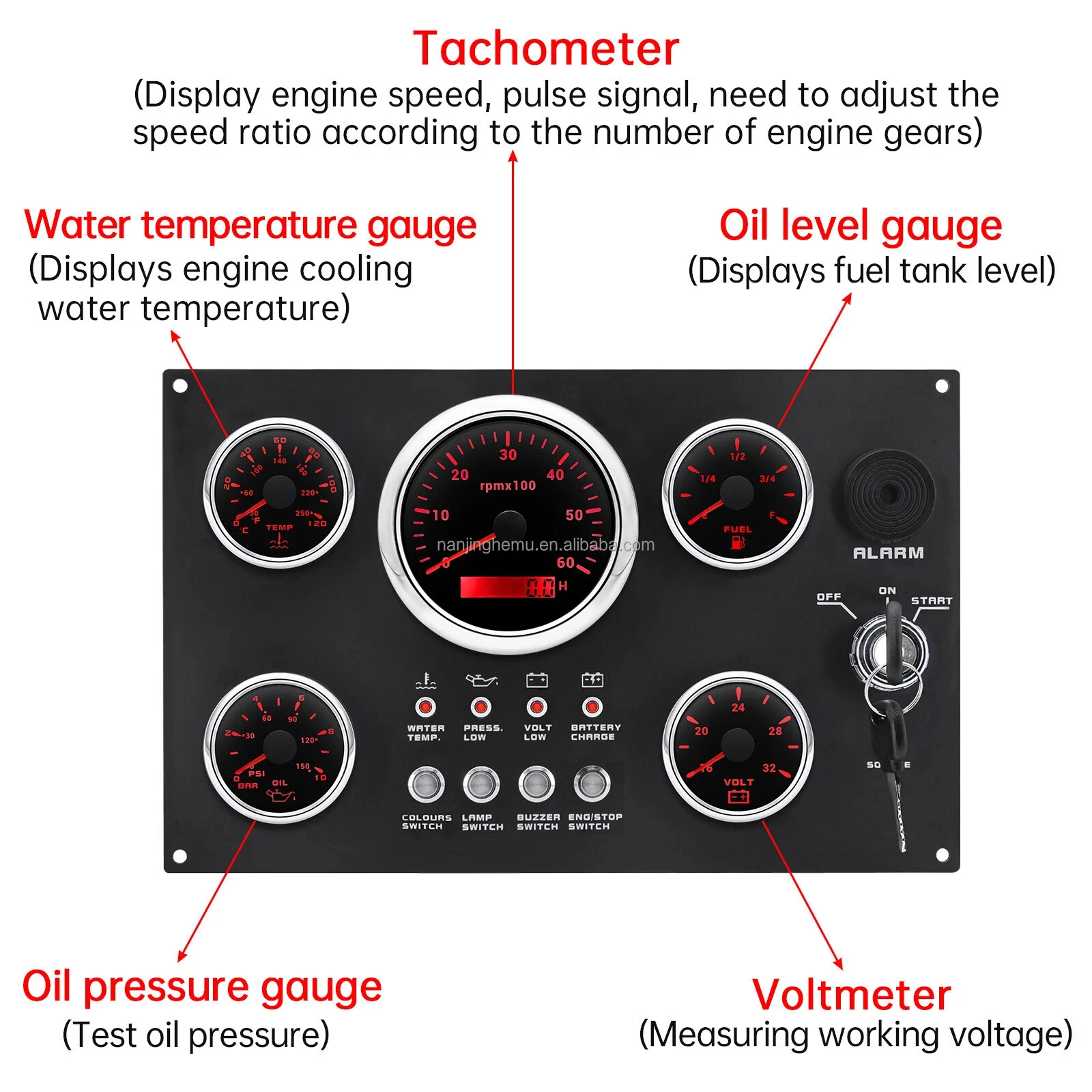

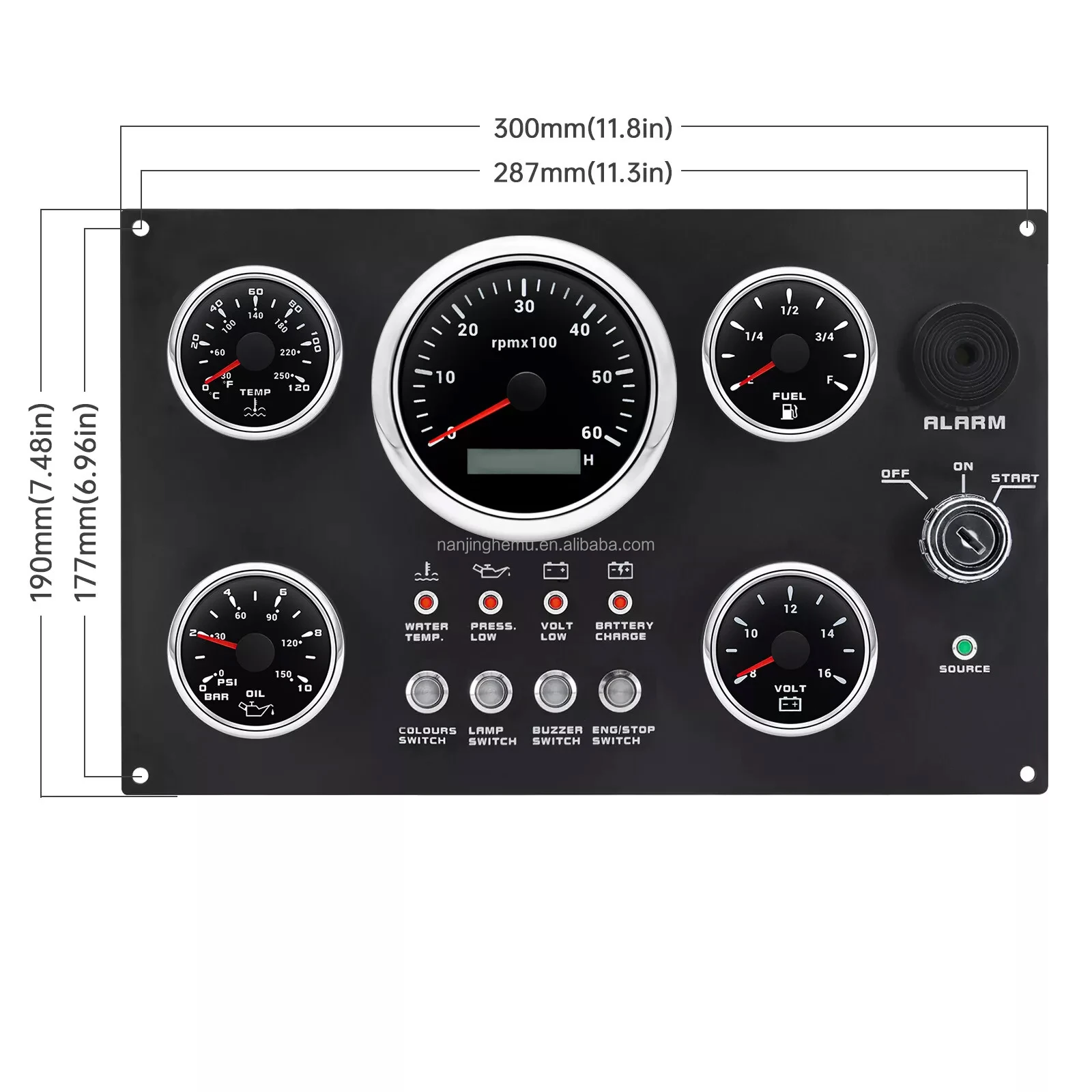

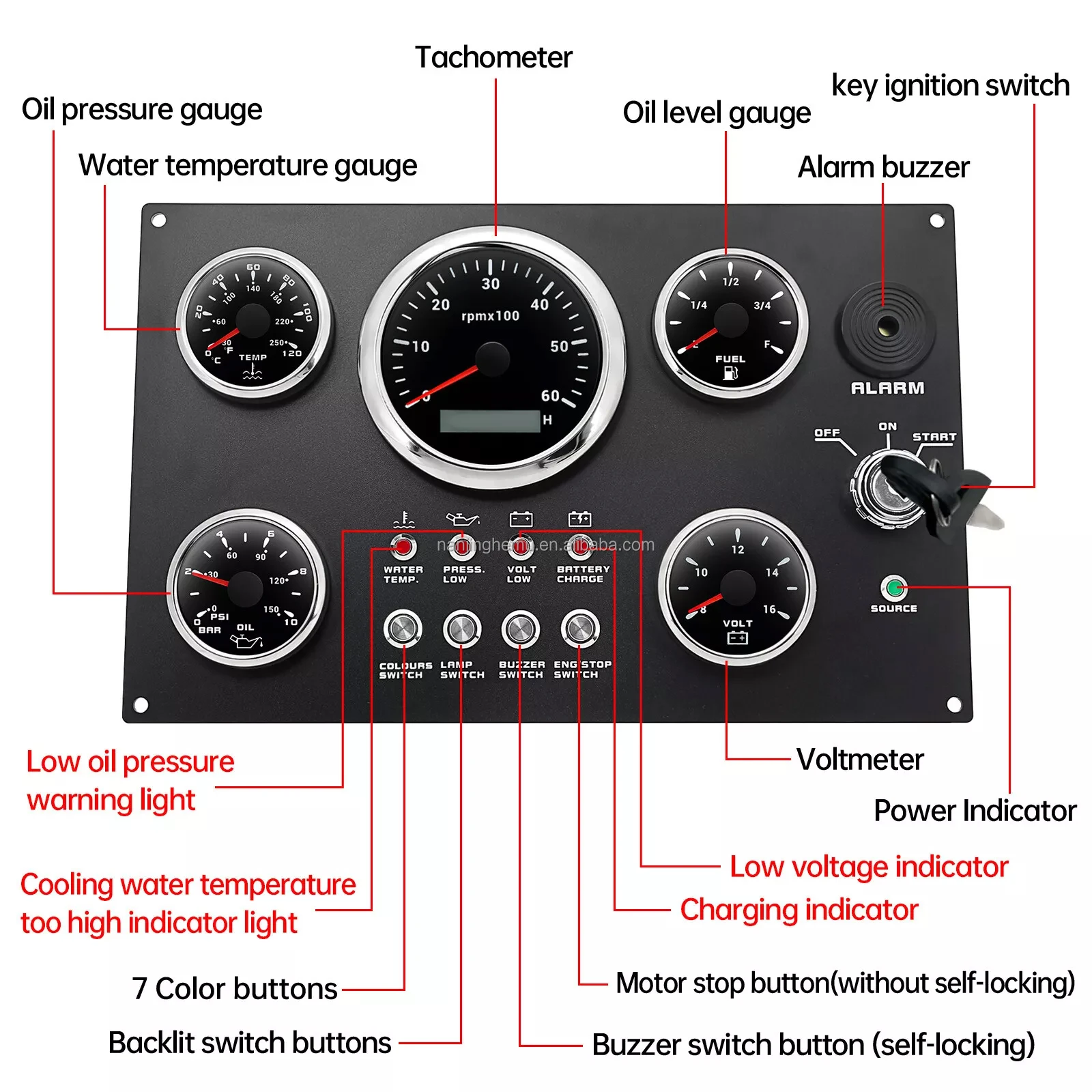

Feature:Analog Display Tachometer&Digital Display Hour Meter.Clear Lens.316 Stainless Steel Bezel with ABS Plastic Housing.Black Faceplate.Red Needle with 7 colors LED Illumination.With IP67 Waterproof.Rustproof.Anti-Fog&UV-Resistant.Hour Meter Records to 99999.9 Hours&Automatic Roll Over Resolution 0.1 Hour.Volt Gauge. Fuel Level Gauge.Water Temperature Gauge&Oil Pressure Gauge with Warning Function.Gauge Set (Except Volt Gauge) Requires 12 / 24 Volt Negative Ground Systems.Volt Gauge Requires 12 Volt Negative Ground Systems.One Year Limited Warranty for Non-Human Factor Damage & Free Lifetime Technical Support.Tachometer Install Diameter:Φ85mm or 3-3/8"Engine hours:0.0-99999.9HBacklight:7 Color backlightIndicating Range:0~6000RPMSignal:PulseFor Tachometer.you can substitute for different unit. please contact us before / after purchase or note on the order.Tachometer:0-4000rpm/0-3000RPM/7000RPM/6000RPMFuel Level GaugeSizes:52 mm (2-1/16")Measuring Range:Empty – FullResistance: 240 (E)-33 (F) ohmsBacklight:7 ColorsWater Temperature GaugeInstall diameter:Φ52mmIndication range:0~120??/30-250?HInput signal:287.4~22.4 ohmsStorage temperature:-40~+85?? Backlight:7 ColorsOil Pressure GaugeInstall diameter:Φ52mm or 2-1/16"Indication range:0~10bar/0-150 PSIInput signal: 10-184 ohmsOperating temperature:-30~+75?? Storage temperature:-40~+85?? Backlight: 7 ColorsVolt GaugeSizes: 52 mm (2-1/16")Measuring Range:8-16 (V)Backlight: 7 ColorsPACKAGED1x 85MM Tachometer1x 52MM Water Temperature Gauge1x 52MM Oil Pressure Gauge1x 52MM Fuel Level Gauge1x 52MM Voltmeter5 Wire Harness5 Holes Instrument PanelInstallation Manual
Shipping
Package: Using standard export neutral packaging.Shipping : 1. By Couriers: DHL. UPS. FEDEX. TNT. EMS etc.2. By Air: Delivery from the Shanghai airport to customers’ destination city airport3. By Sea: Delivery from the Shanghai sea port
FAQ
Q:1. Can I have a sample order?A: Yes. we welcome sample order to test and check the quality. Mixed samples are acceptable.Q:2. What about the lead time?A: 3-5 days for samples.Q:3. How do you ship the goods and how long does it take arrive?A: we often will ship by FEDEX. DHL.EMS.TNT and UPS etc. approximately 3-5 days. and will be different according to the destination. Airline and sea shipping is also optional.Q:4.How to proceed an order?A:Initially. let us know your requirements or application. Besides. We quote according to your requirements or our suggestions.Thirdly. customers confirms the samples and places deposit for formal order. Finally. We arrange the production.Q:5. How can I pay for the orders?A: Regard to payment.we can accept T/T.Western Union. Alipay.Q:6. Do you offer guarantee for the products?A: Yes. we offer 12 months for our products.Q:7.Do you test all your goods before delivery? A:Yes. we have 100% test before delivery.Q:8.Is there instruction installation?A: Yes. each gauge comes with instruction installation in the package.Q:9. How to contact us?A:Send your inquiry details in the below and click the "send"now.
If you have more questions. just contact us soon
