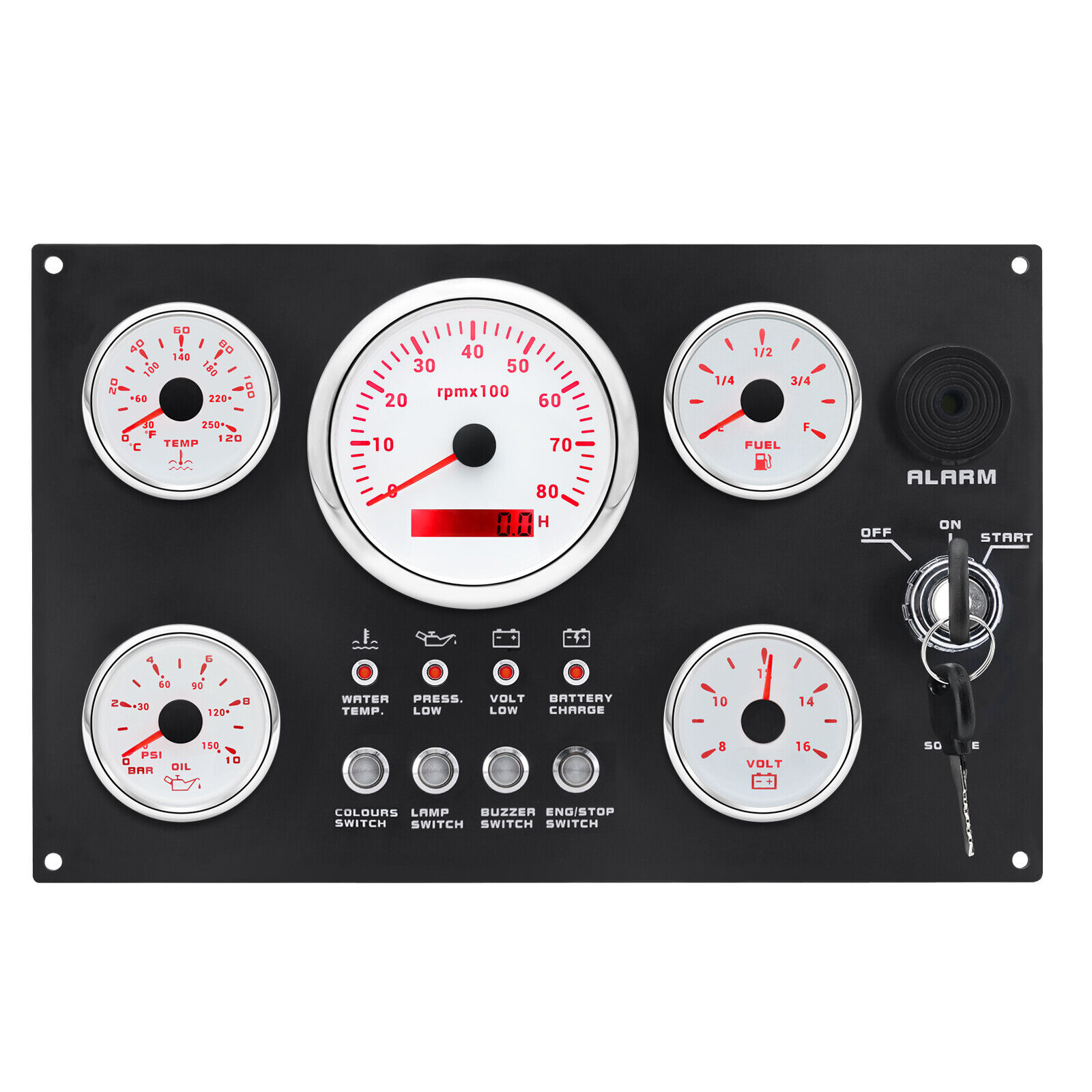

5 Gauge Set with Instrument Panel 0-8000 RPM 7 Colors LED For Marine Boat Yacht
Specification
Item | KUS Multi-function Gauge Panel 12V/24V Engine Panel Instrument Assembly with 5 Gauges and Ignition Key 335*200mm For Boat Car |
Description: | -Use moving-magnet principle to drive the needle. featuring good endurance and anti-vibration. -IP67 waterproof and dustproof grade -Stepper motors used for full range of stepping gauges. great feature with its less power consumption. longer life. higher precision. etc. -With curved glass (with anti-fogging function) -With ultra-wide working voltage design( long-term operating voltage: 9-32V. Maximum up to: 36V (≤ 1 min)) |

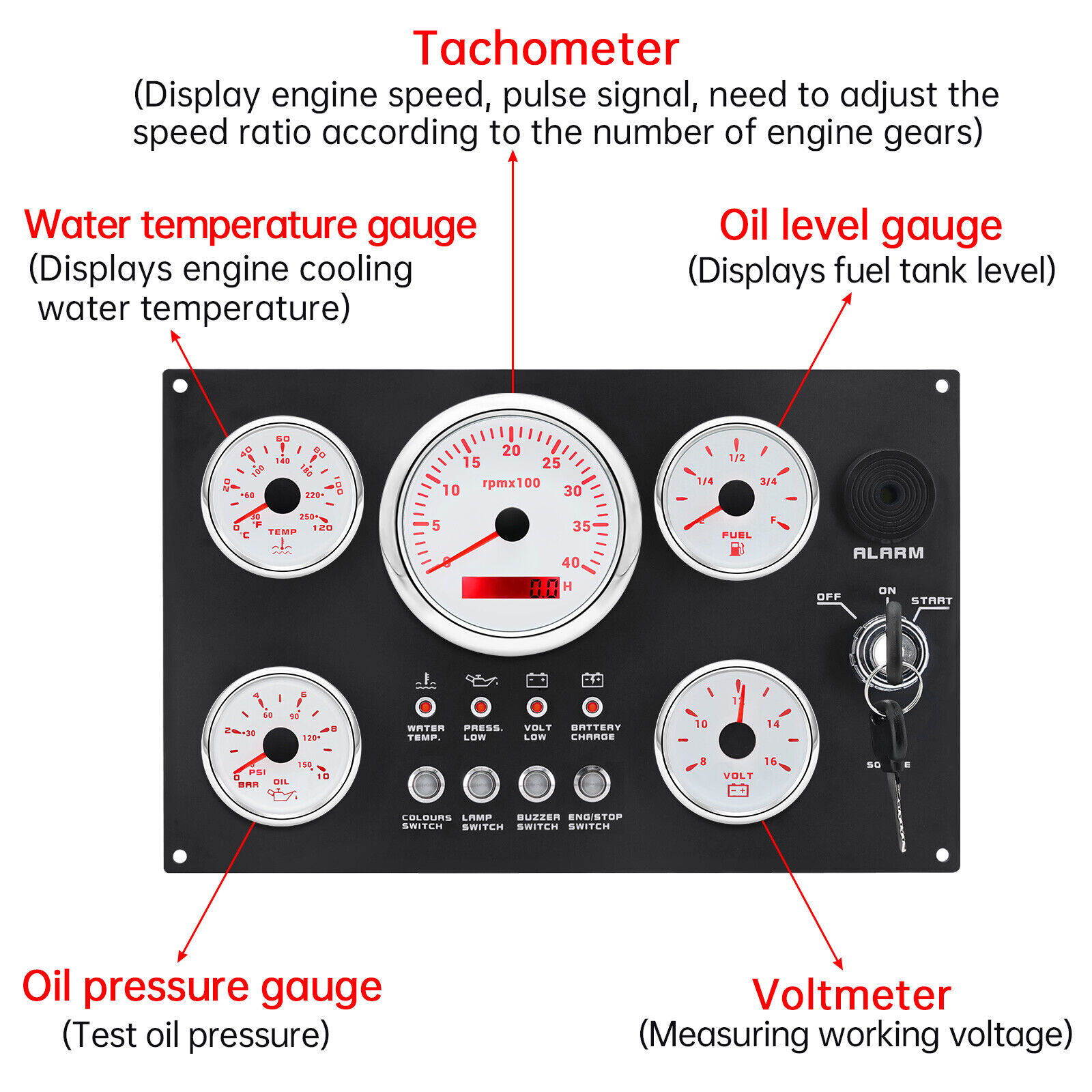

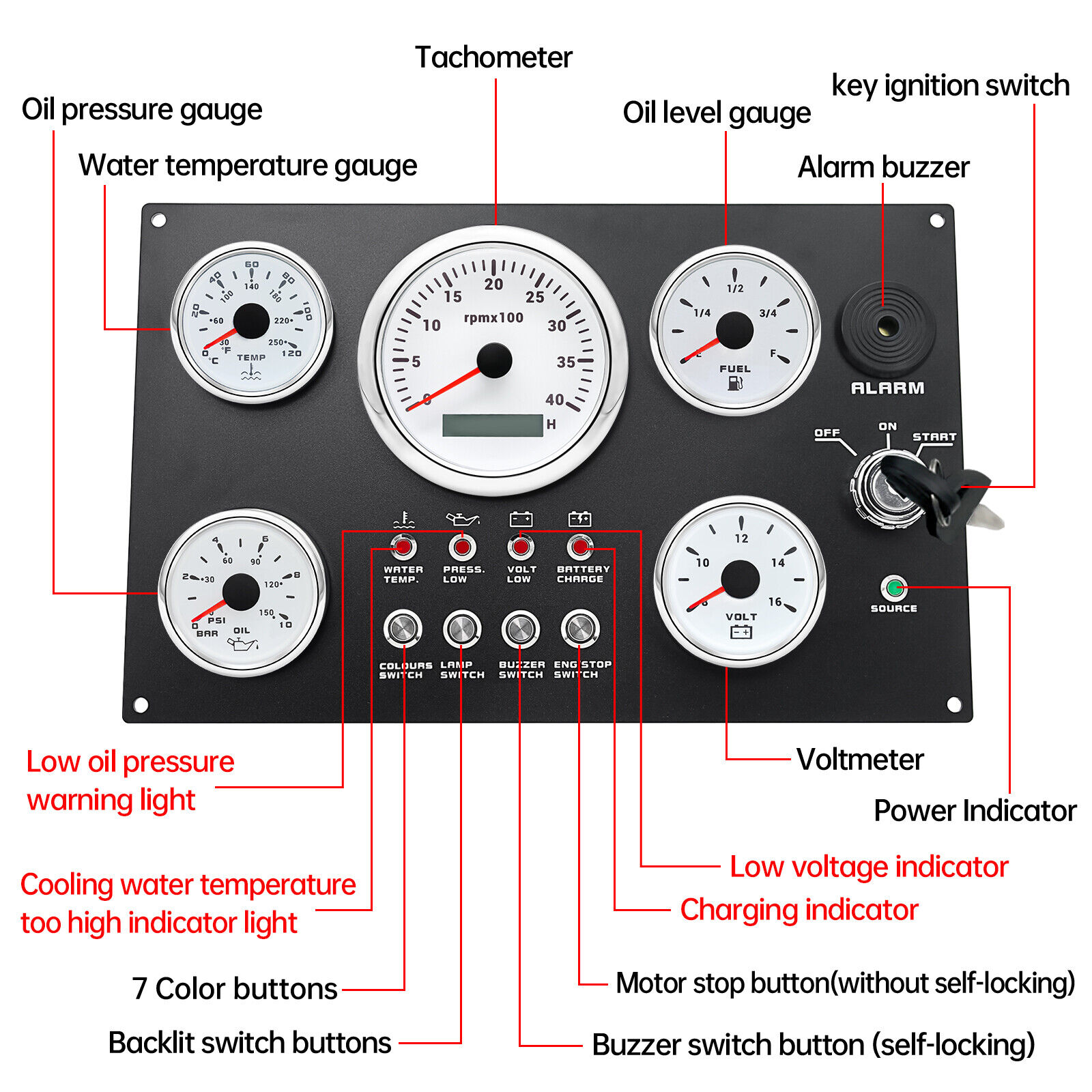

Features: | The gauge can be change: Tachometer with Digital Hour Meter:0-3000/4000/6000/7000/8000RPM Water Temperature gauge:40-120degree Oil Pressure gauge:0-5bar/0-10bar Volt meter:8-16V/16-32V Fuel Level gauge:0-190ohm/240-330hm Marine grade push button Switch (Engine Stop or Pre-heat) Marine grade Ignition key Sealed Key Switch. 4-position With Anti-restart 10A at 12V Four positions: Accessory – Off – Ignition/Accessory – Start. Spring return to Off. Key switch is constructed from engineering thermoplastic and is fully sealed using O-rings and ultrasonic welding to protect switch to ip67 (with connector installed). Plastic face nut and nickel-plated brass backing nut. Supplied with two matching keys. and with protective key boot. 2 tone Alarm Pizzo Siren |
Feature:Analog Display Tachometer & Digital Display Hour Meter.Clear Lens. 316 Stainless Steel Bezel with ABS Plastic Housing.Black Faceplate. Red Needle with 7 colors LED Illumination.With IP67 Waterproof. Rustproof. Anti-Fog & UV-Resistant.Hour Meter Records to 99999.9 Hours & Automatic Roll Over Resolution 0.1 Hour.Volt Gauge. Fuel Level Gauge. Water Temperature Gauge & Oil Pressure Gauge with Warning Function.Gauge Set (Except Volt Gauge) Requires 12 / 24 Volt Negative Ground Systems.Volt Gauge Requires 12 Volt Negative Ground Systems.One Year Limited Warranty for Non-Human Factor Damage & Free Lifetime Technical Support. Tachometer Install Diameter: Φ85mm or 3-3/8"Engine hours: 0.0-99999.9HBacklight :7 Color backlightIndicating Range: 0~3000RPMSignal: PulseFor Tachometer. you can substitute for different unit. please contact us before / after purchase or note on the order.Tachometer: 0-4000rpm/0-3000RPM/7000RPM/8000RPM Fuel Level GaugeSizes: 52 mm (2-1/16")Measuring Range: Empty – FullResistance: 240 (E) – 33 (F) ohmsBacklight: 7 ColorsWater Temperature GaugeInstall diameter: Φ52mmIndication range: 0~120??/30-250?HInput signal: 287.4~22.4 ohmsStorage temperature: -40~+85?? Backlight: 7 Colors Oil Pressure GaugeInstall diameter:Φ52mm or 2-1/16"Indication range:0~10bar / 0-150 PSIOperating temperature:-30~+75?? Storage temperature:-40~+85?? Backlight: 7 ColorsVolt GaugeSizes: 52 mm (2-1/16")Measuring Range: 8 – 16 (V)Backlight: 7 Colors PACKAGED1x Tachometer1x Water Temperature Gauge1x Oil Pressure Gauge1x Fuel Level Gauge1x Voltmeter5 Wire Harness5 Holes Instrument PanelInstallation Manual
Delivery and shipping
Company Profile
Hemu group specializing in automobile meters. Our product line covers tachometers. water temperature gauges. oil temperature gauges. oil pressure gauges. vacuum gauges. boost gauges and speedometers.
Our products are exported to Europe.the US and other areas all over the world. The goal is to provide
high-quality. high-efficiency. low-cost. environment protection and technical support for our friends.
Our products are exported to Europe.the US and other areas all over the world. The goal is to provide
high-quality. high-efficiency. low-cost. environment protection and technical support for our friends.
FAQ
Q:1. Can I have a sample order?A: Yes. we welcome sample order to test and check the quality. Mixed samples are acceptable.Q:2. What about the lead time?A: 3-5 days for samples.Q:3. How do you ship the goods and how long does it take arrive?A: we often will ship by FEDEX. DHL.EMS.TNT and UPS etc. approximately 3-5 days. and will be different according to the destination. Airline and sea shipping is also optional.Q:4.How to proceed an order?A:Initially. let us know your requirements or application. Besides. We quote according to your requirements or our suggestions.Thirdly. customers confirms the samples and places deposit for formal order. Finally. We arrange the production.Q:5. How can I pay for the orders?A: Regard to payment.we can accept T/T.Western Union. Alipay.Q:6. Do you offer guarantee for the products?A: Yes. we offer 12 months for our products.Q:7.Do you test all your goods before delivery? A:Yes. we have 100% test before delivery.Q:8.Is there instruction installation?A: Yes. each gauge comes with instruction installation in the package.Q:9. How to contact us?A:Send your inquiry details in the below and click the "send"now.
