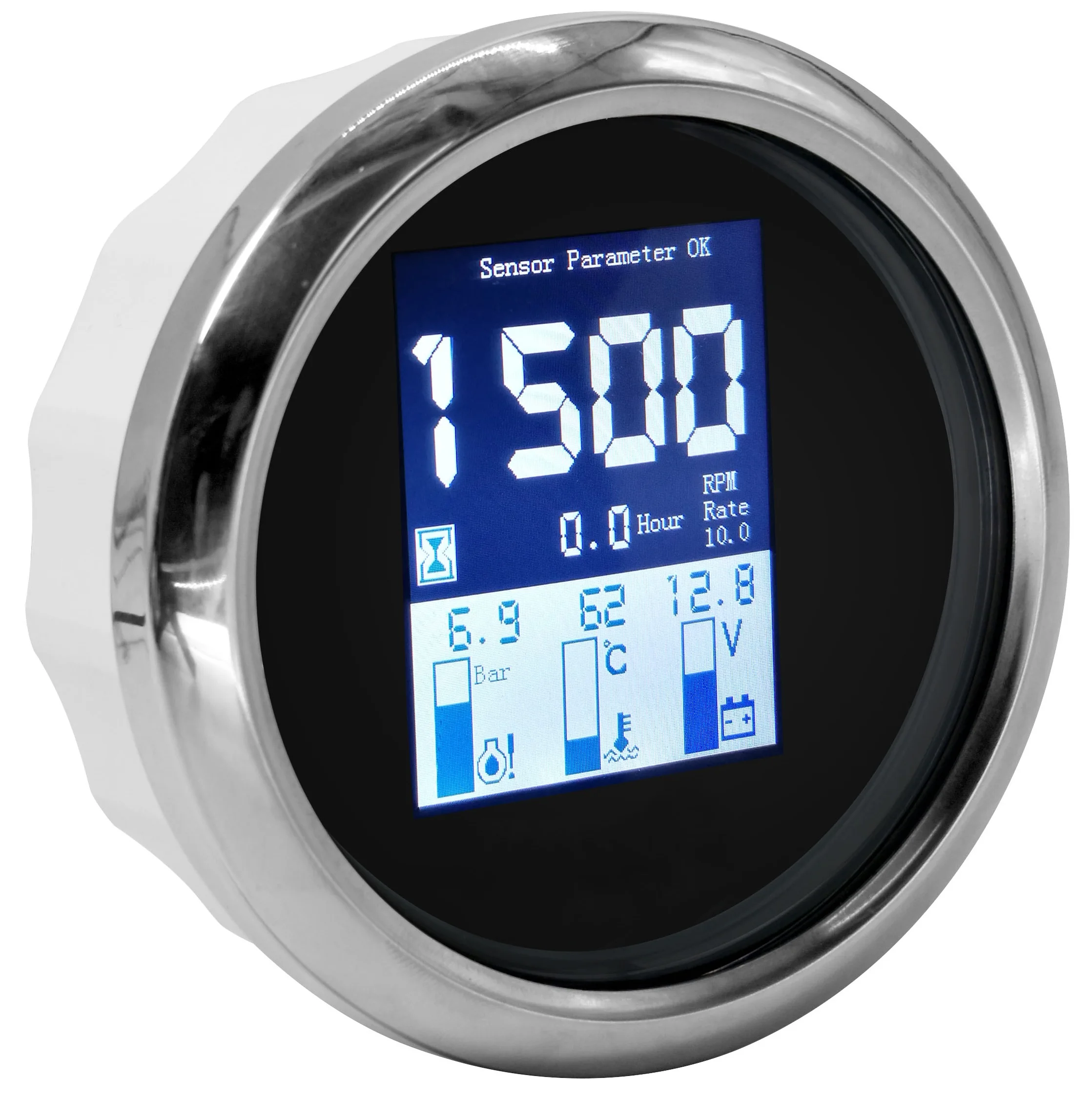

4 in 1 Digital Tachometer Gauge with Oil Pressure/Voltmeter/Water Temperature/Hour Meter Display
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$42.00
1000 in stock
1000 in stock
13
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Features
1.Engine speed: 0~9999RPM2.Engine oil pressure:0~10bar3.Engine temperature:40~120degrees4.Battery voltage: 9 V ~ 32 V5.Fuel level:0~100%6.Total engine hours:0.0~99999.9HSensor fault alarm
Description:1.Red LED display2. 316 Stainless steel bezel with the convex lens3. IP-67 Waterproof. Rustproof. UV Protection and anti-fog4. Easy installation by using pin-style wiring5. Low operation warning light function
Input Parameter(customizable):NMEA 2000 Standard for Serial-data Networking.
Specification
Type | 3-3/8" 85mm Black Faceplate Digital Tachometer Gauge with Oil pressure/Voltmeter/Water temperature/Hour meter Display |
Weight | 0.5kg |
Packaging size | 12*10*12cm |
Operating Temperature | -20~70degrees |
Power Consumption | ??120mA |
Storage Temperature | -30~80degrees |
Fixing dimension | 85mm(3-3/8") |
Working Voltage | 9-32V(12V/24V) |
NMEA2000 | J1939 |
Engine Parameters Engine Speed Engine tilt/trim Engine oil pressure Engine oil temperature Engine temperature Alternator potential Fuel rate Total engine hours Fluid Level Fuel Fresh Water Waste Water Live Well Oil Black Water(Sewage) Rudder Position COG & SOG Course Over Ground Speed Over Ground | Engine Speed Engine oil pressure Engine oil temperature Engine temperature Fuel rate Total engine hours Fluid Level |
