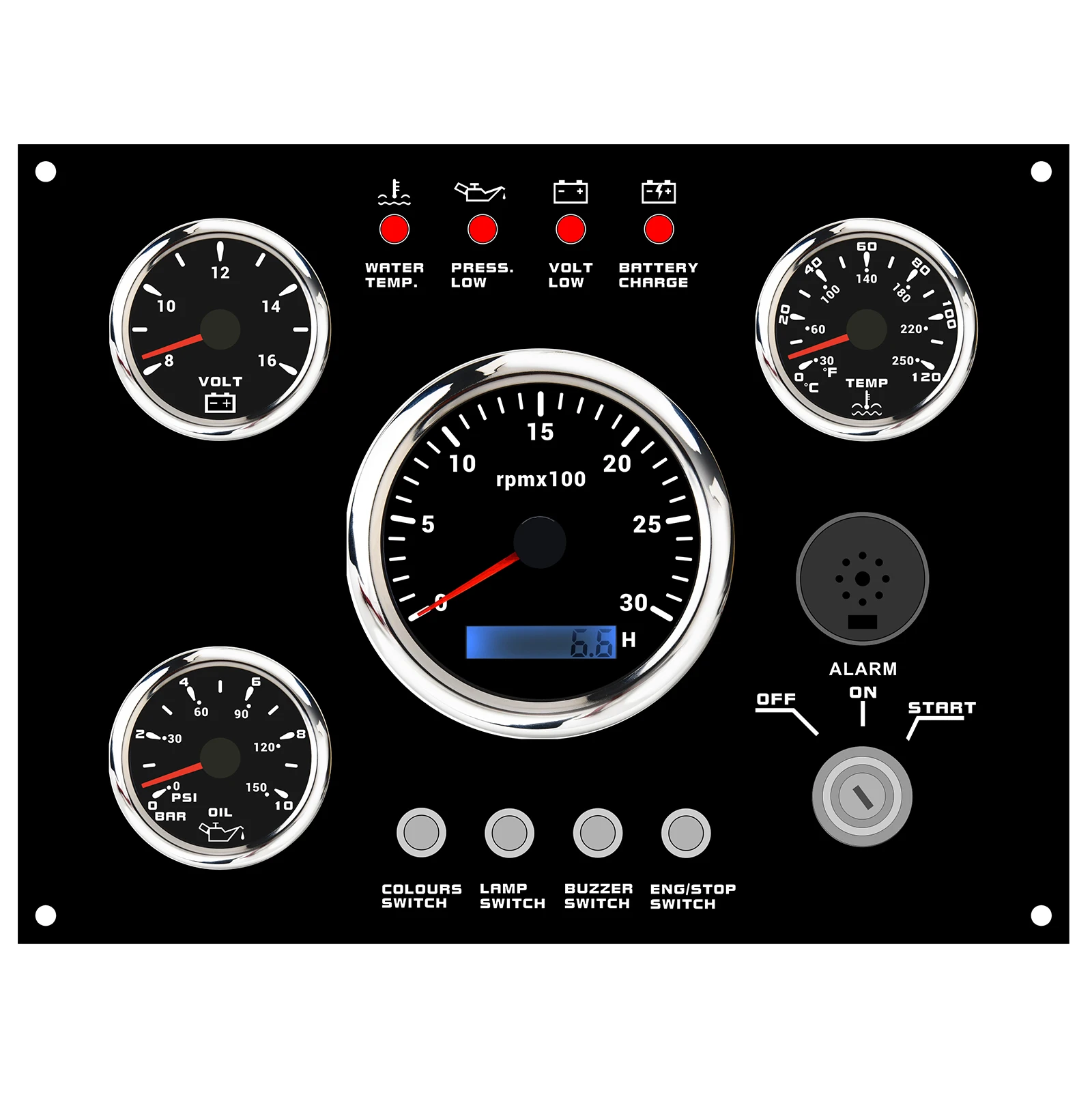

4 Gauge Set with Instrument Gauge Panel 0-3000RPM Tachometer Voltmeter Oil Pressure Water Temp for Marine Boat Yacht
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$149.00
17
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
1 Gauge Set with Instrument Panel 0-3000RPM Tachometer For Marine Boat Yacht
Specification
Feature:
* Analog Display Tachometer & Digital Display Hour Meter.
* Clear Lens. 316 Stainless Steel Bezel with ABS Plastic Housing.
* Black Faceplate. Red Needle with 7 colors LED Illumination.
* With IP67 Waterproof. Rustproof. Anti-Fog & UV-Resistant.
* Hour Meter Records to 99999.9 Hours & Automatic Roll Over Resolution 0.1 Hour.
* Volt Gauge. Fuel Level Gauge. Water Temperature Gauge & Oil Pressure Gauge with Warning Function.
* Gauge Set (Except Volt Gauge) Requires 12 / 24 Volt Negative Ground Systems.
* Volt Gauge Requires 12 Volt Negative Ground Systems.
* One Year Limited Warranty for Non-Human Factor Damage & Free Lifetime Technical Support.
Tachometer
* Install Diameter: Φ85mm or 3-3/8"
* Engine hours: 0.0-99999.9H
* Backlight :7 Color backlight
* Indicating Range: 0~3000RPM
* Signal: Pulse
* For Tachometer. you can substitute for different unit. please contact us before / after purchase or note on the order.
* Tachometer: 0-3000rpm/4000rpm/0-6000RPM/7000RPM/8000RPM
Water Temperature Gauge
* Install diameter: Φ52mm
* Indication range: 0~120??/30-250?H
* Input signal: 287.4~22.4 ohms
* Storage temperature: -40~+85??
* Backlight: 7 Colors
Oil Pressure Gauge
* Install diameter:Φ52mm or 2-1/16"
* Indication range:0~10bar / 0-150 PSI
* Operating temperature:-30~+75??
* Storage temperature:-40~+85??
* Backlight: 7 Colors
Volt Gauge
* Sizes: 52 mm (2-1/16")
* Measuring Range: 8 – 16 (V)
* Backlight: 7 Colors
PACKAGED
* 1x Tachometer
* 1x Water Temperature Gauge
* 1x Oil Pressure Gauge
* 1x Voltmeter
* 4x Wire Harness
* 1x Instrument Panel
* 1xInstallation Manual
* Analog Display Tachometer & Digital Display Hour Meter.
* Clear Lens. 316 Stainless Steel Bezel with ABS Plastic Housing.
* Black Faceplate. Red Needle with 7 colors LED Illumination.
* With IP67 Waterproof. Rustproof. Anti-Fog & UV-Resistant.
* Hour Meter Records to 99999.9 Hours & Automatic Roll Over Resolution 0.1 Hour.
* Volt Gauge. Fuel Level Gauge. Water Temperature Gauge & Oil Pressure Gauge with Warning Function.
* Gauge Set (Except Volt Gauge) Requires 12 / 24 Volt Negative Ground Systems.
* Volt Gauge Requires 12 Volt Negative Ground Systems.
* One Year Limited Warranty for Non-Human Factor Damage & Free Lifetime Technical Support.
Tachometer
* Install Diameter: Φ85mm or 3-3/8"
* Engine hours: 0.0-99999.9H
* Backlight :7 Color backlight
* Indicating Range: 0~3000RPM
* Signal: Pulse
* For Tachometer. you can substitute for different unit. please contact us before / after purchase or note on the order.
* Tachometer: 0-3000rpm/4000rpm/0-6000RPM/7000RPM/8000RPM
Water Temperature Gauge
* Install diameter: Φ52mm
* Indication range: 0~120??/30-250?H
* Input signal: 287.4~22.4 ohms
* Storage temperature: -40~+85??
* Backlight: 7 Colors
Oil Pressure Gauge
* Install diameter:Φ52mm or 2-1/16"
* Indication range:0~10bar / 0-150 PSI
* Operating temperature:-30~+75??
* Storage temperature:-40~+85??
* Backlight: 7 Colors
Volt Gauge
* Sizes: 52 mm (2-1/16")
* Measuring Range: 8 – 16 (V)
* Backlight: 7 Colors
PACKAGED
* 1x Tachometer
* 1x Water Temperature Gauge
* 1x Oil Pressure Gauge
* 1x Voltmeter
* 4x Wire Harness
* 1x Instrument Panel
* 1xInstallation Manual
* 3*sensor
Speed ratio adjustment: Press and hold the black rubber button for 3 seconds toenter the speed ratio setting mode. if you release the buttonfor 3 seconds. Exit the ratio setting mode. and automaticallsave the set data. After entering the setting mode . press and hold the buttonto increase the value . release the button . and then press andhold the button . the number keeps decreasing : Speed ratioadjustment range : 1-360 . adjust to the speed ra tio you wantrelease the button for 3 secon ds . the number is automaticallsaved. If your sensor is installed on the flywheel . the speed ratiovalue is equal to the number of engine gears : if the speedsignal is taken from the W point signal . The speed ratio isequal to half of the number of electrodes ( Poles / 2 ). Default ratio : 138.
Product Name | 4 Gauge Set with Instrument Gauge Panel 0-3000RPM Tachometer Voltmeter Oil Pressure Water Temp for Marine Boat Yacht |
Gauge | 4 gauges |
