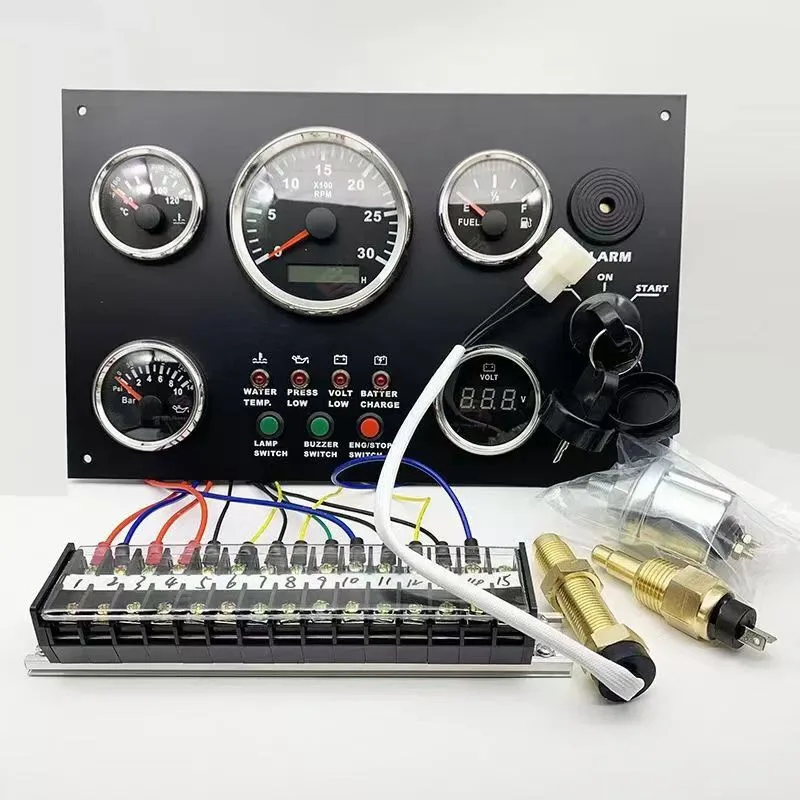

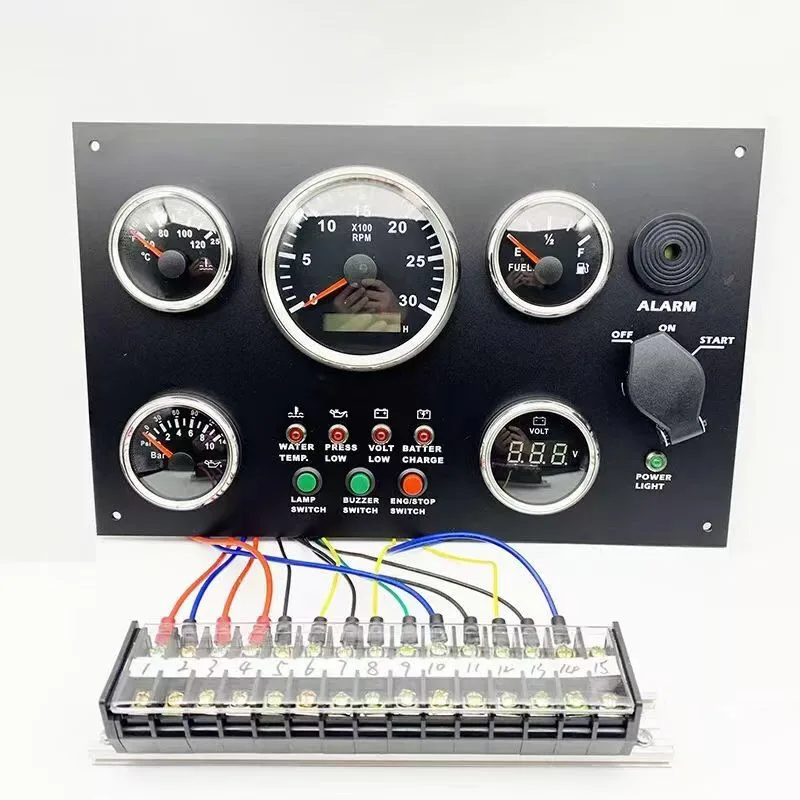

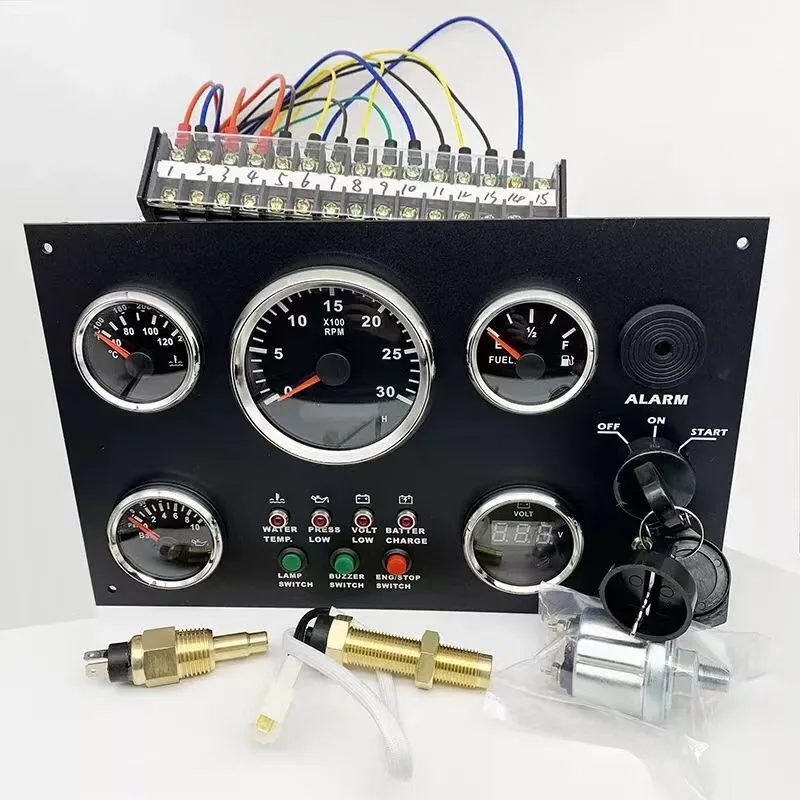

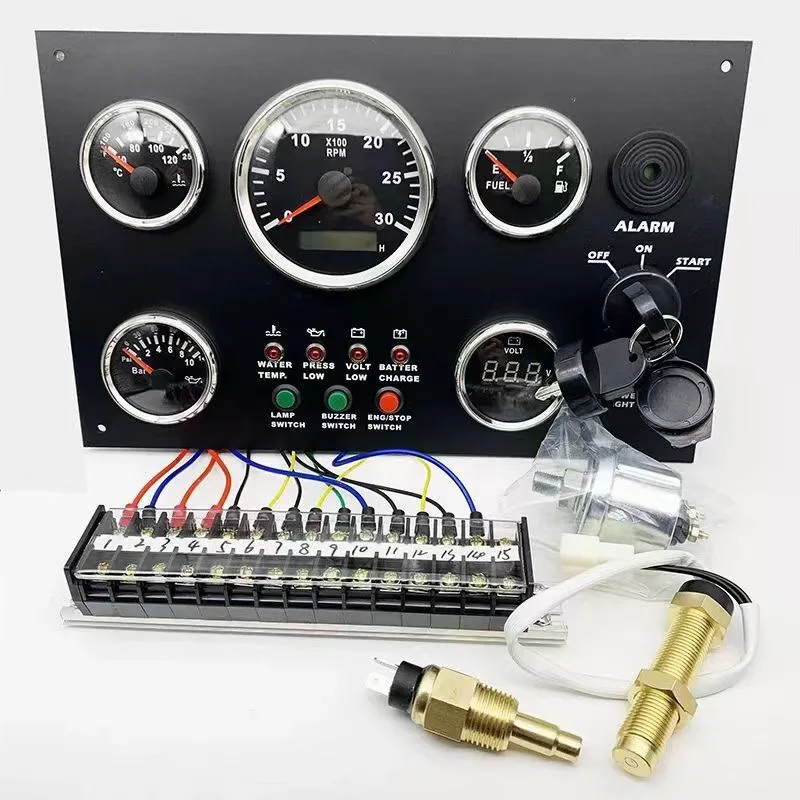

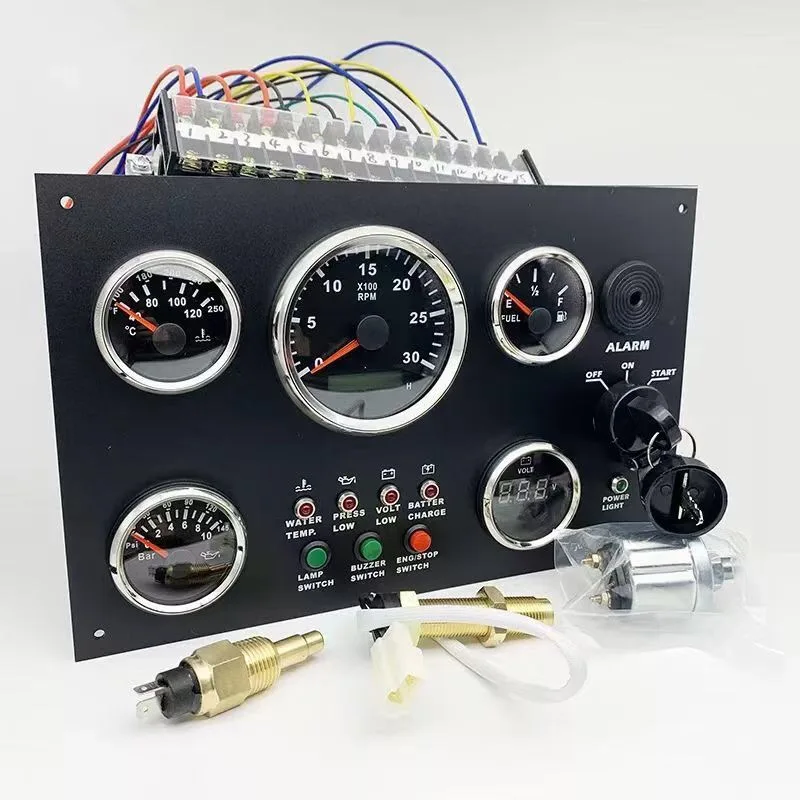

300*190mm Waterproof Marine Instrument Panel Boat Instrument Panel
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$139.00
17
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Generator Engine Control Panel 3000 4000 RPM Oil Pressure Oil Temperature Water Temperature Voltage Fuel Level
Specification
Product Name | Gauge Meter Panel |
Material | Stainless Steel |
Water Temperature gauge | 40-120 degree |
Input | DC 24V |
Oil Pressure gauge | 0-5bar/0-10bar |
Fuel Level gauge | 0-190ohm/240-330hm |
Item Color | Black |
Protection Rank | IP 67 |
Sensor | Yes |
Application | Car/Boat/Truck/Marine etc. |
Product Description:
1.Use moving-magnet principle to drive the needle. featuring good endurance and anti-vibration.
2.IP67 waterproof and dustproof grade
3.Stepper motors used for full range of stepping gauges. great feature with its less power consumption. longer life. higher
precision. etc.
4.With curved glass (with anti-fogging function)
5.With ultra-wide working voltage design( long-term operating voltage: 9-32V. Maximum up to: 36V (≤ 1 min))
Features:
The gauge can be change
Tachometer with Digital Hour Meter:0-3000/4000/6000/7000/8000RPM
Water Temperature gauge:40-120degree
Oil Pressure gauge:0-5bar/0-10bar
Volt meter:8-16V/16-32V
Fuel Level gauge:0-190ohm/240-330hm
Marine grade push button Switch (Engine Stop or Pre-heat)
Marine grade Ignition key
Sealed Key Switch. 4-position With Anti-restart
10A at 12V
Four positions: Accessory – Off – Ignition/Accessory – Start. Spring return to Off.
Key switch is constructed from engineering thermoplastic and is fully sealed using O-rings and ultrasonic welding to protect
switch to ip67 (with connector installed).
Plastic face nut and nickel-plated brass backing nut. Supplied with two matching keys. and with protective key boot.
2 tone Alarm Pizzo Siren
1.Use moving-magnet principle to drive the needle. featuring good endurance and anti-vibration.
2.IP67 waterproof and dustproof grade
3.Stepper motors used for full range of stepping gauges. great feature with its less power consumption. longer life. higher
precision. etc.
4.With curved glass (with anti-fogging function)
5.With ultra-wide working voltage design( long-term operating voltage: 9-32V. Maximum up to: 36V (≤ 1 min))
Features:
The gauge can be change
Tachometer with Digital Hour Meter:0-3000/4000/6000/7000/8000RPM
Water Temperature gauge:40-120degree
Oil Pressure gauge:0-5bar/0-10bar
Volt meter:8-16V/16-32V
Fuel Level gauge:0-190ohm/240-330hm
Marine grade push button Switch (Engine Stop or Pre-heat)
Marine grade Ignition key
Sealed Key Switch. 4-position With Anti-restart
10A at 12V
Four positions: Accessory – Off – Ignition/Accessory – Start. Spring return to Off.
Key switch is constructed from engineering thermoplastic and is fully sealed using O-rings and ultrasonic welding to protect
switch to ip67 (with connector installed).
Plastic face nut and nickel-plated brass backing nut. Supplied with two matching keys. and with protective key boot.
2 tone Alarm Pizzo Siren
