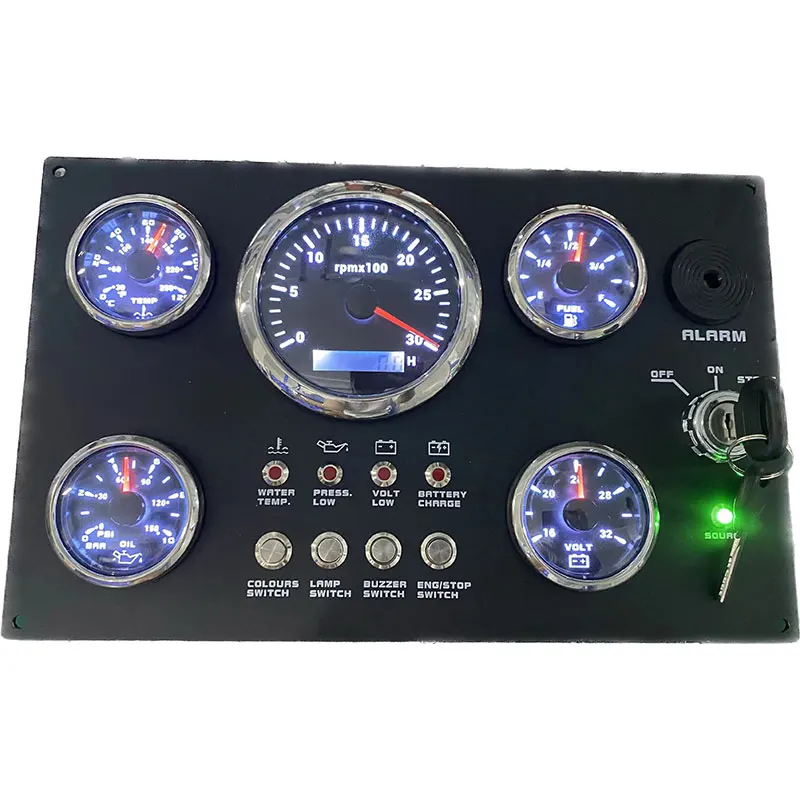

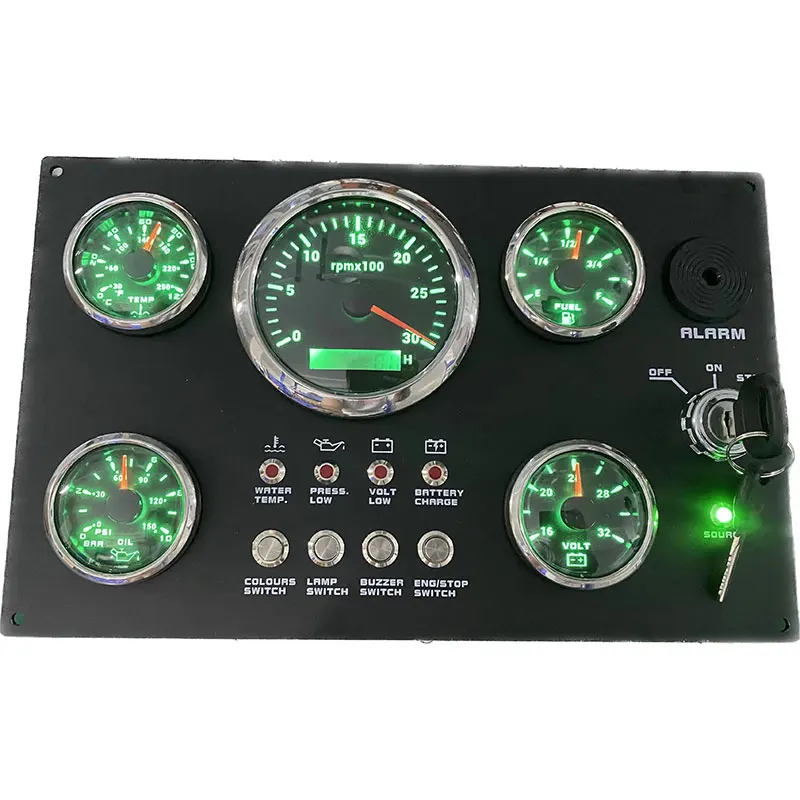

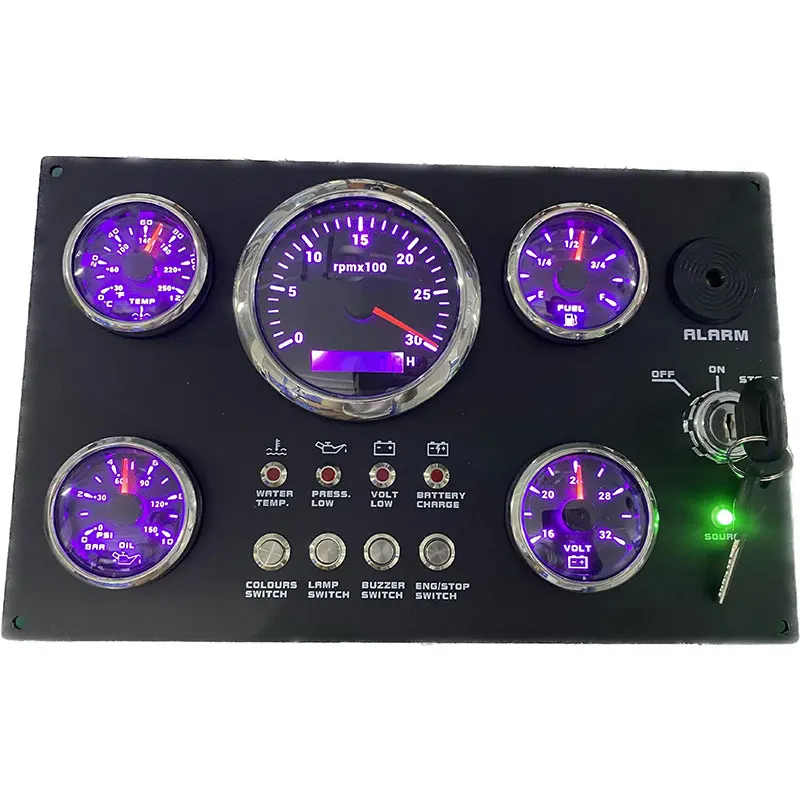

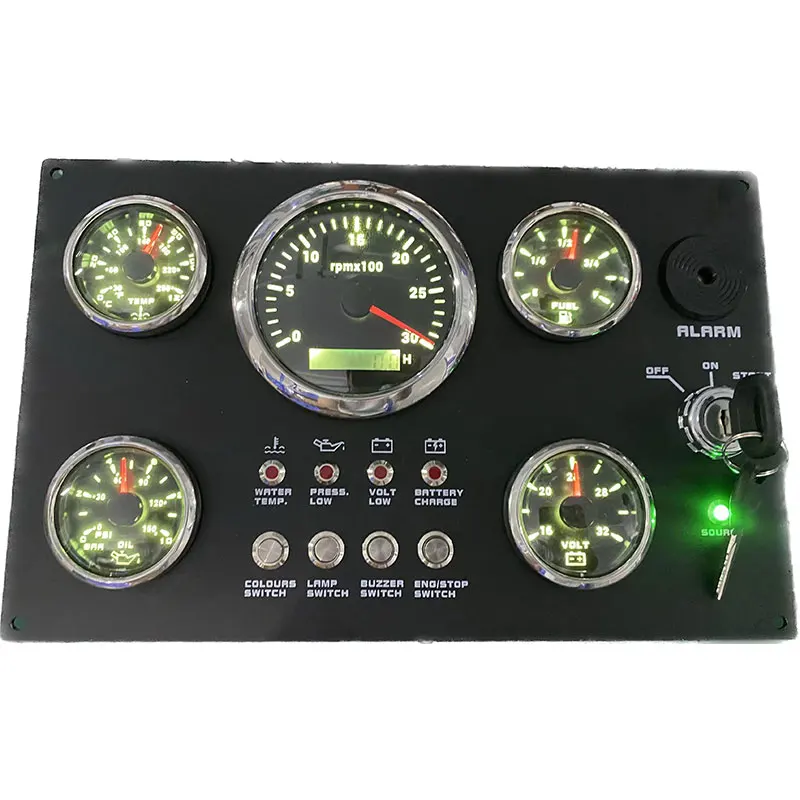

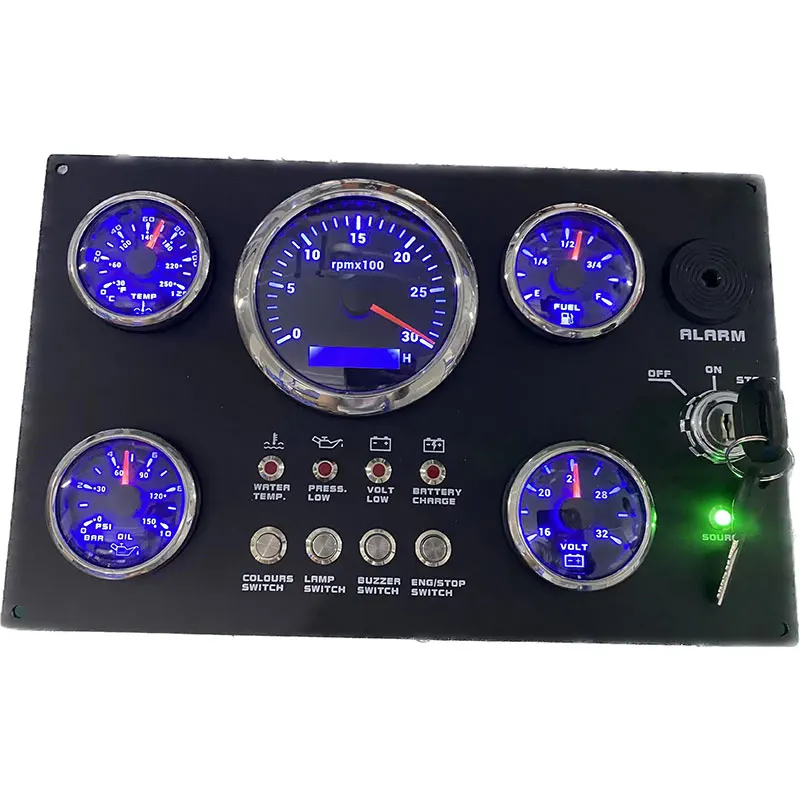

300*190mm 8-32V 4K RPM Marine Gauge Panel Boat Instrument Panel Boat Dashboards
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$149.00
1000 in stock
1000 in stock
19
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
300*190mm 8-32V 4K RPM Marine Gauge Panel Boat Instrument Panel Boat Dashboards
Specification
Item | Marine Boats Car DC12V/24V Engine Gauge Auto Instrument Panel |
Description: | -Use moving-magnet principle to drive the needle. featuring good endurance and anti-vibration. -IP67 waterproof and dustproof grade -Stepper motors used for full range of stepping gauges. great feature with its less power consumption. longer life. higher precision. etc. -With curved glass (with anti-fogging function) -With ultra-wide working voltage design( long-term operating voltage: 9-32V. Maximum up to: 36V (≤ 1 min)) |
Features: | The gauge can be change: Tachometer with Digital Hour Meter:0-3000/4000/6000/7000/8000RPM Water Temperature gauge:40-120degree Oil Pressure gauge:0-5bar/0-10bar Volt meter:8-16V/16-32V Fuel Level gauge:0-190ohm/240-330hm Marine grade push button Switch (Engine Stop or Pre-heat) Marine grade Ignition key Sealed Key Switch. 4-position With Anti-restart 10A at 12V Four positions: Accessory – Off – Ignition/Accessory – Start. Spring return to Off. Key switch is constructed from engineering thermoplastic and is fully sealed using O-rings and ultrasonic welding to protect switch to ip67 (with connector installed). Plastic face nut and nickel-plated brass backing nut. Supplied with two matching keys. and with protective key boot. 2 tone Alarm Pizzo Siren |
Speed ratio adjustment: Press and hold the black rubber button for 3 seconds toenter the speed ratio setting mode. if you release the buttonfor 3 seconds. Exit the ratio setting mode. and automaticallsave the set data. After entering the setting mode . press and hold the buttonto increase the value . release the button . and then press andhold the button . the number keeps decreasing : Speed ratioadjustment range : 1-360 . adjust to the speed ra tio you wantrelease the button for 3 secon ds . the number is automaticallsaved. If your sensor is installed on the flywheel . the speed ratiovalue is equal to the number of engine gears : if the speedsignal is taken from the W point signal . The speed ratio isequal to half of the number of electrodes ( Poles / 2 ). Default ratio : 138.
Why Choose Us
Delivery and shipping
Company Profile
Hemu group specializing in automobile meters. Our product line covers tachometers. water temperature gauges. oil temperature gauges. oil pressure gauges. vacuum gauges. boost gauges and speedometers.
Our products are exported to Europe.the US and other areas all over the world. The goal is to provide
high-quality. high-efficiency. low-cost. environment protection and technical support for our friends.
Our products are exported to Europe.the US and other areas all over the world. The goal is to provide
high-quality. high-efficiency. low-cost. environment protection and technical support for our friends.
FAQ
Q:1. Can I have a sample order?A: Yes. we welcome sample order to test and check the quality. Mixed samples are acceptable.Q:2. What about the lead time?A: 3-5 days for samples.Q:3. How do you ship the goods and how long does it take arrive?A: we often will ship by FEDEX. DHL.EMS.TNT and UPS etc. approximately 3-5 days. and will be different according to the destination. Airline and sea shipping is also optional.Q:4.How to proceed an order?A:Initially. let us know your requirements or application. Besides. We quote according to your requirements or our suggestions.Thirdly. customers confirms the samples and places deposit for formal order. Finally. We arrange the production.Q:5. How can I pay for the orders?A: Regard to payment.we can accept T/T.Western Union. Alipay.Q:6. Do you offer guarantee for the products?A: Yes. we offer 12 months for our products.Q:7.Do you test all your goods before delivery? A:Yes. we have 100% test before delivery.Q:8.Is there instruction installation?A: Yes. each gauge comes with instruction installation in the package.Q:9. How to contact us?A:Send your inquiry details in the below and click the "send"now.
If you have more questions. just contact us soon
