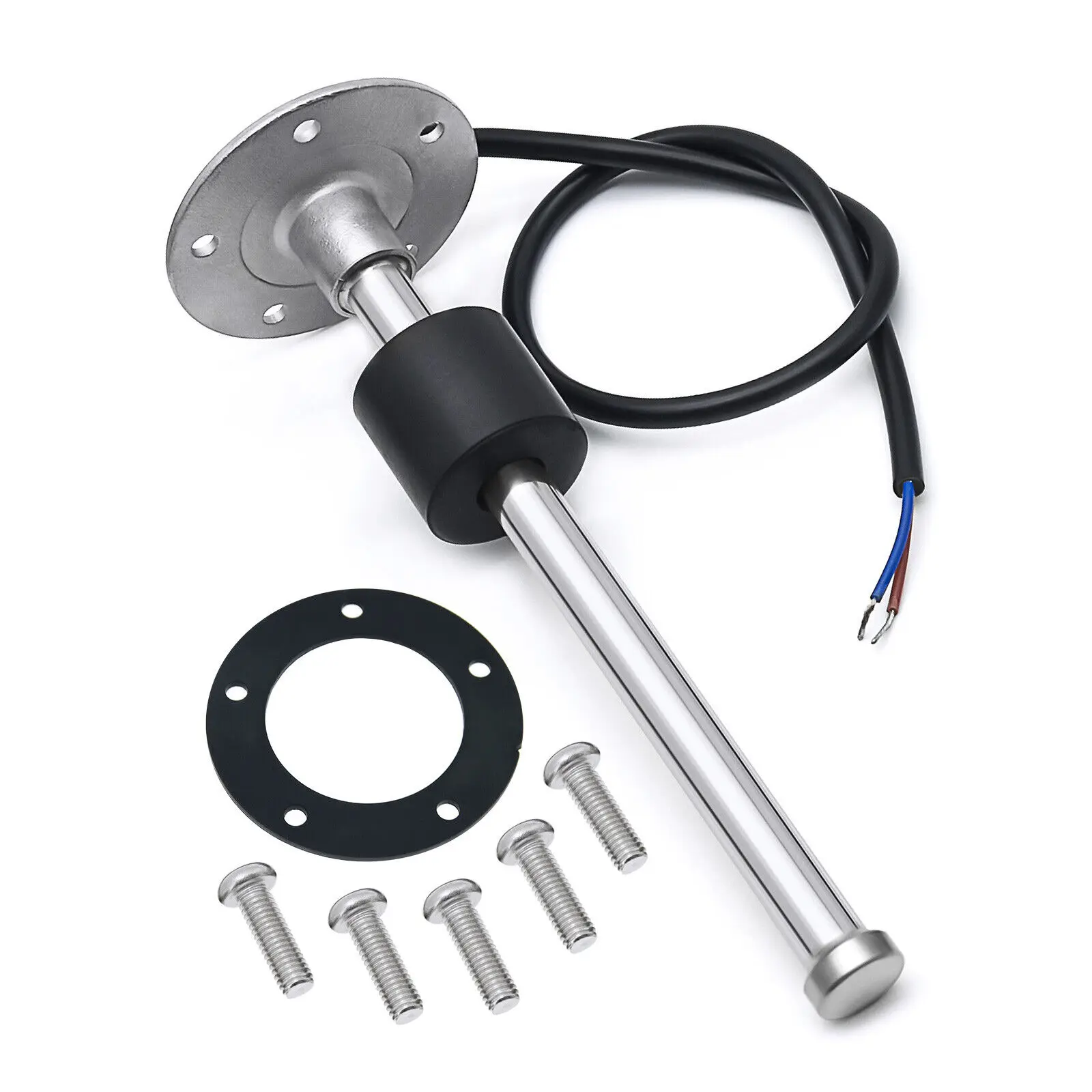

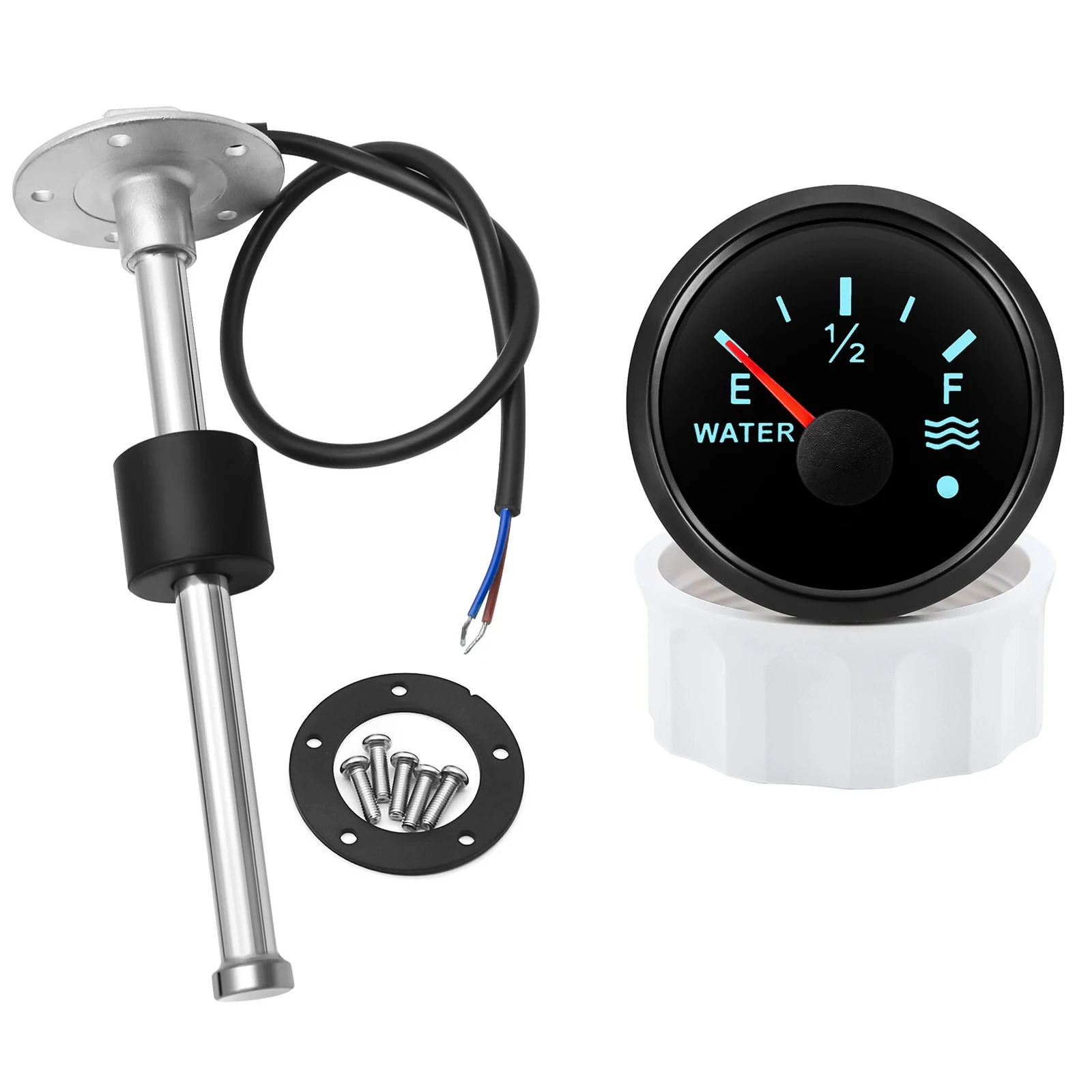

200mm Marine Boat Water Sending Unit with 52mm Water Level Tank Gauge 240-33ohms
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$21.90
1000 in stock
1000 in stock
12
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
200mm Marine Boat Water Sending Unit with 52mm Water Level Tank Gauge 240-33ohms
Features

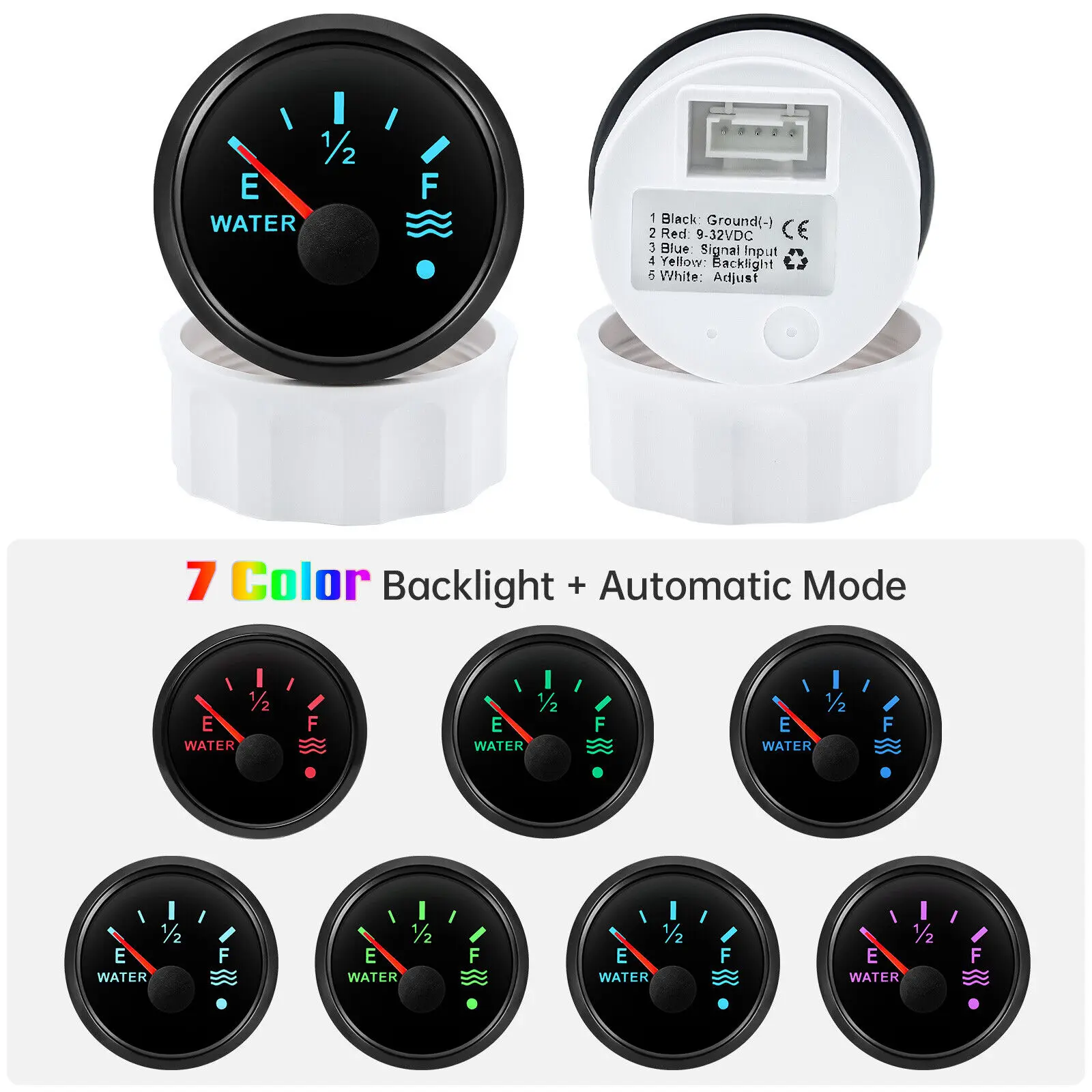

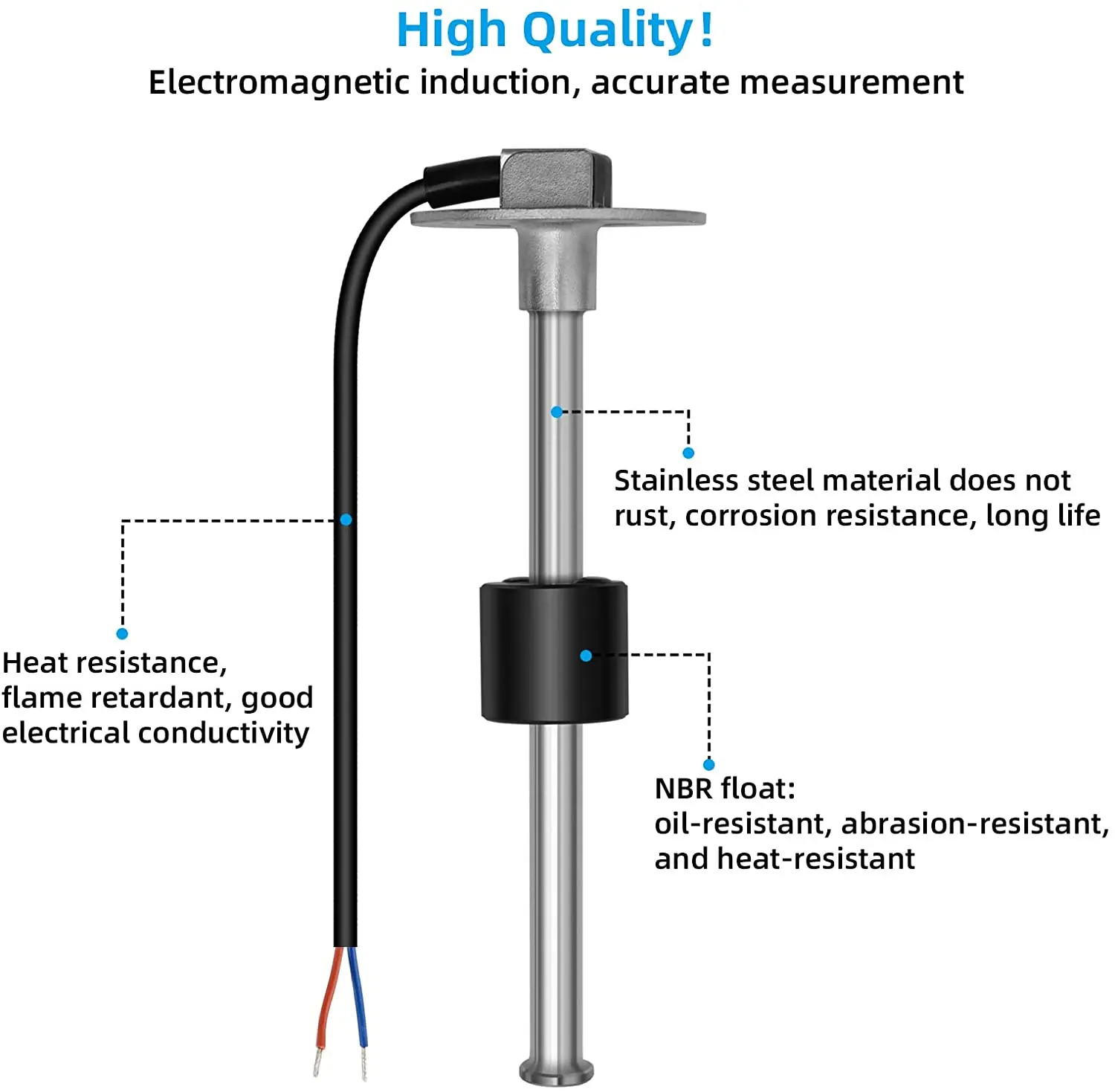

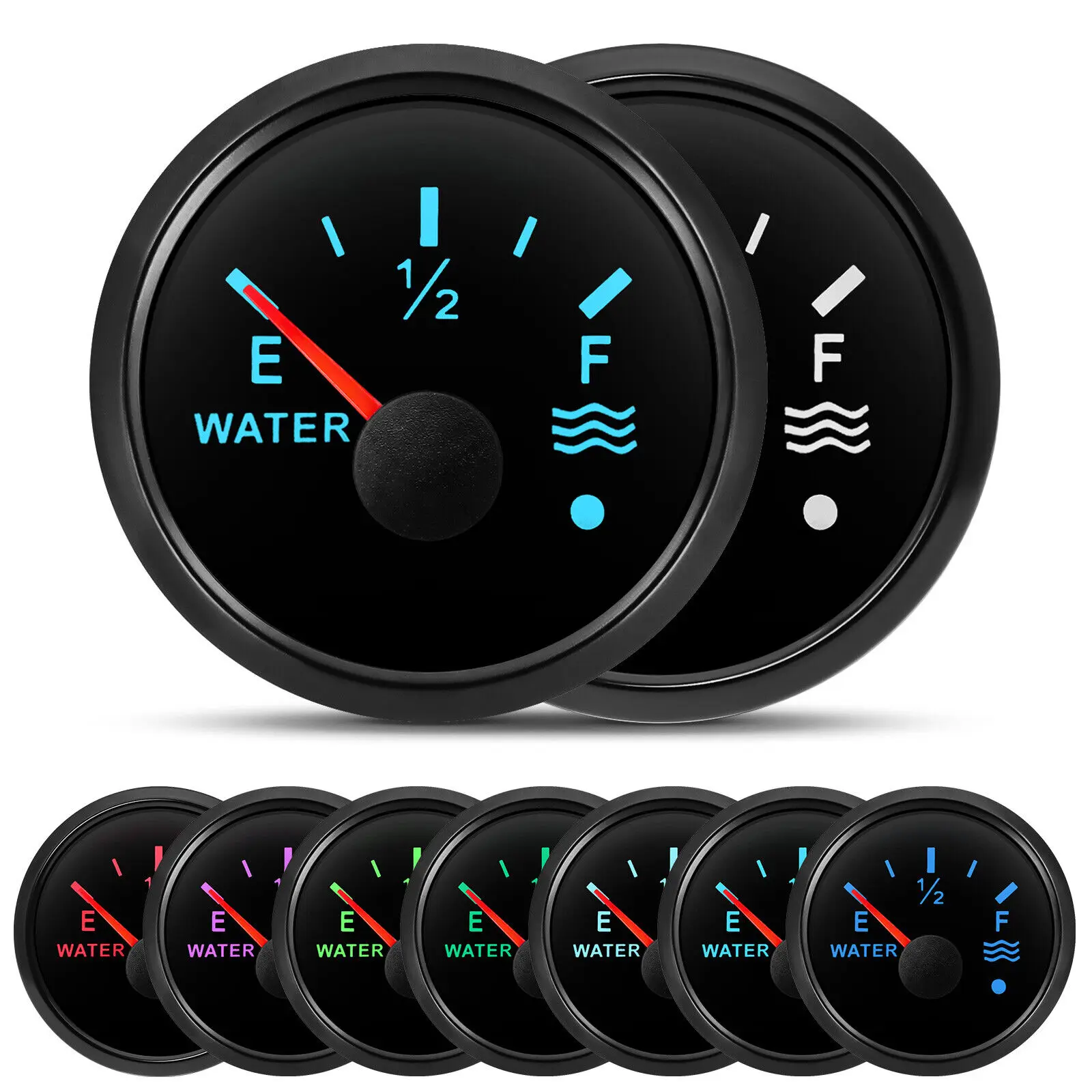

Gauge ConnectionBlack: Ground(-)Red: 9-30VDC(+)Blue: signal Input Connect the signal of the fuel senderYellow: Backlight(+)White: AdjustSender connection:Brown: Signal outputBlue: Negative(-)DescriptionSuitable for truck. generators/gen set. bus and marine field.Widely used in fuel. waste water.Reed switch. steady output signal.Simple and stronge structure . Advanced corrosion resistance.Long using life. anti-vibration.anti-explosion.High quality fuel level senser.Economical level sensing solution. long service lifespan. Fuel/Water Level Gauge Specification:Size: dia 52mmBacklight: 7Colors LEDIndicating Range:E- FWorking voltage: 9-32VWaterproof rating: IP67Material: Stainless steelSignal: 240-33ohmsWorking Temperature: -30~+75Storage Temperature: -40~+85Color: BlackSensor Specification:Level Sensor Length: 200mmMaterial: 316 Stainless SteelProtection Rank: IP67Resistance output signal: 240-33 ohm(Standard American)Operational Temperature: -40°F ~ +185°F (-40?? ~ +85??)Screw size: M5*16Level Sensor Support Water Level Gauge and Fuel Level Gauge Package Include:1 x 52mm Fuel Level Gauge1 x 140mm Fuel Level Sensor1 x Gasket5 x Screws INSTRUCTIONSBlue – GroundBrown- connect to instrument signal lineThe sensor can not be connected to the power supply. can not be connected to the positive electrode. does not need to be connected to the power supply. it is connected with the gauge signal directlyEmpty oil level 240 ohmFull oil level 33ohmNote:We provide clear pictures. measurements where possible. Please check as much as possible to make sure the item is the one that you need.Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
Specification
Product name: Convex lens water level gauge with warning waterproof rustproof for marine yacht boat |

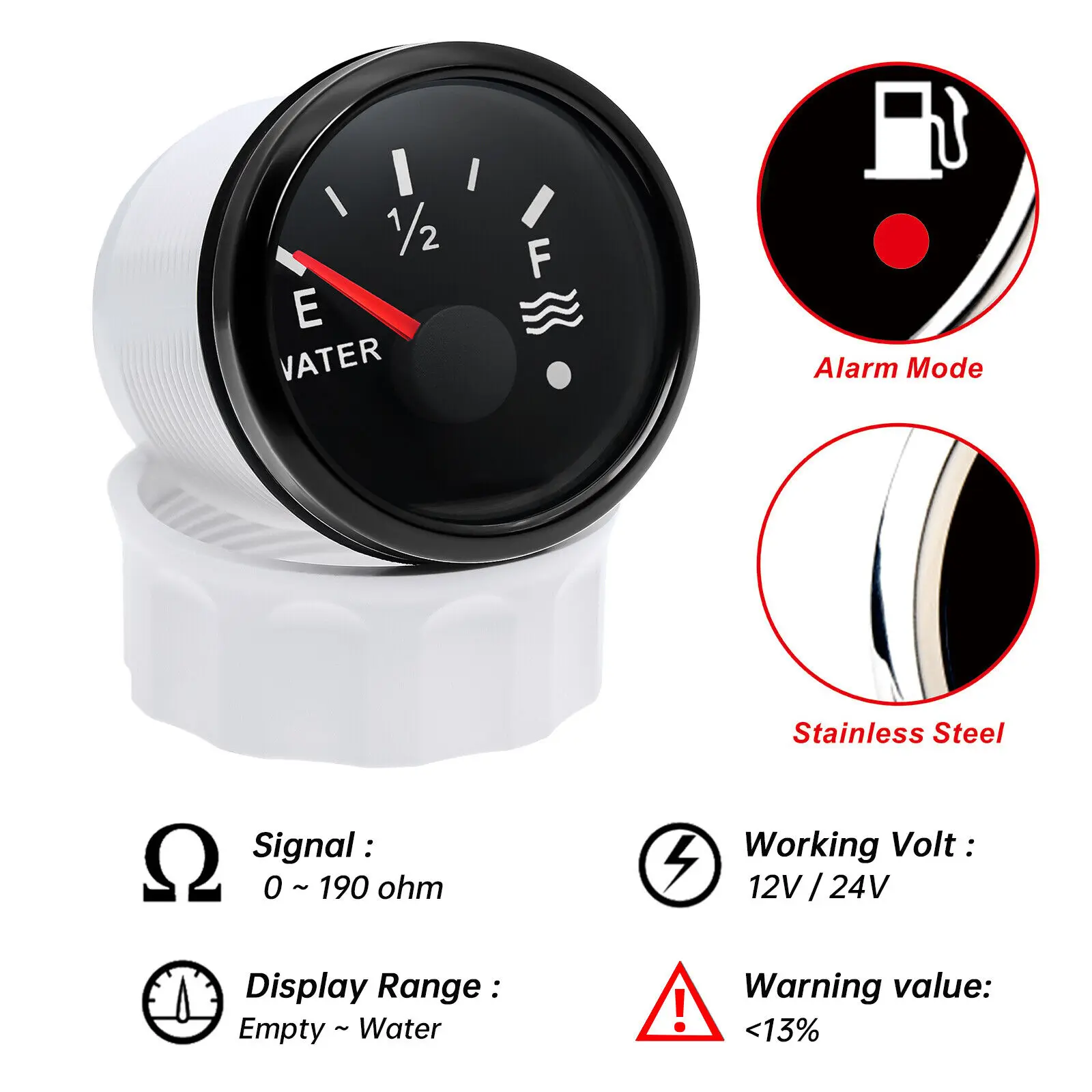

1.Fixing dimension: 52mm(2") 2.Indicating Range: E-1/2-FULL 3.Signal: 0-190ohm 4.Working Voltage: 9-32V(12V/24V) 5.Backlight: Redor Yellow available 6.Storage temperature:-40??-85?? 7.Excellent anti-fogging function 8.316 Stainless steel bezel with curved glass 9.Convenient Installation by multi-plug socket connecting way |
Delivery and shipping
Company Profile
Hemu group specializing in automobile meters. Our product line covers tachometers. water temperature gauges. oil temperature gauges. oil pressure gauges. vacuum gauges. boost gauges and speedometers.
Our products are exported to Europe.the US and other areas all over the world. The goal is to provide
high-quality. high-efficiency. low-cost. environment protection and technical support for our friends.
Our products are exported to Europe.the US and other areas all over the world. The goal is to provide
high-quality. high-efficiency. low-cost. environment protection and technical support for our friends.
FAQ
Q:1. Can I have a sample order?A: Yes. we welcome sample order to test and check the quality. Mixed samples are acceptable.Q:2. What about the lead time?A: 3-5 days for samples.Q:3. How do you ship the goods and how long does it take arrive?A: we often will ship by FEDEX. DHL.EMS.TNT and UPS etc. approximately 3-5 days. and will be different according to the destination. Airline and sea shipping is also optional.Q:4.How to proceed an order?A:Initially. let us know your requirements or application. Besides. We quote according to your requirements or our suggestions.Thirdly. customers confirms the samples and places deposit for formal order. Finally. We arrange the production.Q:5. How can I pay for the orders?A: Regard to payment.we can accept T/T.Western Union. Alipay.Q:6. Do you offer guarantee for the products?A: Yes. we offer 12 months for our products.Q:7.Do you test all your goods before delivery? A:Yes. we have 100% test before delivery.Q:8.Is there instruction installation?A: Yes. each gauge comes with instruction installation in the package.Q:9. How to contact us?A:Send your inquiry details in the below and click the "send"now.
If you have more questions. just contact us soon
