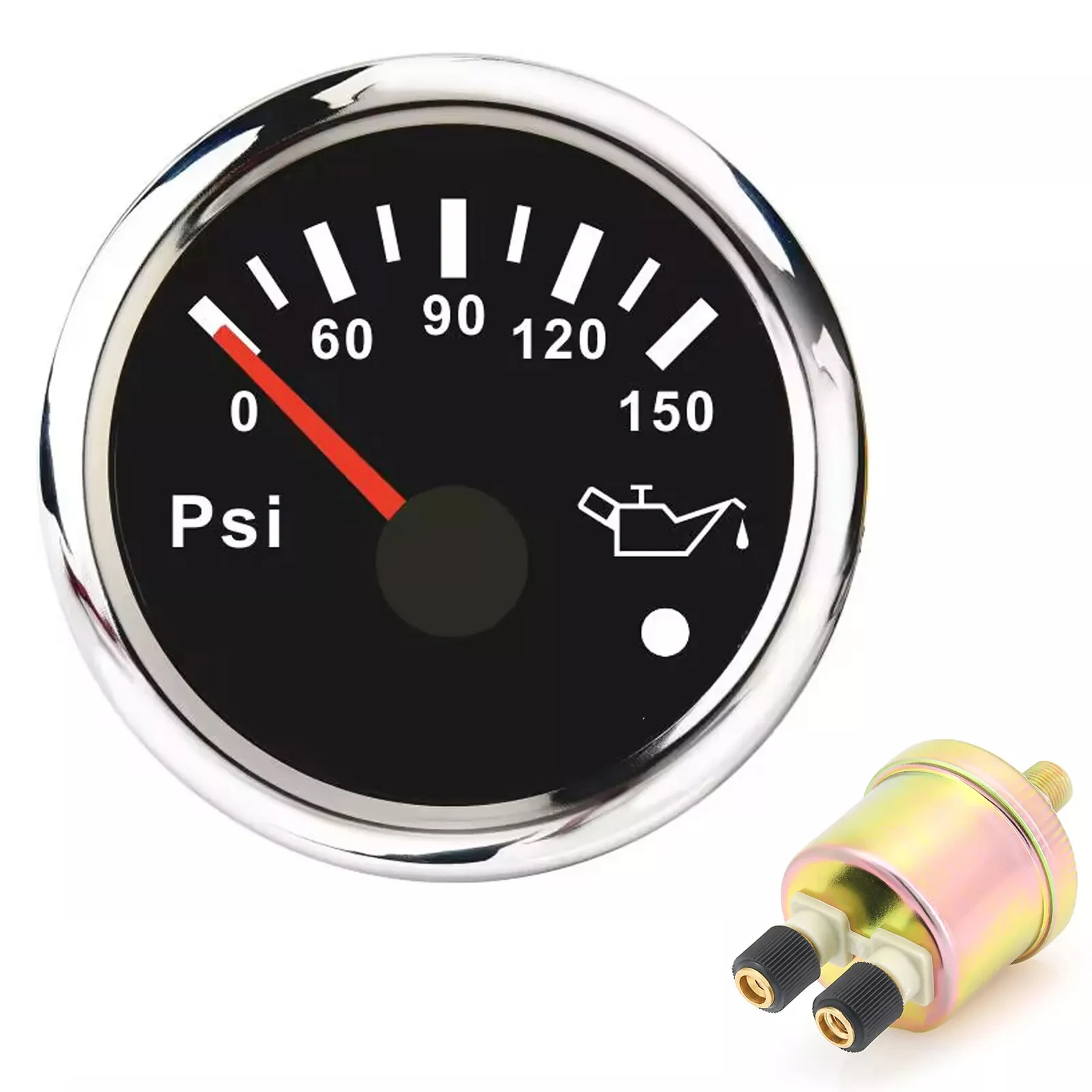

2'' 52MM Oil Pressure Gauge 0-150PSI 10-184ohms with Sensor for Car Marine Truck
Product Description
Specification
item | value |
Warranty | 12 Months |
Customized support | OEM |
Product Name | 2'' 52MM Oil Pressure Gauge 0-150PSI 10-184ohms with Sensor for Car Marine Truck |
Pressure range | 0-10bar/ 0-150PSI |
Size | 52mm |

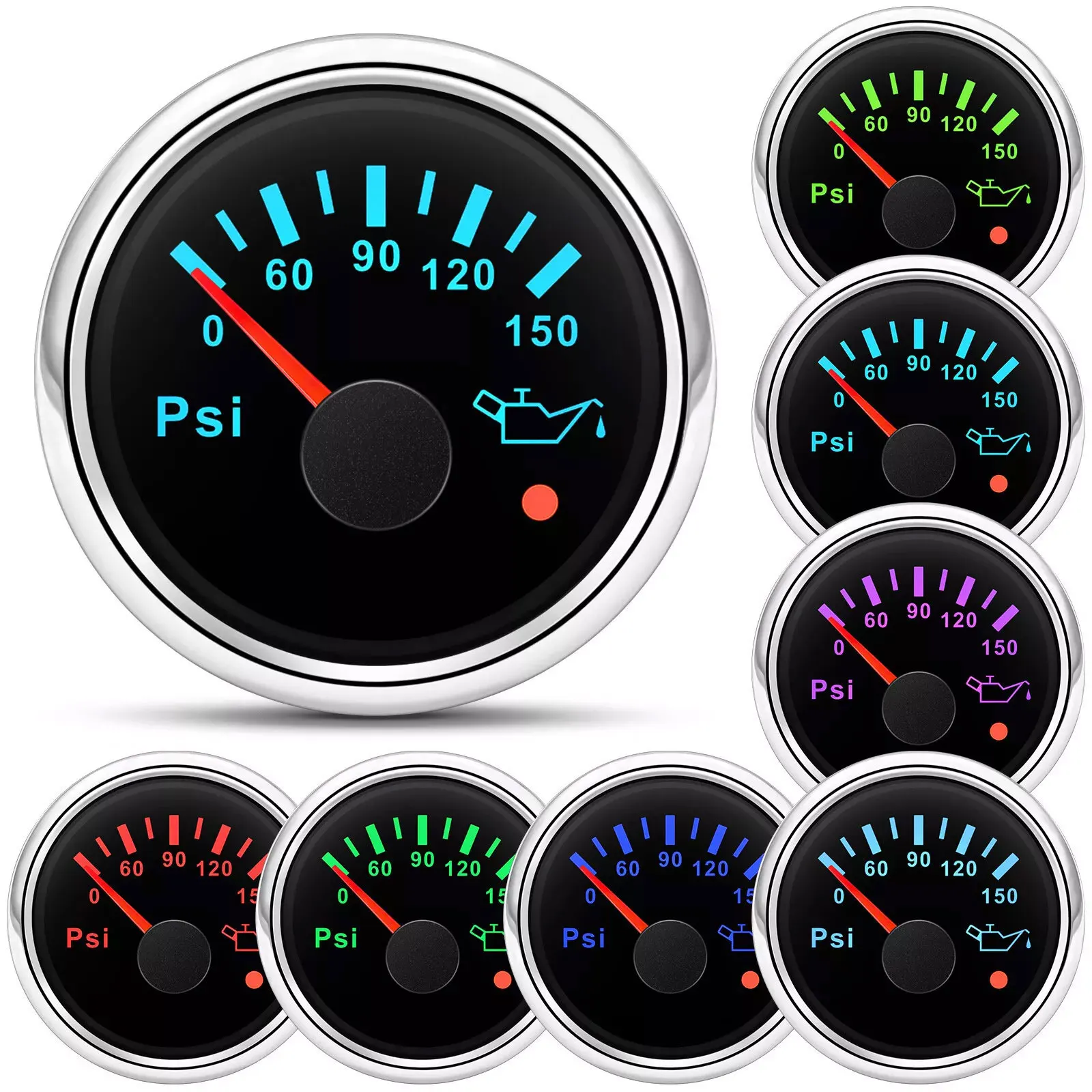

Color | 7 Colors |

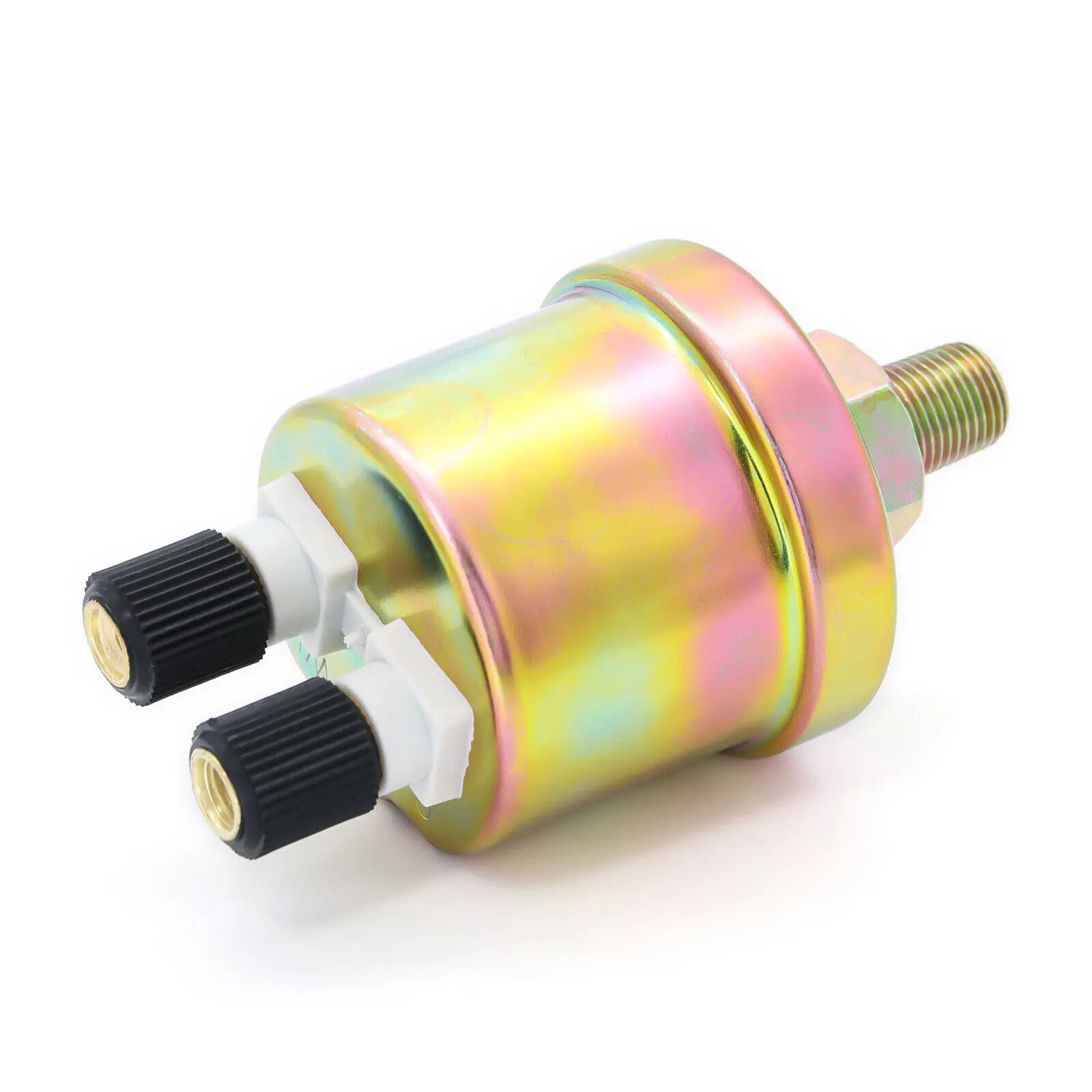

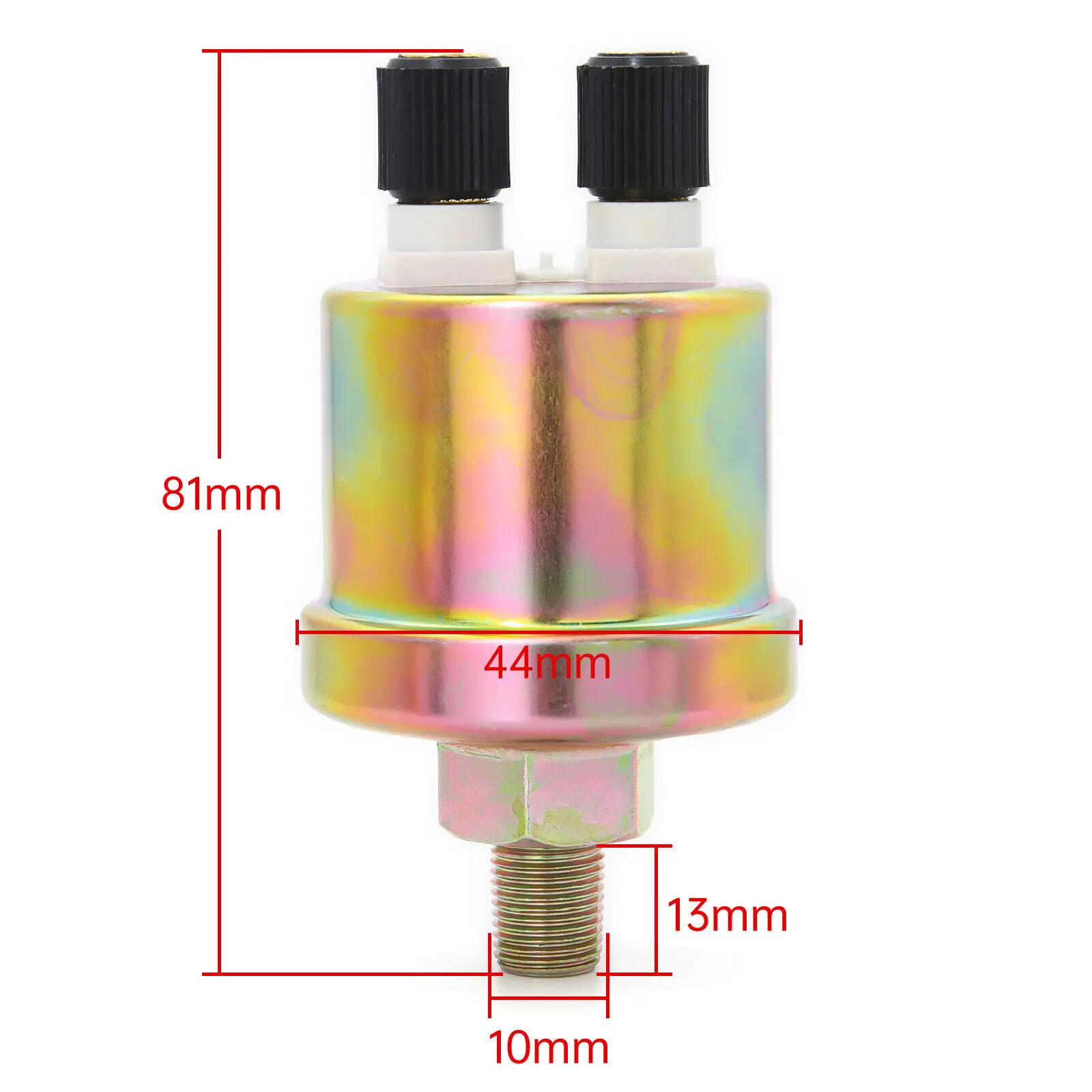

Description:Front cover is made of 316 stainless steel.IP67 waterproof and dustproof grade.With curved glass (with anti-fogging function).With ultra-wide working voltage design.PC material dial.The meter comes with an alarm signal and does not require an additional alarm signal from the sensor.Using a high-precision stepper motor. the pointer acceleration and deceleration curve motion can extend the life of the motor.High-brightness LEDs are used for backlighting. which has high brightness and long life.Specification:Dial:White&Silver Material: 316 Stainless SteelSize: 8x8x7cm / 3.1×3.1×2.75 inchWorking Temperature: -40~85??Protection Level: IP67Working Voltage: DC 8~16V. DC 18~32VOutput Signal: 10~185 ohmsWorking Current:<100mADisplay Accuracy:<3°Indicating Range: 0~5bar/0~73psi90° display angleColors:7 Colors LEDSensor Description:Operating voltage: 6~24VConducting power: < 5WOperating temperature: -25 ~120°C(120°C MAX 1H)Measuring range: 0~5BarAlarm: 0.8Bar or 1.4BarNPT-1/8(0-5BAR): 0.8bar alarmOutput signal: Standard resistance value: 10~184Ω

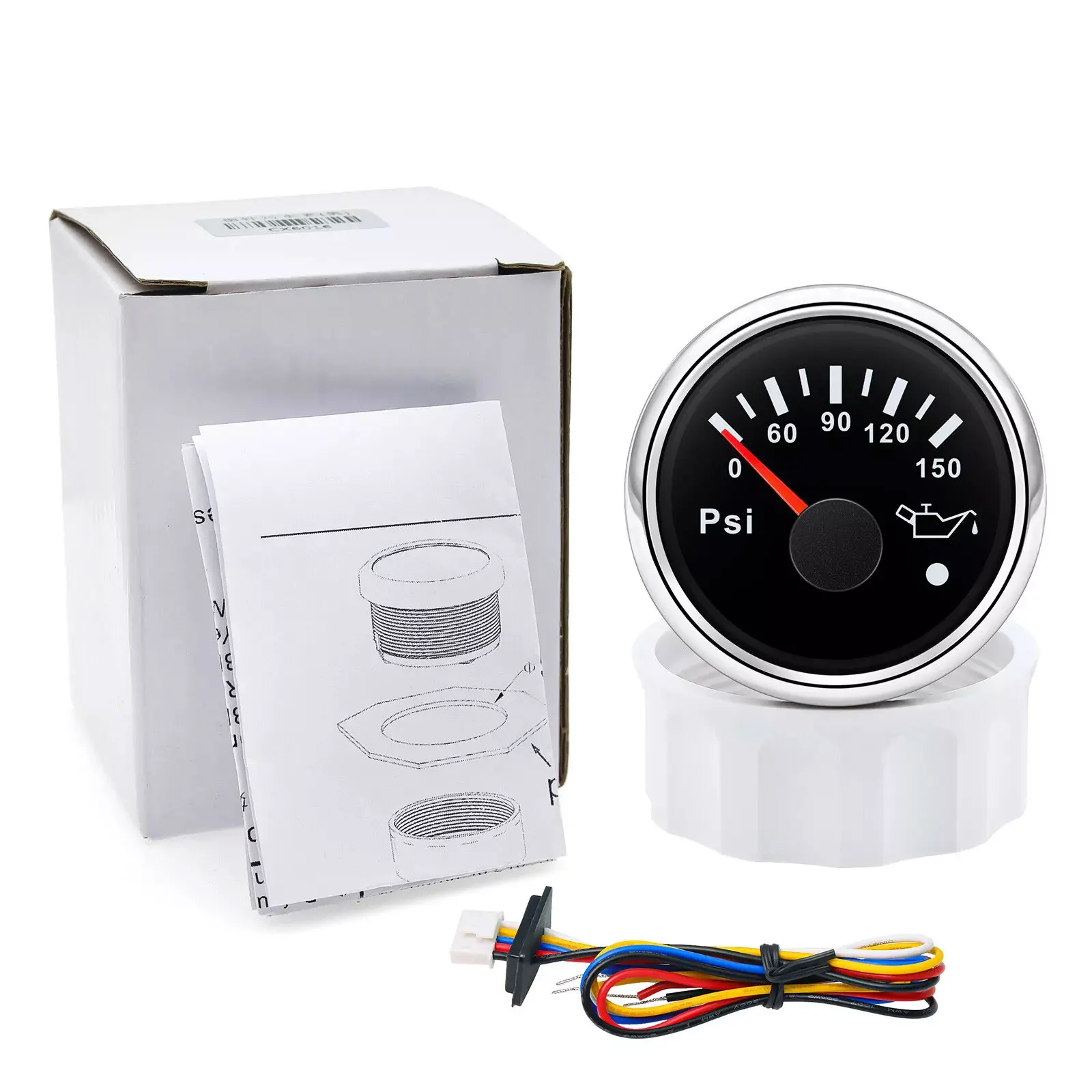

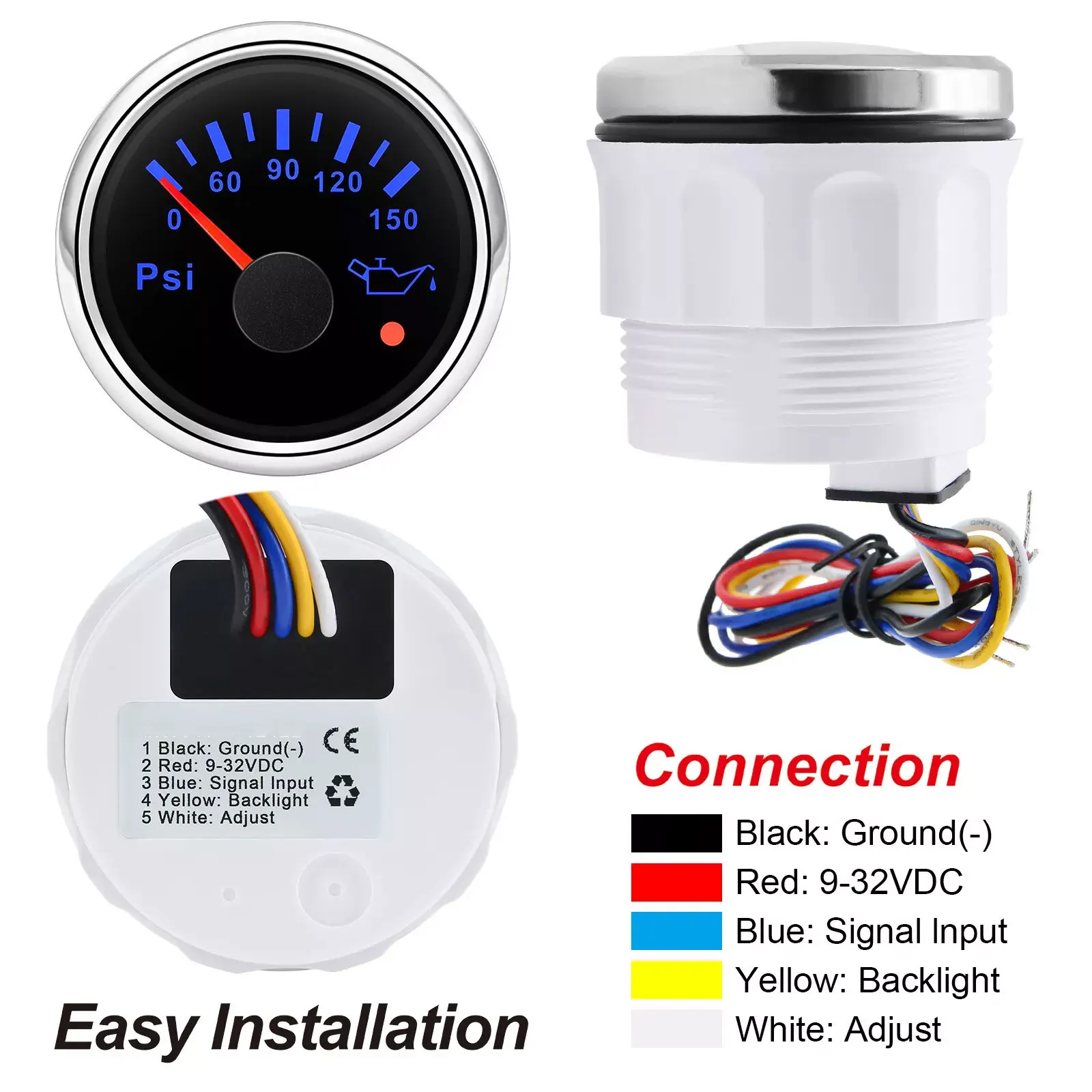

Sensor wiring: G-termination is conected to signal . WK termination is connnected to alarmPackage Includes:1 X Oil pressure gauge1 X Piece Cable1 X Piece Instruction Manual1 X Oil pressure sensor 1/8npt(if you need M10 sensor.please contact us)
Shipping
Package: Using standard export neutral packaging.Shipping : 1. By Couriers: DHL. UPS. FEDEX. TNT. EMS etc.2. By Air: Delivery from the Shanghai airport to customers’ destination city airport3. By Sea: Delivery from the Shanghai sea port
FAQ
Q:1. Can I have a sample order?A: Yes. we welcome sample order to test and check the quality. Mixed samples are acceptable.Q:2. What about the lead time?A: 3-5 days for samples.Q:3. How do you ship the goods and how long does it take arrive?A: we often will ship by FEDEX. DHL.EMS.TNT and UPS etc. approximately 3-5 days. and will be different according to the destination. Airline and sea shipping is also optional.Q:4.How to proceed an order?A:Initially. let us know your requirements or application. Besides. We quote according to your requirements or our suggestions.Thirdly. customers confirms the samples and places deposit for formal order. Finally. We arrange the production.Q:5. How can I pay for the orders?A: Regard to payment.we can accept T/T.Western Union. Alipay.Q:6. Do you offer guarantee for the products?A: Yes. we offer 12 months for our products.Q:7.Do you test all your goods before delivery? A:Yes. we have 100% test before delivery.Q:8.Is there instruction installation?A: Yes. each gauge comes with instruction installation in the package.Q:9. How to contact us?A:Send your inquiry details in the below and click the "send"now.
