110mm 4 in 1 Multifunction Fuel Level 240-33ohms Water Temp Oil Pressure Volt
Specification
Product name | 110mm 4 in 1 Multifunction Fuel Level 240-33ohms Water Temp Oil Pressure Volt |
Size | 110mm |

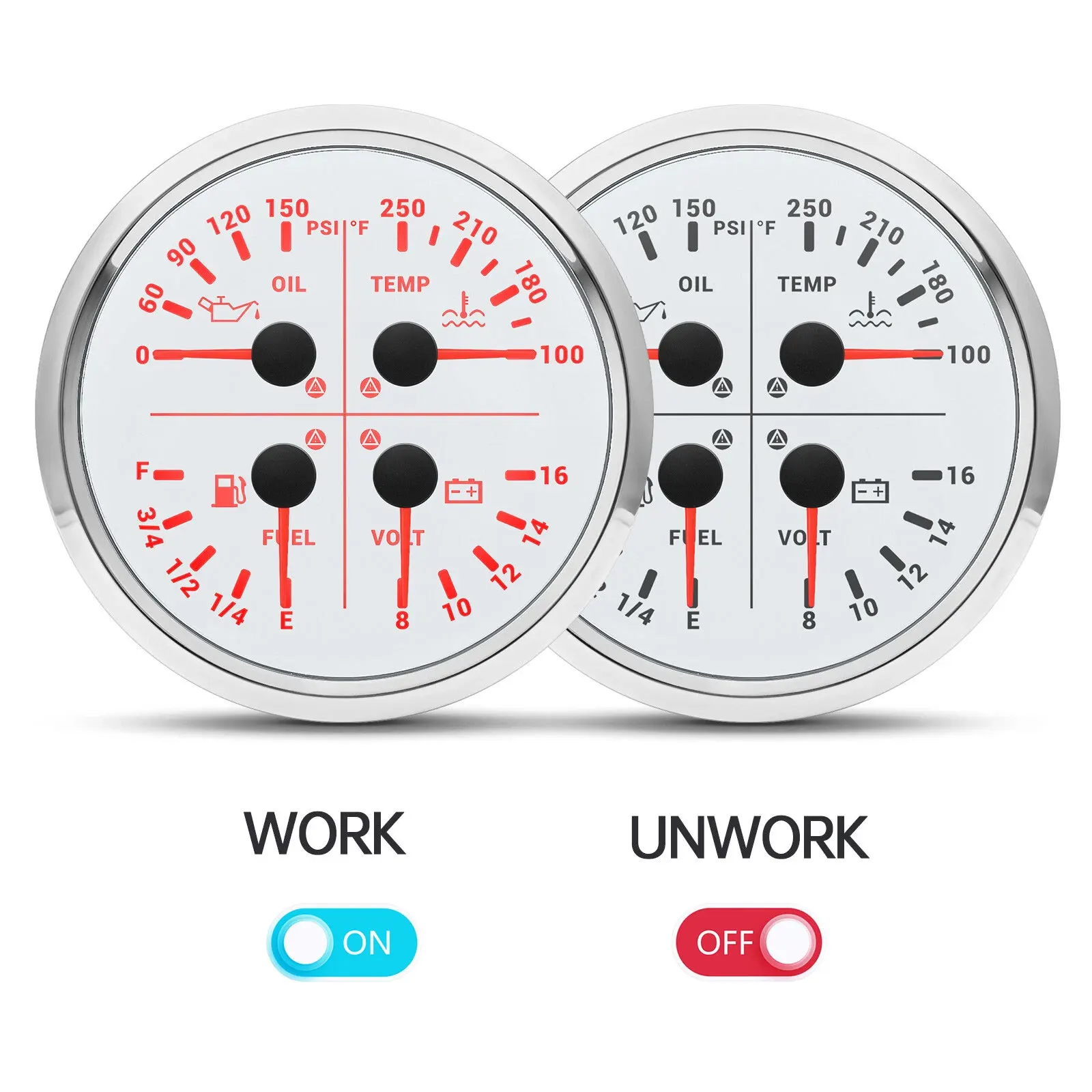

Backlight | Red |
Application | Fuel Level. Temp. Oil Pressure. Voltage Gauge |
Voltage | 8-16V |
Application | Universal |
Color | White/Black |
Warranty | 1 year |
Protection Range | IP67 |
Weight | 0.3kg |

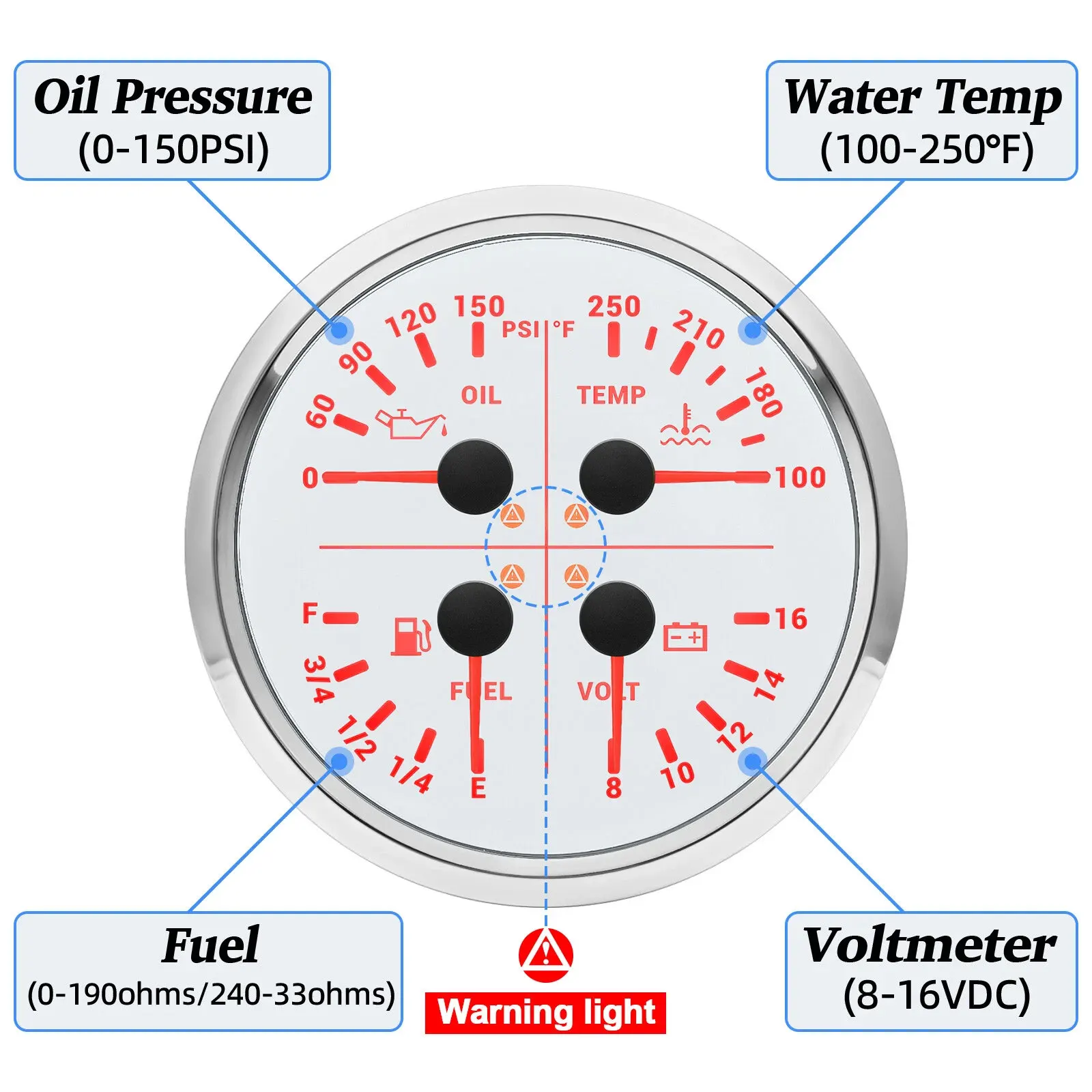

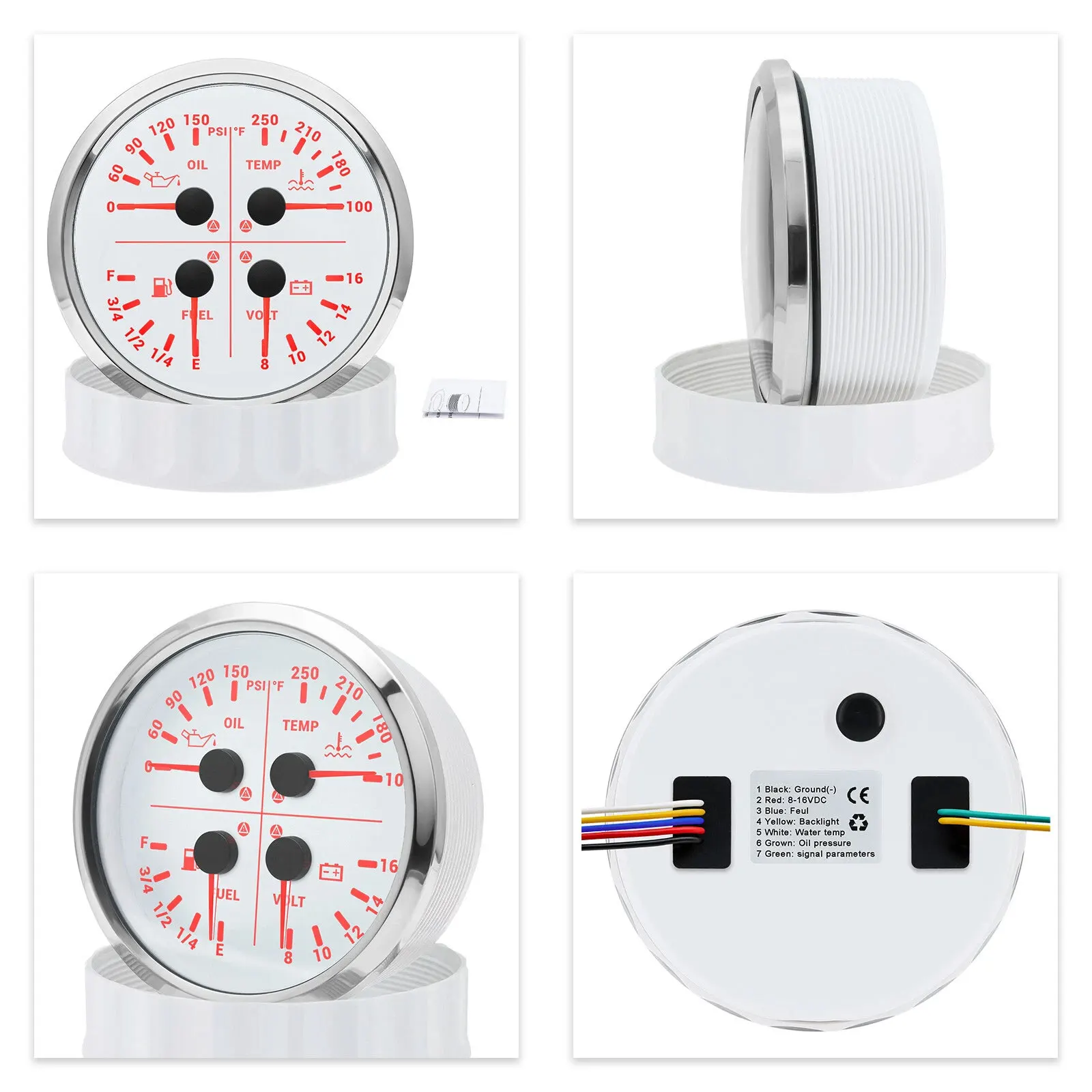

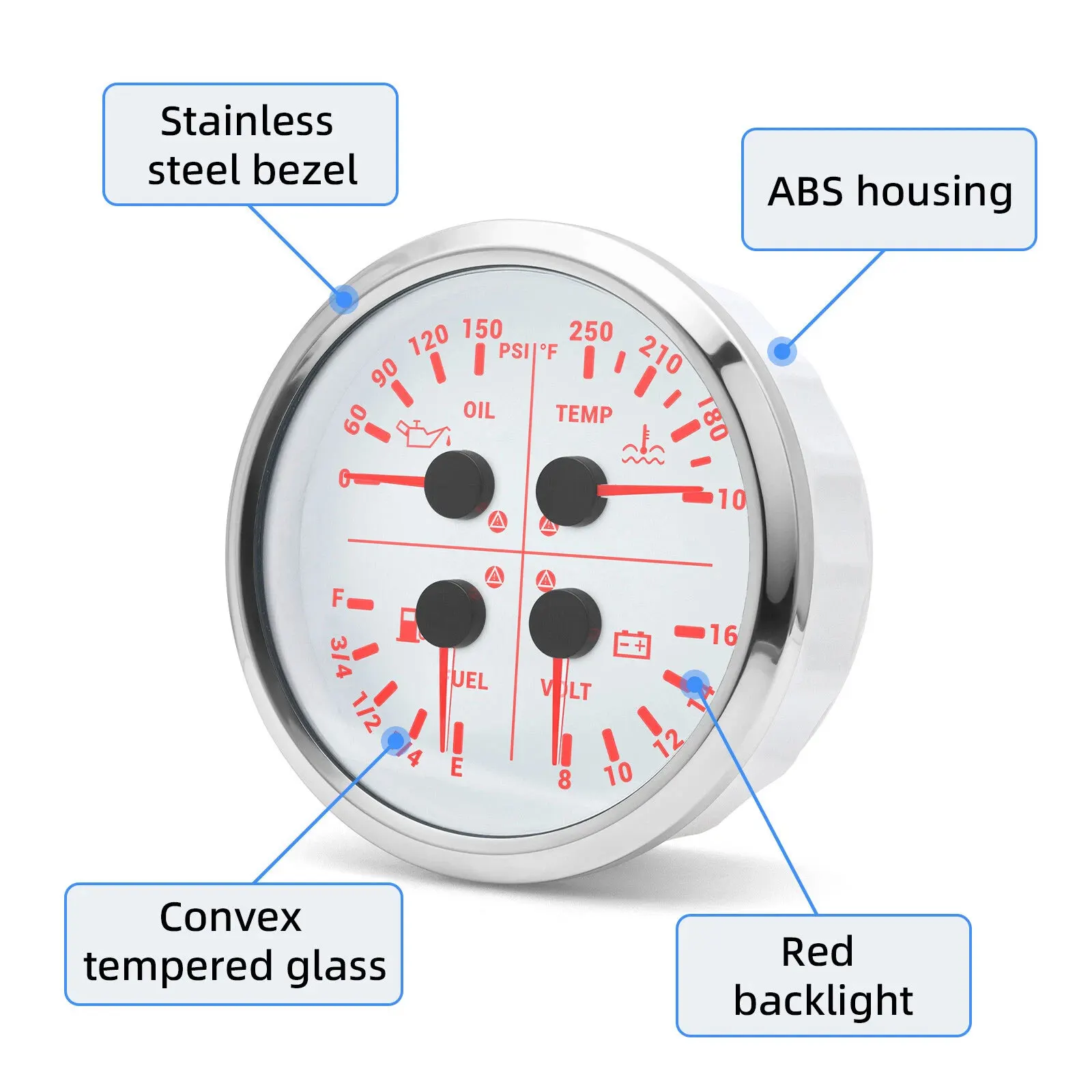

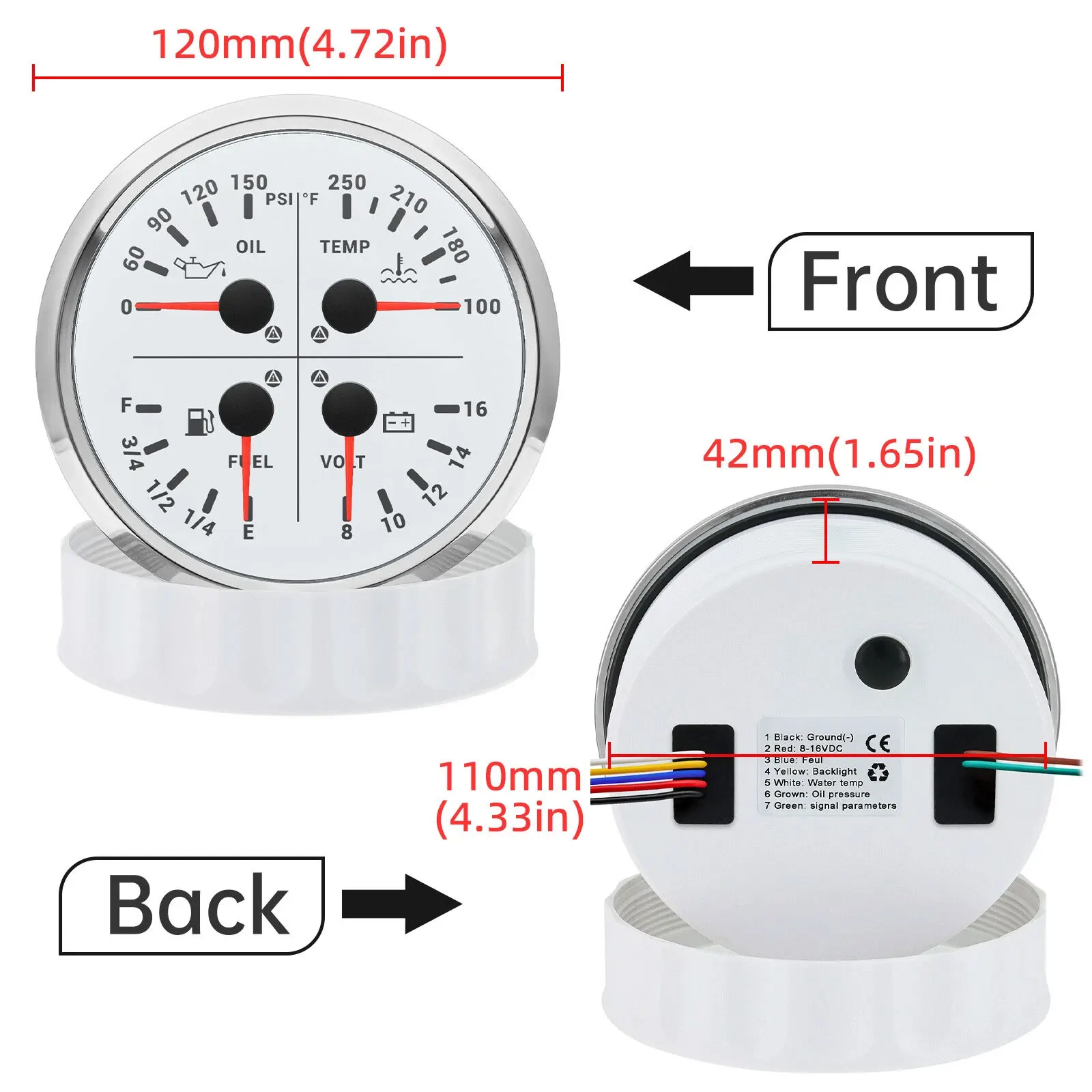

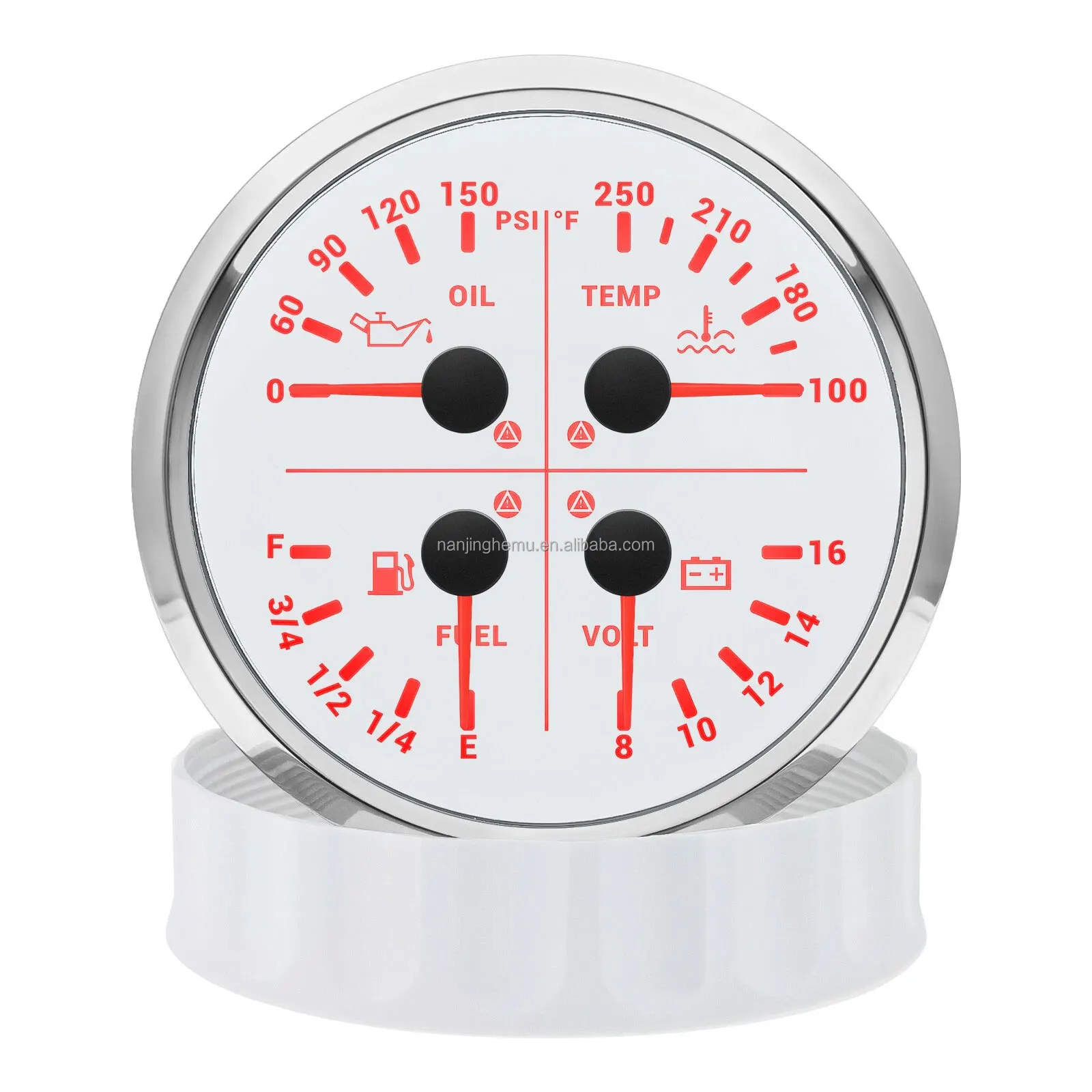

Features:Suitable for all vehicles and off-road vehiclesFuel Level / Oil Pressure / Volt & Water Temperature 4 In 1 Multi-Function Gauge.High Quality Stepper Motor Movement.Convex Clear Lens. 316 Stainless Steel Bezel & ABS Plastic Housing.White Gauge Faceplate. Red Needle.Red LED Illumination.IP67 Waterproof. Rustproof. Anti-Fog & UV-Resistant.Multi-Function Gauge Requires 12 Volt Negative Ground Systems.Most importantly. the gauge is easy to setup. and can be used in all vehicles. boats and off-road vehicles. Product Details:Installation Diameter: 110mm (4 3/8") Indicating Range: Oil press. meter: 0-150psi;Water temp. meter: 100-250° FFuel level meter: 0-190ohms/240-33ohms. empty-full; (The signal can be adjusted)Voltmeter: 8-16VWorking Voltage: 12VBacklight: RedInput Signal:10-184ohms for 0-150Psi oil pressure meter;0-100% for fuel level meter;(Default 0-190ohms. can adjust to 240-33ohms)8-16V voltage meter;Input Signal 301-22ohms for water temperature meterRed backlightProtection grade is IP67. the whole body is completely waterproof;Excellent antifogging function;316 Stainless steel bezel with curved glass;Convenient Installation by multi-plug socket connecting way;Accessories: matched with connectors. Installation InstructionConnectionBlack: Ground(-)Red: 9-32VDC(+)Blue:FuelYellow: BacklightWhite: Water tempGrown: Oil pressureGreen??Signal parameters(Can be adjusted 240-33ohms or 0-190ohmsPackage Included:1 x 110mm 4 in 1 Multifunctional Gauge1 x Cable1 x Installation Instruction
Delivery and shipping
Company Profile
Hemu group specializing in automobile meters. Our product line covers tachometers. water temperature gauges. oil temperature gauges. oil pressure gauges. vacuum gauges. boost gauges and speedometers.
Our products are exported to Europe.the US and other areas all over the world. The goal is to provide
high-quality. high-efficiency. low-cost. environment protection and technical support for our friends.
Our products are exported to Europe.the US and other areas all over the world. The goal is to provide
high-quality. high-efficiency. low-cost. environment protection and technical support for our friends.
FAQ
Q:1. Can I have a sample order?A: Yes. we welcome sample order to test and check the quality. Mixed samples are acceptable.Q:2. What about the lead time?A: 3-5 days for samples.Q:3. How do you ship the goods and how long does it take arrive?A: we often will ship by FEDEX. DHL.EMS.TNT and UPS etc. approximately 3-5 days. and will be different according to the destination. Airline and sea shipping is also optional.Q:4.How to proceed an order?A:Initially. let us know your requirements or application. Besides. We quote according to your requirements or our suggestions.Thirdly. customers confirms the samples and places deposit for formal order. Finally. We arrange the production.Q:5. How can I pay for the orders?A: Regard to payment.we can accept T/T.Western Union. Alipay.Q:6. Do you offer guarantee for the products?A: Yes. we offer 12 months for our products.Q:7.Do you test all your goods before delivery? A:Yes. we have 100% test before delivery.Q:8.Is there instruction installation?A: Yes. each gauge comes with instruction installation in the package.Q:9. How to contact us?A:Send your inquiry details in the below and click the "send"now.
