110mm 4 IN 1 Gauge Fuel Level 240-33ohm Oil Pressure Water Temp Volt Gauge
Product Description
Specification
Product Name | 110mm 4 IN 1 Gauge Fuel Level 240-33ohm Oil Pressure Water Temp Volt Gauge |
Backlight | Red |
Application | Boat Marine Car RV Truck |
Voltage | 12V/24V |
Application | Universal |
Warranty | 1 year |
Protection Range | IP67 |
Feature | Excellent water-proof design |

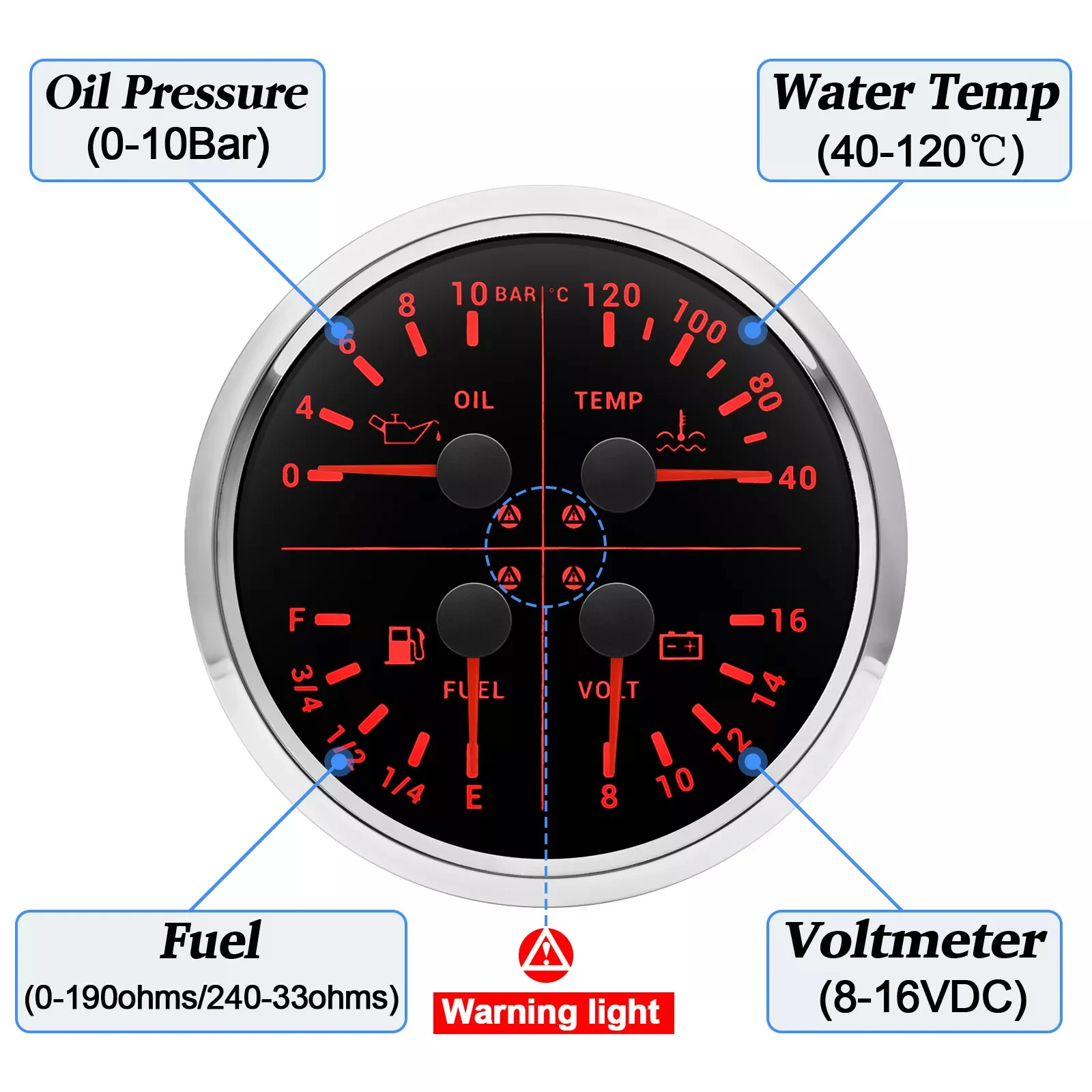

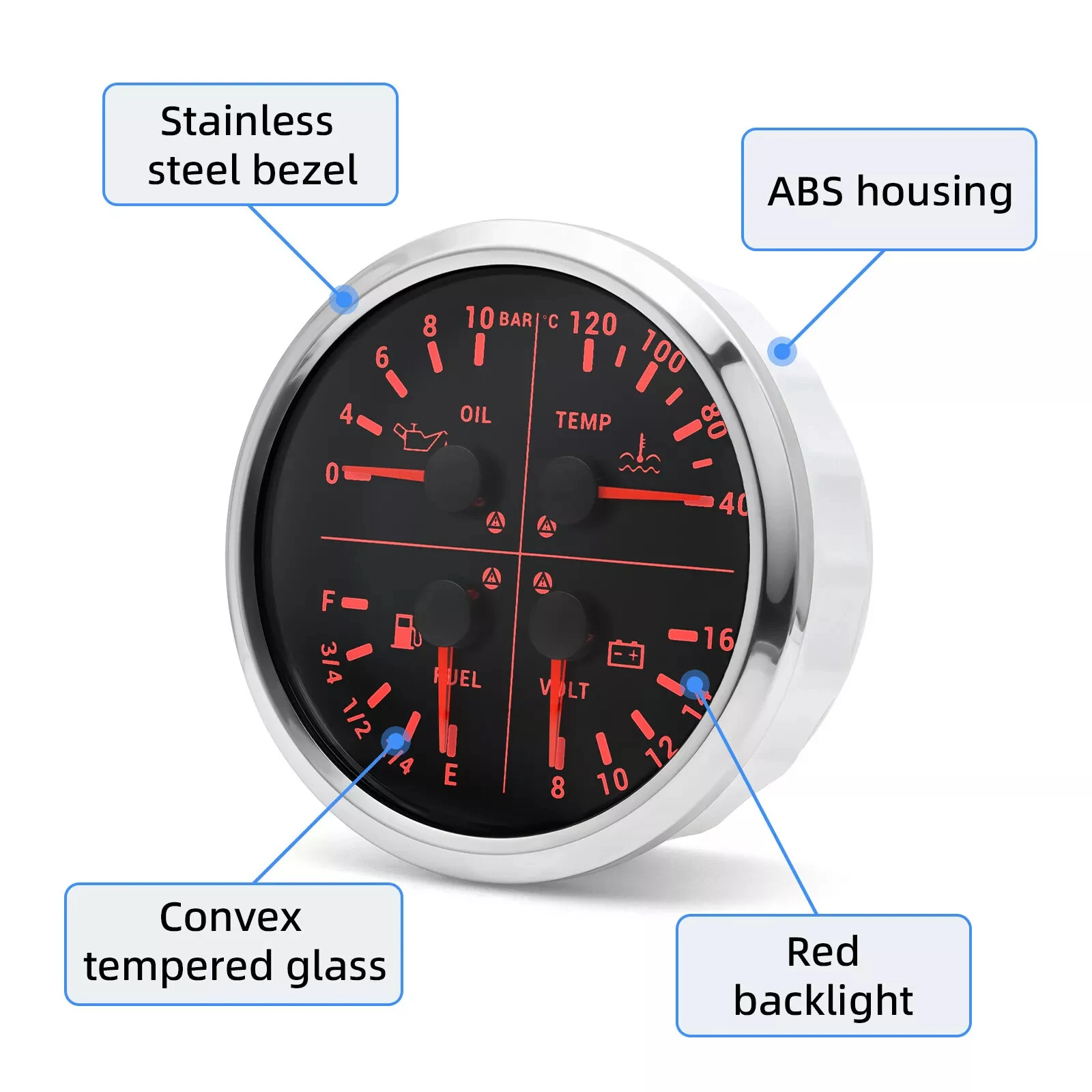

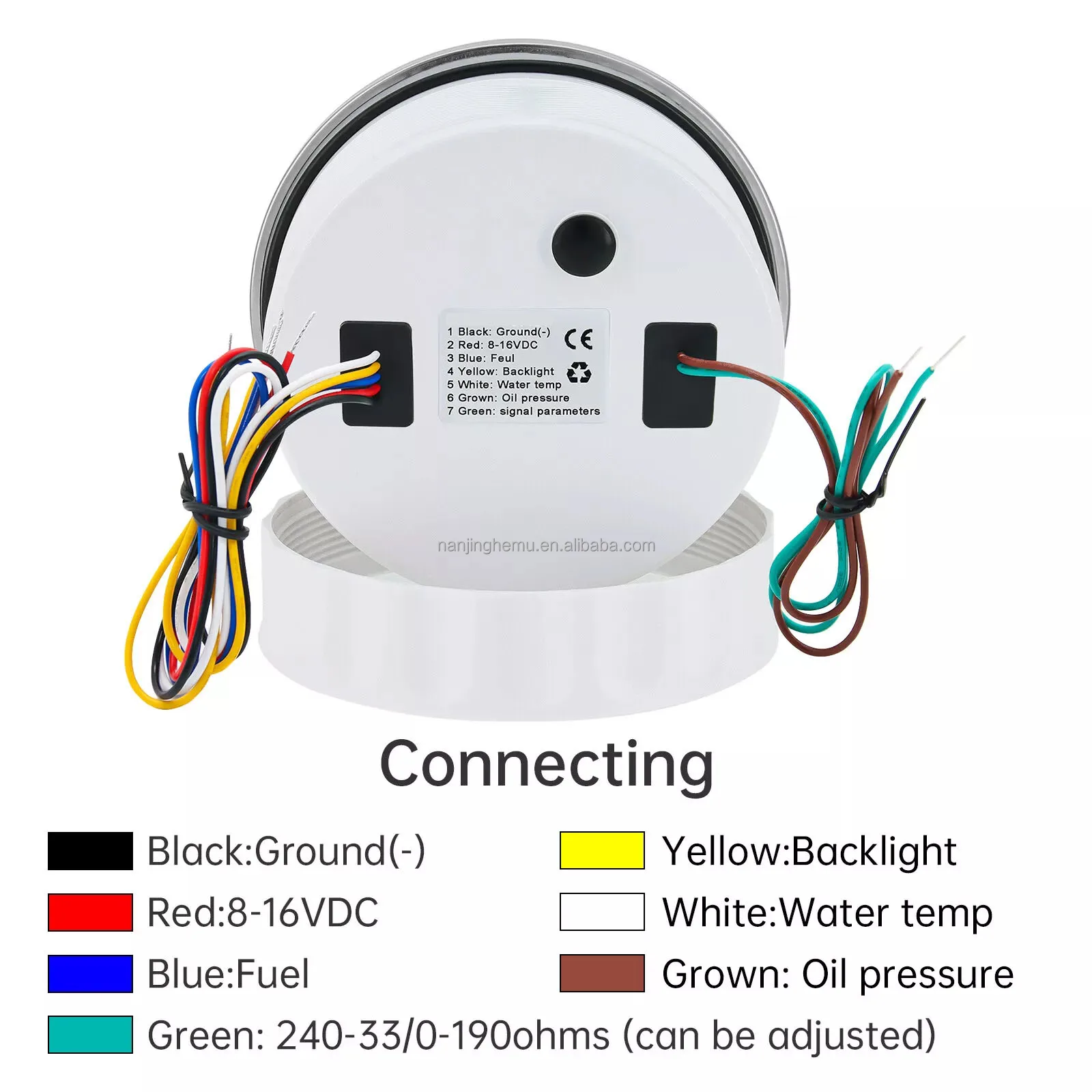

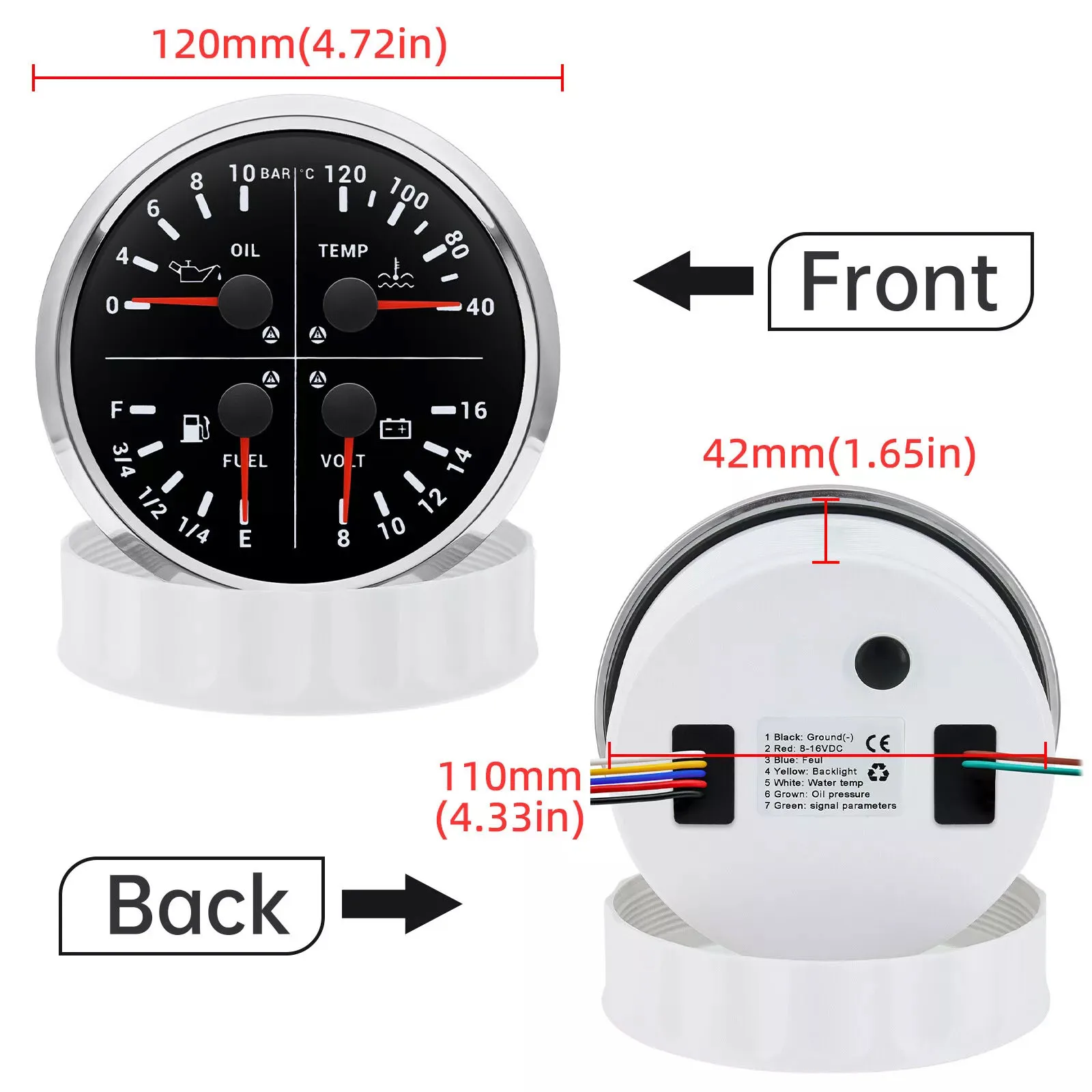

Features:Suitable for all vehicles and off-road vehiclesFuel Level / Oil Pressure / Volt & Water Temperature 4 In 1 Multi-Function Gauge.High Quality Stepper Motor Movement.Convex Clear Lens. 316 Stainless Steel Bezel & ABS Plastic Housing.White Gauge Faceplate. Red Needle.Red LED Illumination.IP67 Waterproof. Rustproof. Anti-Fog & UV-Resistant.Multi-Function Gauge Requires 12 Volt Negative Ground Systems.Most importantly. the gauge is easy to setup. and can be used in all vehicles. boats and off-road vehicles. Product Details:Installation Diameter: 110mm (4 3/8") Indicating Range: Oil press. meter: 0-10Bar;Water temp. meter: 40-120??Fuel level meter: 0-190ohms/240-33ohms. empty-full; (The signal can be adjusted)Voltmeter: 8-16VWorking Voltage: 12VBacklight: RedInput Signal:10-184ohms for 0-10Bar oil pressure meter;0-100% for fuel level meter;(Default 0-190ohms. can adjust to 240-33ohms)8-16V voltage meter;Input Signal 301-22ohms for water temperature meterRed backlightProtection grade is IP67. the whole body is completely waterproof;Excellent antifogging function;316 Stainless steel bezel with curved glass;Convenient Installation by multi-plug socket connecting way;Accessories: matched with connectors. Installation InstructionConnectionBlack: Ground(-)Red: 9-32VDC(+)Blue:FuelYellow: BacklightWhite: Water tempGrown: Oil pressureGreen: Signal parameters(Can be adjusted 240-33ohms or 0-190ohms Package Included:1 x 110mm 4 in 1 Multifunctional Gauge1 x Cable1 x Installation Instruction
Shipping
Package: Using standard export neutral packaging.Shipping : 1. By Couriers: DHL. UPS. FEDEX. TNT. EMS etc.2. By Air: Delivery from the Shanghai airport to customers’ destination city airport3. By Sea: Delivery from the Shanghai sea port
FAQ

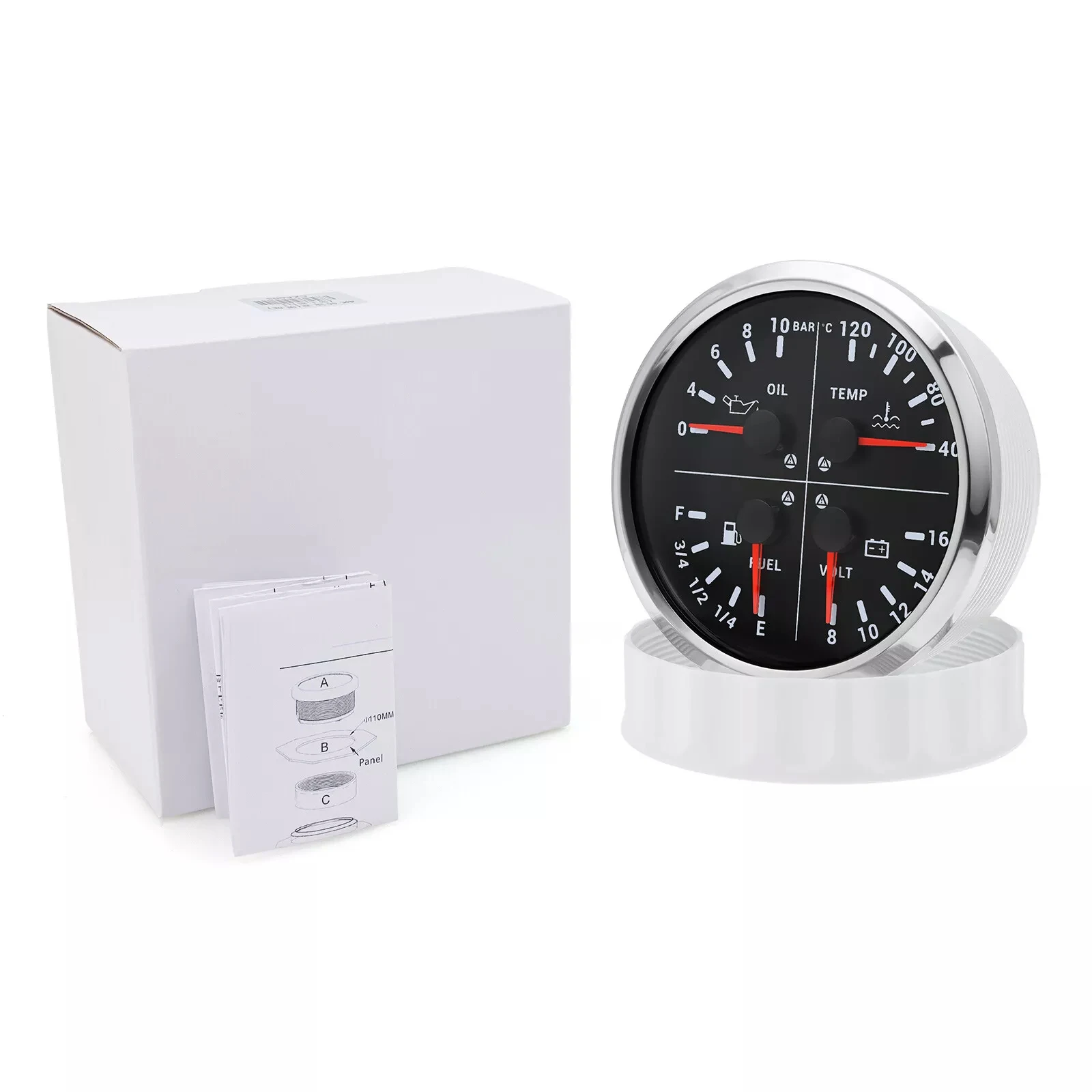

Q:1. Can I have a sample order?A: Yes. we welcome sample order to test and check the quality. Mixed samples are acceptable.Q:2. What about the lead time?A: 3-5 days for samples.Q:3. How do you ship the goods and how long does it take arrive?A: we often will ship by FEDEX. DHL.EMS.TNT and UPS etc. approximately 3-5 days. and will be different according to the destination. Airline and sea shipping is also optional.Q:4.How to proceed an order?A:Initially. let us know your requirements or application. Besides. We quote according to your requirements or our suggestions.Thirdly. customers confirms the samples and places deposit for formal order. Finally. We arrange the production.Q:5. How can I pay for the orders?A: Regard to payment.we can accept T/T.Western Union. Alipay.Q:6. Do you offer guarantee for the products?A: Yes. we offer 12 months for our products.Q:7.Do you test all your goods before delivery? A:Yes. we have 100% test before delivery.Q:8.Is there instruction installation?A: Yes. each gauge comes with instruction installation in the package.Q:9. How to contact us?A:Send your inquiry details in the below and click the "send"now.
If you have more questions. just contact us soon
